Manual for connection and operation of the GIR 230 NS
Page 1 of 14
Manual for connection and operation of
GIR 230 NS
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GIR 230 NS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GREISINGER GIR 230 NS

Summary of Contents for GREISINGER GIR 230 NS

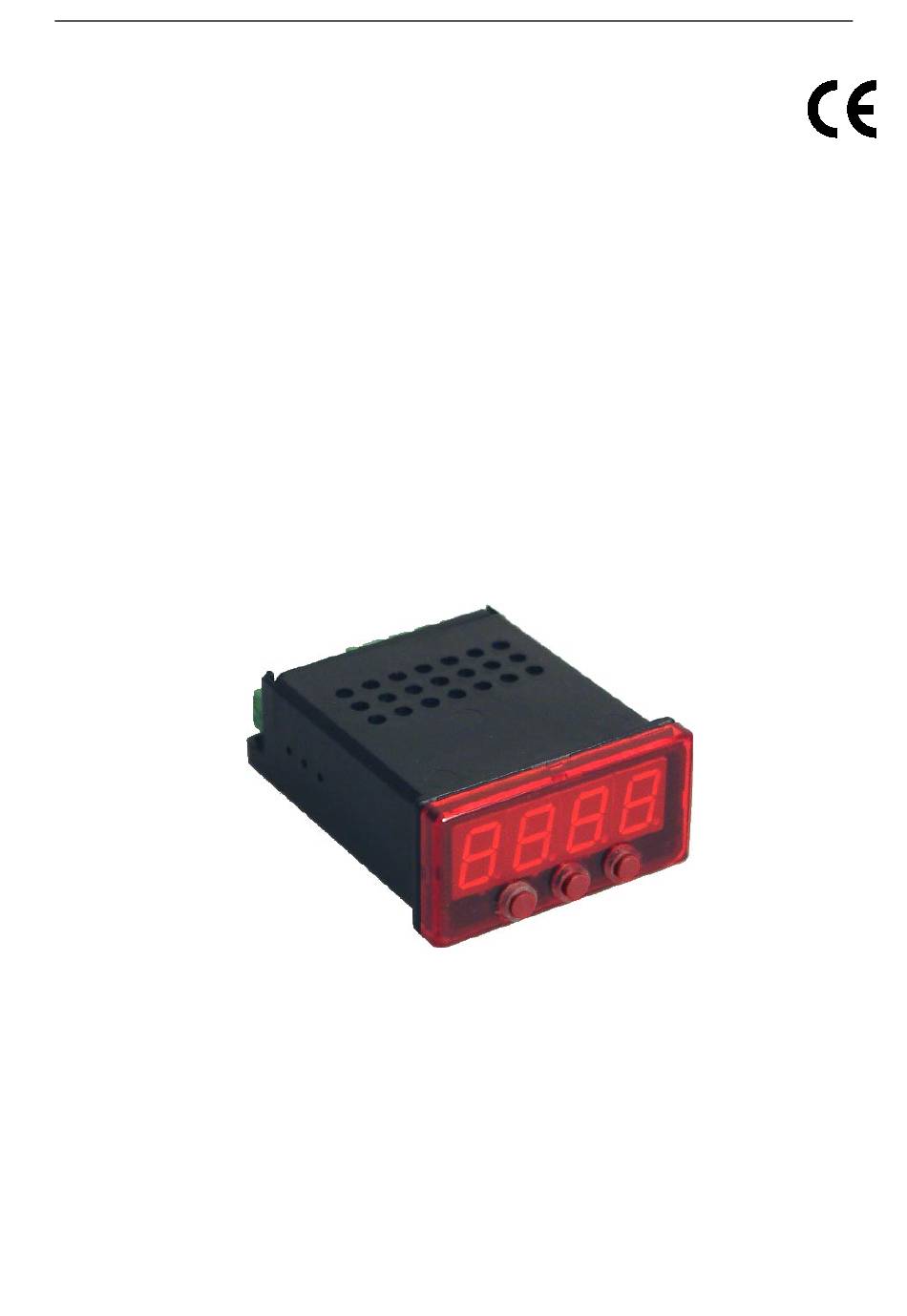

  • Page 1 E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 1 of 14 Manual for connection and operation of GIR 230 NS Version 1.0...

  • Page 2: Table Of Contents

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 2 of 14 Index 1. SAFETY REGULATIONS ............................3 2. INTRODUCTION ................................ 4 3. ELECTRICAL CONNECTION..........................4 3.1. Terminal assignment..............................4 3.2. Connection data ............................... 4 3.3. Connecting an input signal............................5 3.3.1.

  • Page 3: Safety Regulations

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 3 of 14 1. Safety regulations This device was designed and tested considering the safety regulations for electronic measuring devices. Faultless operation and reliability in operation of the measuring device can only be assured if the General Safety Measures and the devices specific safety regulations mentioned in this users manual are considered.

  • Page 4: Introduction

    Manual for connection and operation of the GIR 230 NS Page 4 of 14 2. Introduction The GIR 230 NS is a microprocessor controlled displaying, monitoring and controlling device. The device is supporting one universal interface for the connection of: - Standard transmitter signal 0 – 10 V, - Standard transmitter signal 0 (4) –...

  • Page 5: Connecting An Input Signal

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 5 of 14 3.3. Connecting an input signal Please take care not to exceed the limitations of the inputs when connecting the device as this may lead to destruction of the device.

  • Page 6: Configuration Of The Device

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 6 of 14 4. Configuration of the device Please note: When you are configuring the device and don’t press any button for more than 60 sec. the configuration of the device will be cancelled. The changes you made will not be saved and will be lost! Hint: The buttons 2 and 3 are featured with a ‘roll-function‘.

  • Page 7: Selection Of The Output Function

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 7 of 14 Press button 1 to validate the selection, the display shows “Li“ again. When pressing button 1 again, the display will show “FiLt“ (Filter = digital filter).

  • Page 8: Switchpoints Resp. Alarm-Boundaries

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 8 of 14 In case you selected a 3-point-controller you have to make the following settings similar to the settings you already made for output 1: “2.dEL“ (delay of output 2), “2.Err“ (preferred state of output 2).

  • Page 9: 2-Point-Controller With Alarm Function, 3-Point-Controller With Alarm Function

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 9 of 14 Press button 1 The device will be displaying “2.on“ (turn-on-point of output 2). (when not already done). Use button 2 and button 3 to set the desired value, the device’s output 2 should be turning on.

  • Page 10: Minimum/Maximum-Alarm

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 10 of 14 5.3. Minimum/maximum-alarm This chapter describes how to configure the device‘s alarm boundaries for min-/max-alarm-monitoring. This instruction demands that you selected “AL“ as your desired output function.

  • Page 11: Offset- And Slope-Adjustment

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 11 of 14 6. Offset- and slope-adjustment The offset and slope-adjustment function can be used for compensating the tolerance of the used sensor, resp. for vernier adjustment of the used transducer or transmitter.

  • Page 12: Error Codes

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 12 of 14 8. Error codes When detecting an operating state which is not permissible, the device will display an error code. The following error codes are defined: Err.1:...

  • Page 13: Specification

    E33.0.01.6C-03 Manual for connection and operation of the GIR 230 NS Page 13 of 14 9. Specification Absolute maximum ratings: Performance data Limit values Connection Remark between min. max. min. max. 207 V 244 V 253 V Supply voltage 3 and 4...
