- Page 1 Quick reference guide G 1110 barometer | altimeter...
-
Page 2: Table Of Contents
G 1110 Table of contents Table of contents About this documentation ............3 Purpose of the document ..............3 Legal notices .................. 3 Further information ................. 3 Safety ..................4 Explanation of safety symbols ............4 Foreseeable misuse ............... 4 Safety instructions ................ -
Page 3: About This Documentation
G 1110 Table of contents Error and system messages ..........15 Technical data ............... 16 Service ................... 18 Manufacturer ................18 About this documentation Purpose of the document – This document is intended as a quick reference option. – It does not replace the operating manual. -
Page 4: Safety
2 | Safety G 1110 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 5: Safety Instructions
G 1110 Safety | 2 Safety instructions NOTE This product does not belong in children's hands! Intended use The device measures the absolute pressure in the air. The ambient pressure is measured directly via the integrated sensor. Pressure equali- sation between the unit and the environment takes place via a water-impermeable membrane on the front side. -
Page 6: The Product At A Glance

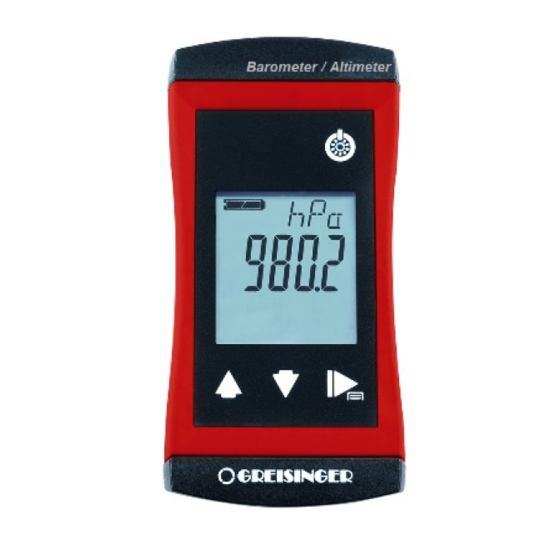

3 | The product at a glance G 1110 The product at a glance The G 1100 barometer series Top view LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information... -
Page 7: Operating Elements
G 1110 The product at a glance | 3 Operating elements On / Off button Press briefly Switch on the product Activate / deactivate lighting Long press Switch off the product Reject changes in a menu Up / Down button... -
Page 8: Operation
G 1110 4 | Operation Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Display unit UN,T Barometer in [hPa]... - Page 9 G 1110 Operation | 4 Measuring rate RATE Selection of the measurement speed Slow FAST Fast (not recommended for altimeter display) Nautical norm correction SEA.L Inactive, display measured air pressure directly Active, display air pressure compensated to sea level ALT, -500 ..
-
Page 10: Open The Adjustment Menu
G 1110 4 | Operation With activated TEND – display additionally: TEND Trend value Temperature in °C and trend value °(.TE Temperature in °F and trend value °F.TE Temperature in °C, trend value and air pressure °(.P.T (only available at altimeter display units) Temperature in °F, trend value and air pressure... -
Page 11: Measurement Basics
G 1110 Measurement Basics | 5 Measurement Basics Special functions With the special functions that can be selected via the Configuration menu, the device can be optimised for special measuring tasks. After it is switched on, the device starts up in standard measuring mode, the relevant special function is started by pressing and holding the Function key for 4 s. -
Page 12: Use Of The Trend Indicator
G 1110 5 | Measurement Basics Use of the trend indicator 5.2.1 Meteorology: weather forecasting Observation of variable weather conditions by assessing the rate of change of air pressure. To do this, set the device to: UN,T (international standard) FVNC... -
Page 13: Hiking, Cycling, Flying, Motor Sports: Use As A Variometer
G 1110 Measurement Basics | 5 5.2.2 Hiking, cycling, flying, motor sports: use as a variometer A variometer or inclinometer indicates the change in altitude per unit of time, i.e. the rate of ascent or descent. Common units are [ft/min] or [m/s] for flight and motor sports, or [m/h] for example in hiking/running. -
Page 14: Operation And Maintenance
6 | Operation and maintenance G 1110 Operation and maintenance Battery 6.1.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. However, the device will still operate for a certain length of time. -
Page 15: Error And System Messages
G 1110 Error and system messages | 7 Error and system messages Display Meaning Possible causes Remedy ---- Calculation not Measurement data Waiting for data collection possible acquisition is run- ning No display, Battery depleted Battery depleted Replace battery unclear... -
Page 16: Technical Data
G 1110 8 | Technical data Technical data Measuring range Barometer 300,0 .. 1100,0 hPa (mbar) abs. 4,350 .. 15,950 PSI abs. 225,0 .. 825,0 mmHg (Torr) abs. Altimeter -500,0 .. 9000,0 m -1640 .. 19999 ft. Temperature -20,0 .. 50,0 °C -4,0 .. - Page 17 G 1110 Technical data | 8 Calibration Zero point and gradient adjustment Housing Break-proof ABS housing Protection rating IP67 Dimensions 108 * 54 * 28 mm without pressure connector L*W*H [mm] and 140 g, incl. battery weight Operating conditions -20 to 50 °C;...
-
Page 18: Service
Service Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 18 / 18...
