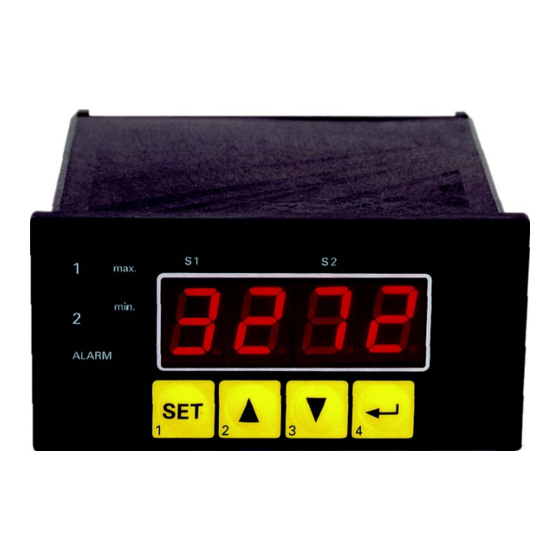

GREISINGER GIA 2000 Manual For Connection And Operation
  1. Manuals
  2. Brands
  3. GREISINGER Manuals
  4. Measuring Instruments
  5. GIA 2000
  6. Manual for connection and operation

GREISINGER GIA 2000 Manual For Connection And Operation

Hide thumbs

Advertisement

Quick Links

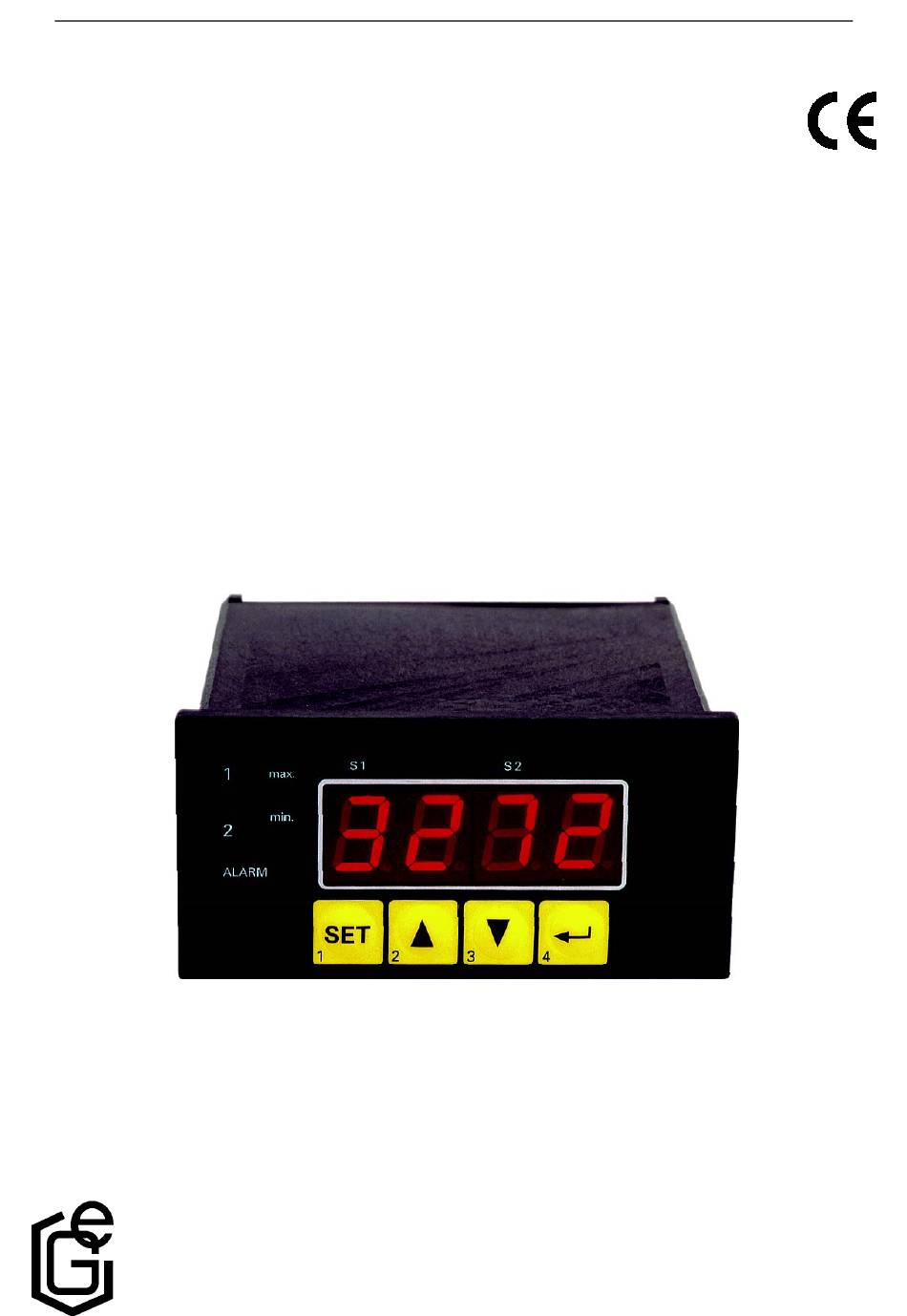

Manual for connection and operation of the GIA 2000 and GIR 2002
E32.0.02.6C-07
page 1 of 36
Manual for connection and operation of
GIA 2000 / GIR 2002
as of version 2.3
GREISINGER
electronic GmbH

Advertisement

loading
Need help?

Need help?

Do you have a question about the GIA 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for GREISINGER GIA 2000

Summary of Contents for GREISINGER GIA 2000

  • Page 1 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 1 of 36 Manual for connection and operation of GIA 2000 / GIR 2002 as of version 2.3 GREISINGER electronic GmbH...

  • Page 2: Table Of Contents

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 2 of 36 I N D E X 1. SAFETY REGULATIONS ............................3 2. INTRODUCTION ................................ 4 3. ELECTRIC CONNECTION ............................5 3.1. Terminal assignment..............................5 3.2.

  • Page 3: Safety Regulations

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 3 of 36 1. Safety regulations This device was designed and tested considering the safety regulations for electronic measuring devices. Faultless operation and reliability in operation of the measuring device can only be assured if the General Safety Measures and the devices specific safety regulations mentioned in this users manual are considered.

  • Page 4: Introduction

    EASY -module. When leaving our factory the GIA 2000 and GIR 2002 has been subjected to various inspection tests and is completely calibrated. Before the GIA 2000 or GIR 2002 can be used, it has to be configured for the cus- tomer’s application.

  • Page 5: Electric Connection

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 5 of 36 3. Electric Connection Wiring and commissioning of the device must be carried out by skilled personnel only. In case of wrong wiring the device may be destroyed. We can not assume any warranty in case of wrong wiring of the device.

  • Page 6: Connection Data

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 6 of 36 3.3. Connection data typical limitations between notes terminals min. max. min. max. or corresponding des- 207 V 244 V 253 V ignation on the type...

  • Page 7: Connecting An Input Signal

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 7 of 36 3.4. Connecting an input signal Please take care not to exceed the limitations of the inputs when connecting the device as this may lead to destruction of the device.

  • Page 8: Connecting A 0-1V, 0-2V Or 0-10V Transmitter (3-Wire-System)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 8 of 36 3.4.5. Connecting a 0-1V, 0-2V or 0-10V transmitter (3-wire-system) 0-1(10)V 0-1(10)V Sig. Sig. transmitter transmitter 1V / 2V 1V / 2V power supply:...

  • Page 9: Connecting A Counter Signal

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 9 of 36 transducer transducer Sig. Sig. power supply: for transducer Connection of a transducer (with integrated supply) Connection of a transducer (with separate supply) with NPN output and necessary external resistor with NPN output and necessary external resistor Hint: Rv = 3kΩ...

  • Page 10: Connecting Switching Outputs (Only For Gir 2002)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 10 of 36 3.5. Connecting switching outputs (only for GIR 2002) Hint: In order to avoid unwanted or wrong switching processes, we suggest to connect the device’s switching outputs after you have configured the device’s switching outputs...

  • Page 11: Selecting An Input Signal Type

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 11 of 36 4.1. Selecting an input signal type Turn the device on and wait until it completed its built-in seg- ment test. At the same time press the pushbutton on the rear side (but- Alarm ton 5) and button 2 for >2 seconds.

  • Page 12: Measuring Temperature (Pt100, Pt1000 Rtd Probes And Thermocouple Type J, K, N, S Or T)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 12 of 36 4.2. Measuring temperature (Pt100, Pt1000 RTD probes and thermocouple type J, K, N, S or T) This chapter describes how to configure the device for temperature measuring with the help of external plati- num RTD probes or thermocouple probes.

  • Page 13: Measuring Voltage And Current (0-50Mv, 0-1V, 0-2V, 0-10V, 0-20Ma, 4-20Ma)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 13 of 36 4.3. Measuring voltage and current (0-50mV, 0-1V, 0-2V, 0-10V, 0-20mA, 4-20mA) This chapter describes how you configure the device for measuring voltage- or current-signals from an ex- ternal transmitter.

  • Page 14: Measuring Of Frequency (Ttl, Switching-Contact)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 14 of 36 device will always be displaing the corresponding error message (“Err.2“), if the input signal 4-20mA is chosen. A shortfalling of 0V or 0mA is not detected.
  • Page 15 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 15 of 36 When pressing button 1 again, the display will show “di.Lo“ (display low = display at lower frequency range limit). Set the value the device shall display at the lower frequency range limit by pressing button 2 or button 3.

  • Page 16: Measuring Of Flow Rate (Ttl, Switching-Contact)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 16 of 36 4.5. Measuring of flow rate (TTL, switching-contact) This chapter describes how to configure the device for measuring flow rate This instruction demands that you selected “Flo.P “ as your desired input type like it is explained in chapter 4.1.

  • Page 17: Measuring Of Rotation Speed (Ttl, Switching-Contact)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 17 of 36 4.6. Measuring of rotation speed (TTL, switching-contact) This chapter describes how to configure the device for measuring rotation speed. This instruction demands that you selected “rPn“ as your desired input type like it is explained in chapter 4.1.

  • Page 18: Up-/Downwards Counter (Ttl, Switching-Contact)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 18 of 36 4.7. Up-/Downwards counter (TTL, switching-contact) The upwards counter starts counting upwards from 0 according to its settings. The downwards counter starts counting downwards from the selected upper value.
  • Page 19 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 19 of 36 Use button 2 or button 3 to select the maximum pulse-count (after pre-scaling factor) for the counting process. Example: Your flow rate transmitter is supplying 1800 pulses per litre, you selected a pre-scaling factor of 100 and you are expecting a maximum flow rate of 300 litres during the measurement.

  • Page 20: Interface Mode

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 20 of 36 4.8. Interface mode When the device is in the interface mode it won’t make any measurements by itself. The value shown in the device’s display is sent via serial interface.

  • Page 21: Scaling The Analog Output

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 21 of 36 5. Configuration of the analog output (only at devices with option AAG) A change of the input configuration can possibly influence the configuration of the analog output.
  • Page 22 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 22 of 36 Press button 1 again, the display will show “dA.Fi“ (d/a converter filter = filter adjustment of the analog output). Note: The “dA.Fi” value can only be set for the input signal types “voltage”, “current” and “fre- quency”.

  • Page 23: Selection Of The Output Function

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 23 of 36 6. Configuration of the output functions (only for GIR 2002) A change of the input configuration can possibly influence the switching points and alarm bounda- ries.

  • Page 24: Point-Controller, 3-Point-Controller

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 24 of 36 6.2. 2-point-controller, 3-point-controller This chapter describes how to configure the device as a 2-point-controller or 3-point-controller and how to adjust the switching values. This instruction demands that you selected “2P“ or “3P“ as your desired output function like it is explained in chapter 6.1.

  • Page 25: Min-/Max-Alarm (Individual Or Common)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 25 of 36 Press button 1 to validate the selection. The display shows “1.dEL“ again. When pressing button 1 again, the device will display “1.Err“ (preferred state of switching function 1).

  • Page 26: Menu Calling

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 26 of 36 7. Switching points and alarm-boundaries (only for GIR 2002) Remark: The difference between this menu and the output configuration menu is that only in the output configuration menu it is possible to select the output function and to adjust the delay and the preferred state of switching functions.
  • Page 27 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 27 of 36 7.2. 2-point-controller, 3-point-controller This chapter describes device how to adjust the switching values of the device used as a 2-point-controller or 3-point-controller. This instruction demands that you selected “2P“ or “3P“ as your desired output function like it is explained in chapter 6.1.

  • Page 28: Minimum/Maximum-Alarm (Individual Or Common)

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 28 of 36 When pressing button 1, the device will be displaying “AL.Hi“. (maximum alarm-value) Use button 2 or button 3 to set the desired value, the device should turn on its maximum-alarm.

  • Page 29: Offset- And Slope-Adjustment

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 29 of 36 8. Offset- and slope-adjustment The offset and slope-adjustment function can be used for compensating the tolerance of the used sensor, and for vernier adjustment of the used transducer or transmitter.

  • Page 30: Min-/Max-Value Memory

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 30 of 36 Examples for offset- and slope-adjustment: Example 1: Connecting a Pt1000-sensor (with an offset error depending on the cable-length of the sensor) The device displays the following values (without offset- or slope-adjustment): 2°C at 0°C and 102°C at 100°C...

  • Page 31: Error Codes

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 31 of 36 11. Alarm display (only GIR 2002) If an output function with min-/max-alarm (out = AL.F1) is selected, LEDs will display the min-/max-alarm in case of its appearance.
  • Page 32 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 32 of 36 Err.4: Values below display range Indicates that display value is below the valid display range of the device (-1999 digit). Possible causes: - Incorrect scale.

  • Page 33: Specification

    Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 33 of 36 13. Specification Absolute maximum ratings: see chapter 3.3. (Connection data) Measuring inputs: Standard inputs for Input type Signal l Range Resolution Note Standard- 0 –...
  • Page 34 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 34 of 36 Display range: (voltage-, current and frequency-measurement) -1999 ... 9999 digits, initial value, terminal value and decimal point position arbitrary. Recommended range: < 2000 Digit...
  • Page 35 Manual for connection and operation of the GIA 2000 and GIR 2002 E32.0.02.6C-07 page 36 of 36...
