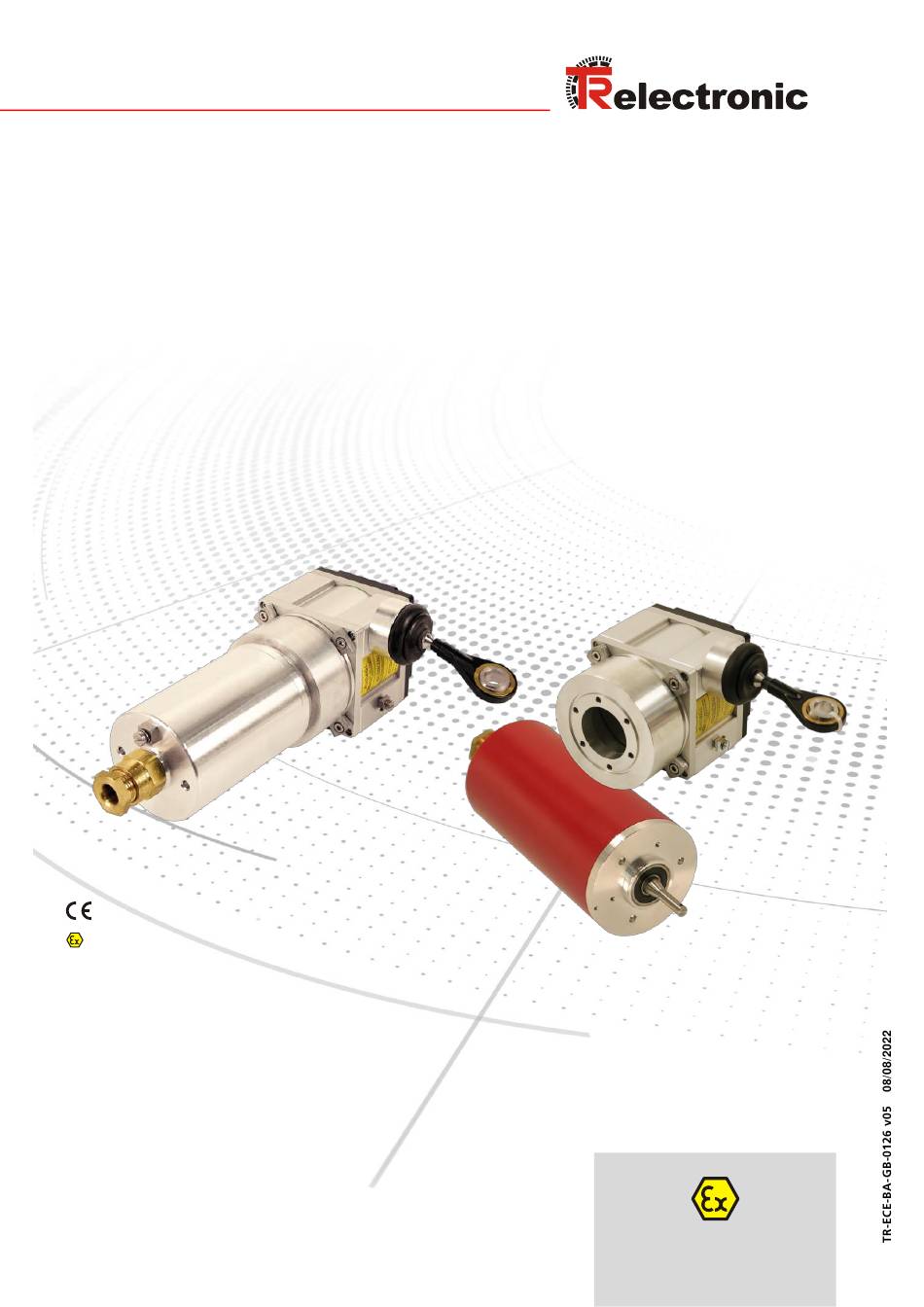

- Page 1 Original manual Combination Explosion Protection Enclosure TR-Explosionsschutzgehäuse with integrated Measuring System A*W70 and Draw-Wire _A*W70* 0123 II 2G Ex db h IIC T5 Gb X Date of manufacture: DD.MM.YYYY _Basic safety instructions Certifications _Intended use IBExU 11 ATEX 1125 X _Product description _Technical data _Explosion protection characteristics...
- Page 2 Courier-text shows text which is visible on the display or screen as well as software menu-selections. < > refers to keys on your computer keyboard (e.g. <RETURN>). TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 32 TR-ECE-BA-GB-0126 v05 08/08/2022...
-
Page 3: Table Of Contents
4.6.3 Cable type “Ethernet Hybrid Cable” with 2x2x22 AWG + 3x2x0.18 + 2x1.0 mm ..24 4.7 Explosion protection characteristics, entire assembly ............25 4.7.1 Ex-labeling, gas ......................25 TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05... - Page 4 8 Annex ..............................29 8.1 EU type examination certificate ....................29 8.2 EU declaration of conformity ....................31 8.3 Accessories ..........................32 TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 32 TR-ECE-BA-GB-0126 v05...
-
Page 5: Amendment-Index
- Type examination certificate „TÜV 03 ATEX 7131 X“ removed 03/02/2022 - Updating the declarations of conformity Additional information: Minimum cable length of 3 m 08/08/2022 TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 5 of 32... -
Page 6: General
-User manual is included, but can also be ordered separately. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 32... -
Page 7: Type Designation Code, Explosion Protection Enclosure
Multi turn Detection only in case of incremental encoder Consecutive number xxxxx Consecutive number, 5-digit TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 7 of 32... -
Page 8: Scope
Basic method and requirements Non-electrical equipment for use in EN ISO 80079-37 potentially explosive atmospheres: Protection by constructional safety "c" TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 32 TR-ECE-BA-GB-0126 v05 08/08/2022... -
Page 9: Used Abbreviations / Terms
The construction, as well as the interaction of the individual components and the housing variants with regards to their possibilities for use in potentially explosive areas, are tested by the company TR-Electronic GmbH and confirmed by identification with the nameplate for the entire assembly. -
Page 10: Basic Safety Instructions
ESD-safety measures according to DIN EN 61340-5-1 supplement 1 are to be observed. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 32 TR-ECE-BA-GB-0126 v05... -
Page 11: Obligation Of The Operator Prior To Commissioning
Squeezing’s and bends of the wire must be avoided Pull the rope only by means of the wire end ring Unhindered retraction of the wire must be avoided in any case TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022... -
Page 12: Intended Use
Zones 0, 20, 21 and 22 for medical aims commissioning of the equipment if the nameplates are no longer readable or are completely missing. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 32 TR-ECE-BA-GB-0126 v05... -
Page 13: Warranty And Liability
2.6 Warranty and liability The "General terms and conditions" (“Allgemeine Geschäftsbedingungen”) of the company TR-Electronic GmbH apply in general. This will be available to the operator with the contract confirmation or –conclusion at the latest. Warranty- or liability claims with regards to personal- and property damage are excluded, if they are the result of one or more of the following causes: ... -
Page 14: Personnel Selection And -Qualification; Basic Obligations
"expert person with leadership functions" and the "performing personnel", the IEC 60079-17 or DIN EN 60079-17 standards are to be additionally consulted [suppliers e.g. Beuth Verlag GmbH, VDE-Verlag GmbH]. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 32... -
Page 15: First Commissioning / Commissioning
Do not perform any welding work once the equipment has already been wired and switched on. Touching the equipment-connection contacts with bare hands is to be avoided, or the respective ESD-protective measures are to be implemented. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05... - Page 16 The life time can be reduced. If a flat unreeling angle is not possible, for example this can be managed with a pulley. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 32...
-
Page 17: Inspection, Maintenance And Repair
The general instructions for repairs are to be adhered to, see the chapter " Special conditions for safe use, marking "X" " on page 18. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany... -
Page 18: Special Conditions For Safe Use, Marking "X
TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 32... -
Page 19: Transport / Storage
Inappropriate packaging material may cause damage to the device during transport. Storage Storage temperature: -30 to +80°C Store in a dry place Relative humidity: < 65 %, no condensation TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 19 of 32... -
Page 20: Technical Data
Storage temperature ..........-30 °C…+80 °C, dry Relative humidity, DIN EN 60068-3-4 ....< 65 %, non-condensing Protection class, DIN EN 60529 ......IP 64 TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 32... -
Page 21: Enclosure Materials, Measuring-System
Data sheet for Draw-Wire SL3010, 10 m ● Data sheet for Draw-Wire SL3015, 15 m ● Data sheet for Draw-Wire SL3025, 25 m TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 21 of 32... -
Page 22: Cable Specifications
- UV-radiation Product properties halogen-, silicon free This cable requires a working temperature range of -20 °C…+40 °C. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 32 TR-ECE-BA-GB-0126 v05 08/08/2022... -
Page 23: Cable Type "Vicvi11Y Control Cable" With (2 Li2X 0.14) + 8(2 Li2X 0.14)
-25…+90 °C, 20.000 h range, in motion Resistance UV-radiation, salt spray, oil, acids, alkalis against Product halogen free properties Drag chain compatible TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 23 of 32... -
Page 24: Cable Type "Ethernet Hybrid Cable" With 2X2X22 Awg + 3X2X0.18 + 2X1.0 Mm
Bending radius, > 5x outside diameter fixed installation Bending radius, > 12x outside diameter in motion TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 32 TR-ECE-BA-GB-0126 v05 08/08/2022... -
Page 25: Explosion Protection Characteristics, Entire Assembly
4.7 Explosion protection characteristics, entire assembly The conformity assessment procedure which was realized at TR-Electronic GmbH, with quality assurance of production / product according to the ATEX directive 2014/34/EU, takes place with the participation of the notified body: 0123, TÜV SÜD Product Service GmbH,... - Page 26 EPL (Device protection level) ......adequate safety in case of predictable failures Special conditions ..........X: see chapter 2.12 on page 18 TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 26 of 32 TR-ECE-BA-GB-0126 v05...
-
Page 27: Assembly
Data sheet for Draw-Wire SL3010, 10 m ● Data sheet for Draw-Wire SL3015, 15 m ● Data sheet for Draw-Wire SL3025, 25 m TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 27 of 32... -
Page 28: Equipotential Bonding Conductor - Connection
Figure 1: Equipotential bonding conductor - Connection 7 Disposal Electronic waste is hazardous waste. The applicable country-specific regulations are to be adhered to for disposal. TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 32 TR-ECE-BA-GB-0126 v05... -
Page 29: Annex
8 Annex 8.1 EU type examination certificate TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 29 of 32... - Page 30 Annex TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 32 TR-ECE-BA-GB-0126 v05 08/08/2022...
-
Page 31: Eu Declaration Of Conformity
8.2 EU declaration of conformity TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany 08/08/2022 TR-ECE-BA-GB-0126 v05 Page 31 of 32... -
Page 32: Accessories
Annex 8.3 Accessories https://www.tr-electronic.com/products/rotary-encoders/accessories.html TR-Electronic GmbH 2016, All Rights Reserved Printed in the Federal Republic of Germany Page 32 of 32 TR-ECE-BA-GB-0126 v05 08/08/2022...
