Opticon H-15 Manual

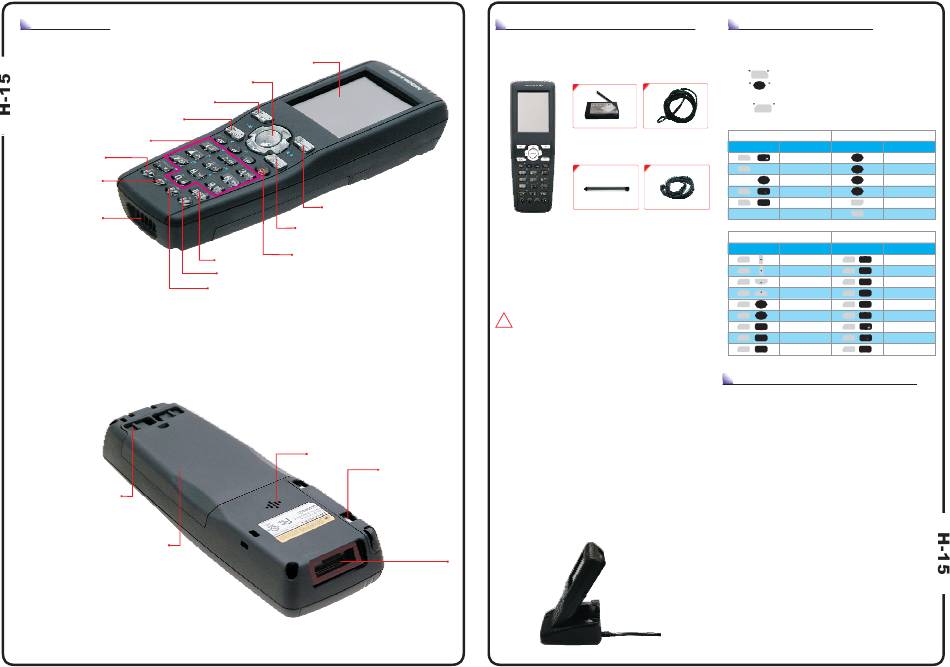

OVERVIEW
Navigation/Scan Key
Q1 Key
Shift Key
Alpha-Numeric Key
F1 Key
F2 Key
USB Cradle /
Synchronization Port
Battery Cover Latch
Battery Cover
LCD Touchscreen
Q2 Key
Fn Key
Power Key
Enter Key
F4 Key
F3 Key
Speaker
Stylus
Scan Window
BEFORE GETTING STARTED BEFORE GETTING STARTED
1. Open the package and check every
accessory:
Battery Pack Battery Pack Spring Cord Spring Cord
(2000mAh) (2000mAh) for Stylus for Stylus
Stylus Wrist Strap Wrist Strap
Main Unit
Quick Guide Quick Guide
(Not Shown) (Not Shown)
!
CAUTION:
The device will be powered on when you install the battery pack.
Power off the device and charge the batteries for at least
before starting to use the device. Always charge batteries at 0 ~45
℉ ℉
(32 ~113 ) environment temperature. The charger LED will turn
green when battery charging is finished.
2. Installing the Battery Pack
1) Slide the two battery cover latches toward the center and lift
the battery cover away.
2) Insert the battery pack into the battery compartment with the
label facing out, and make sure the battery fits into place.
3) Place the battery cover by inserting the top first, and then press
the bottom in firmly. Slide the battery cover latches outward to
secure the cover to the H-15.
3. Connect Cradle to charge the H-15
1) Insert the DC connector into the bottom case of the Cradle.
2) Insert the power adapter into an AC outlet.
3) Put the H-15 into the Cradle to charge.
USING THE KEYPAD USING THE KEYPAD
The keypad comprises 24 keys (numeric, functional
and Fn) and 1 Navigation/ Scan key.
1) Key toggles between the Numeric and Alpha modes.
SHIFT
2) Key toggles between uppercase and lowercase
Caps
characters.
3) Press to toggle Function Mode.
Fn
Special Characters Special Functions
Sequence of Keys Description Sequence of Keys
0 ﹙ ﹚ ＄ €
SHIFT ( )
SHIFT Charge to letters
Caps
Charge to upper case
, , ；@
.
SHIFT * *
@
，
SHIFT 1 S P \ S P \ : : Space : \ = %
= % = %
Special Characters Special Functions
Sequence of Keys Description Sequence of Keys
Increase Brightness
Fn Fn
Decrease Brightness
Fn Fn
Page Down
Fn Fn
Page Up
Fn Fn
ESC Audio Mute
Fn Fn
BS
Fn TAB Fn
1 S P \ S P \ : : @
Fn Fn
= % = %
'
2 ABC
Fn Fn
＋
3 DEF
4 hours
Fn Fn
℃ ℃
BATTERY PRODUCT SAFETY
Lithium-ion Battery Packs might get hot, explode, ignite
and/ or cause serious injury in case of misuse.
Please follow the safety warnings listed below:
A. Do not throw the battery into fire. Do not expose the battery to
high temperatures.
B. Do not connect the terminals of the battery pack to each other with
any metal object (such as wire).
C. Do not carry or store the battery pack together with metal objects.
D. Do not pierce the battery pack with nails or drills, strike the battery
pack with a hammer, step on the battery pack or otherwise expose
it to strong impacts, shocks or excessive force.
E. Do not solder directly onto the battery pack.
F. Do not expose the battery pack to liquid or allow the battery
contacts to become wet.
G. Do not disassemble or modify the battery pack. the battery pack
contains safety and protection measures, which, if damaged,
may cause the battery pack to generate heat, explode or ignite.
H. Do not discharge the batteries outside the H-15. Do not use the
battery in another device than the H-15 or its battery charger.
Otherwise, the battery pack can be damaged or its life
expectancy reduced. If such a device causes any abnormal
current to flow, it may cause the battery pack to become hot,
explode or ignite and cause serious injury.
I . In the event the battery pack leaks and the fluid gets into one's
eye, do not rub the eye. Rinse well with water and immediately
seek medical care.
Description
F1 Internet Explorer
Microsoft Wordpad
F2
F3 Inbox
F4 File Explorer
Q1 User Configurable Key1
Q2 User Configurable Key2
Description
GHI
4 Paste
JKL
5
Delete
－ (Minus Sign)
6 MNO
7 PQ PQ Copy
RS RS
TUV
8 &
WX WX ＊
9
YZ YZ
€
0 ﹙ ﹚
. ,
* Start Menu
@
ENT /
