Scan quantity demo application
description
Version LFD24390
for OPL9728

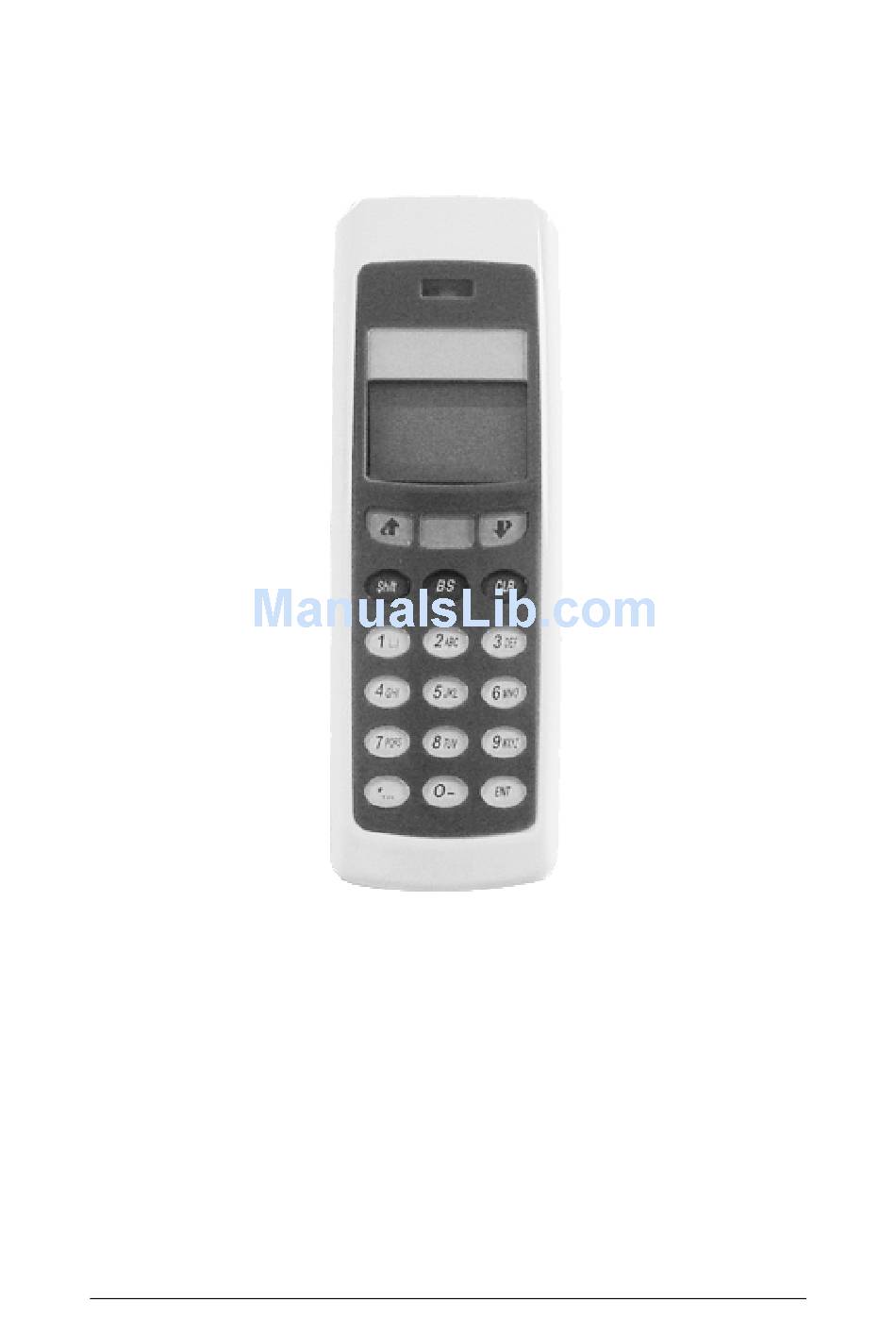

S
OPL9728
OPTICON
CAN QUANTITY DEMO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPL9728 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Opticon OPL9728

Summary of Contents for Opticon OPL9728

  • Page 1 Scan quantity demo application description Version LFD24390 for OPL9728 OPL9728 OPTICON CAN QUANTITY DEMO...
  • Page 2 Opticon will not be liable for modifications that are made by the customer. Opticon does not warrant that the software is free of errors, or that it will meet any user’s particular standards, requirements, or needs. Opticon will in no event be liable for any direct, indirect or incidental damages arising out of use of this software.

  • Page 3: Table Of Contents

    ABLE OF CONTENTS Table of contents ABLE OF CONTENTS ENU STRUCTURE Scan Labels Scroll data System menu Delete data Send data Version ATA FORMAT ATTERY 4.1. Battery charging 4.2. Battery near empty 4.3. Battery empty OPL9728 OPTICON CAN QUANTITY DEMO...

  • Page 4: Keys

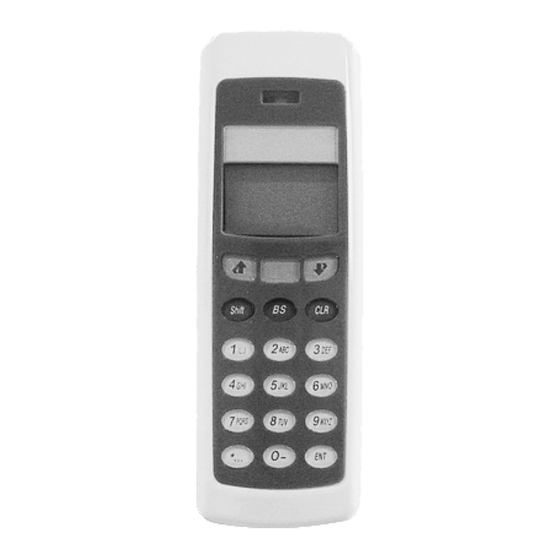

    SCAN QUANTITY DEMO APPLICATION - PAGE 4 Keys The OPL9728 has full numeric keypad with some additional control keys. The Q1 key (Up key) or with shift left key. The Trigger key. The Q2 key (Down key) or with shift right key.

  • Page 5: The Menu Structure

    ENT or the button. Direct selection of the menu is also possible by pressing the numeric equivalent of the menu item. Below is the schematic representation of the menu that is displayed in the OPL9728. • 1 Scan labels •...

  • Page 6: Scan Labels

    . To make a negative value positive, repeat the same process. To enter the input press the ENT or trigger key. If the Total + Add quantity is 0 (zero) the record is deleted from the database. OPL9728 OPTICON CAN QUANTITY DEMO...
  • Page 7 If the entered quantity is not a valid value this message box will appear. By pressing any key the OPL9728 returns to the quantity input. A 0 (zero) is a valid input then the changes are not stored in the database.

  • Page 8: Scroll Data

    When selecting this menu item it is possible to scroll through the inputted data. To navigate through the inputted data use the keys. When pressing the the first record in the database is displayed. will display the last record of the database. OPL9728 OPTICON CAN QUANTITY DEMO...

  • Page 9: System Menu

    The system menu consist of 8 items: • (back) • Barcodes • Communicate • Battery volt • Memory • Date / time • Standby time • Backlight When the (back) menu item is selected the application returns to the main menu. OPL9728 OPTICON CAN QUANTITY DEMO...
  • Page 10 SCAN QUANTITY DEMO APPLICATION - PAGE 10 The barcode menu enables or disables barcode types that are supported by the OPL9728. More barcodes can be enabled at the same time. Checked = enabling barcode Unchecked = disabling barcode Supported barcode types are: •...
  • Page 11 PC by the NetO protocol. Checked = protocol enabled Unchecked = protocol disabled By selecting a new protocol the previous selected protocol is disabled. The battery voltage menu shows the current input voltage of the battery. OPL9728 OPTICON CAN QUANTITY DEMO...
  • Page 12 If the newly entered time or date is not a correct value an error message is signaled. Error in setting: Time or date The new settings are not saved when the error message is signaled. OPL9728 OPTICON CAN QUANTITY DEMO...
  • Page 13 When pressing one of the three keys will turn the terminal back on. The backlight menu controls the way the OPL9728 uses the backlight. The Baclight menu options are OFF, ON and AUTO. When the auto option is selected then...

  • Page 14: Delete Data

    RAM disk. Use button to switch between delete and cancel. When the delete option is selected the database is removed from the RAM disk and the application returns to the main menu. OPL9728 OPTICON CAN QUANTITY DEMO...

  • Page 15: Send Data

    Databits Stopbits When the transmit data message appears on the display put the OPL9728 in the cradle and then press a key. On the PC needs to run an application to receive the database. After a successful transmission a message appears to delete the database.

  • Page 16: Version

    SCAN QUANTITY DEMO APPLICATION - PAGE 16 Version Selection the version menu item the current software version is shown. The software version of this application. OPL9728 OPTICON CAN QUANTITY DEMO...

  • Page 17: Data Format

    The fields in record are separated by a comma and all records end with a <CR><LF> character. A Complete record looks like this: <Barcode>,<Quantity>,<Time>,<Date><CR><LF> The maximum amount of record that can be placed in this terminal is almost 6500 records. OPL9728 OPTICON CAN QUANTITY DEMO...

  • Page 18: Battery

    SCAN QUANTITY DEMO APPLICATION - PAGE 18 Battery 4.1. Battery charging If the OPL9728 with the battery pack is placed in the cradle, the voltage and the required loading time is automatically determined. During charging the OPL9728 shows one of the images on the left.

  • Page 19: Battery Near Empty

    When the battery detects that the battery is nearly empty, the near empty message is alerted. The OPL9728 can be placed on the cradle to recharge the battery pack or press a key to continue operation.
