Installation
18

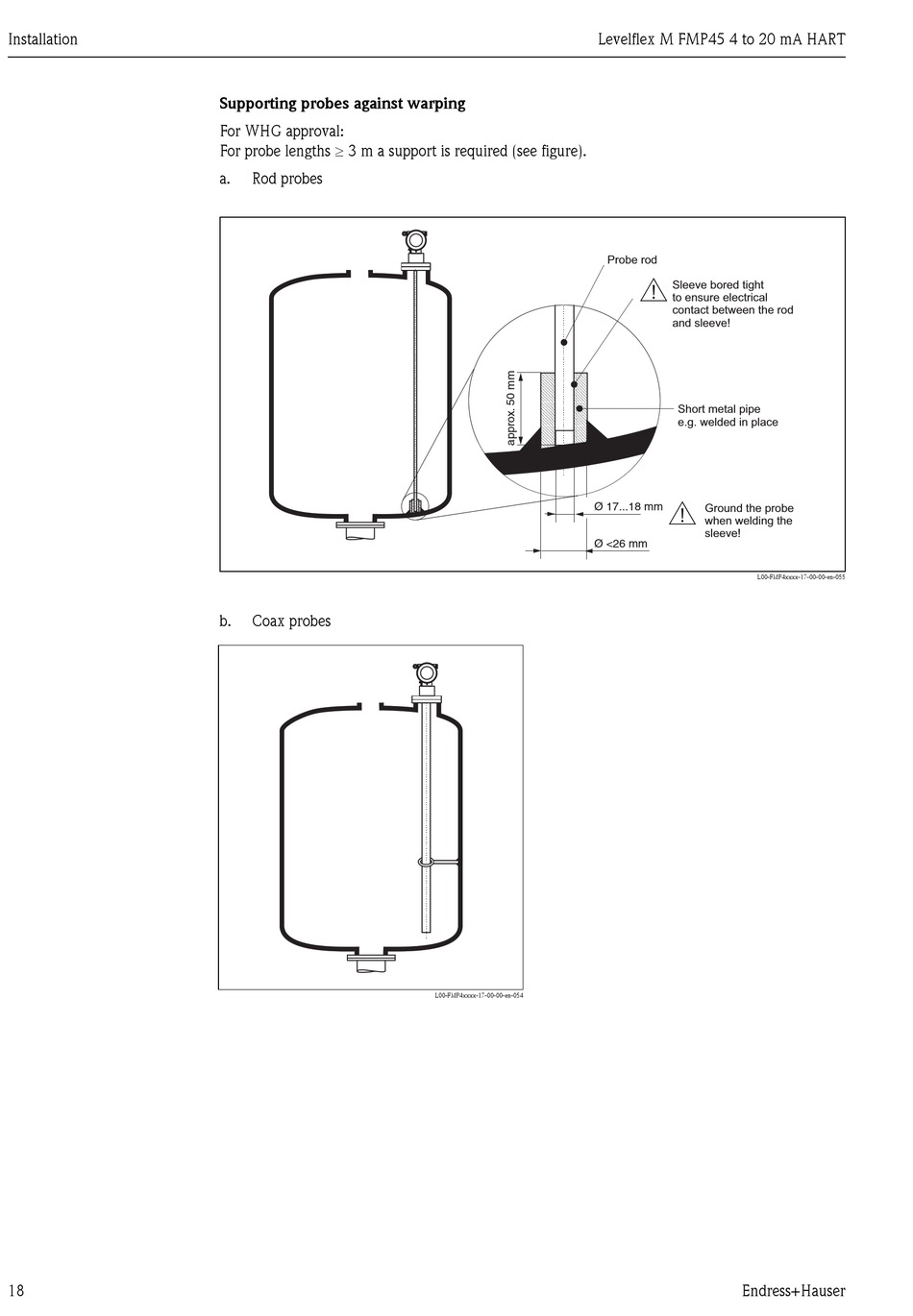

Supporting probes against warping
For WHG approval:
For probe lengths ≥ 3 m a support is required (see figure).
a.
Rod probes
b.
Coax probes
Levelflex M FMP45 4 to 20 mA HART
Ø 17...18 mm
Ø <26 mm
L00-FMP4xxxx-17-00-00-en-054
Probe rod
#
Sleeve bored tight
to ensure electrical
contact between the rod
and sleeve!
Short metal pipe
e.g. welded in place
#
Ground the probe
when welding the
sleeve!
L00-FMP4xxxx-17-00-00-en-055
Endress+Hauser
