[Integral ABS]

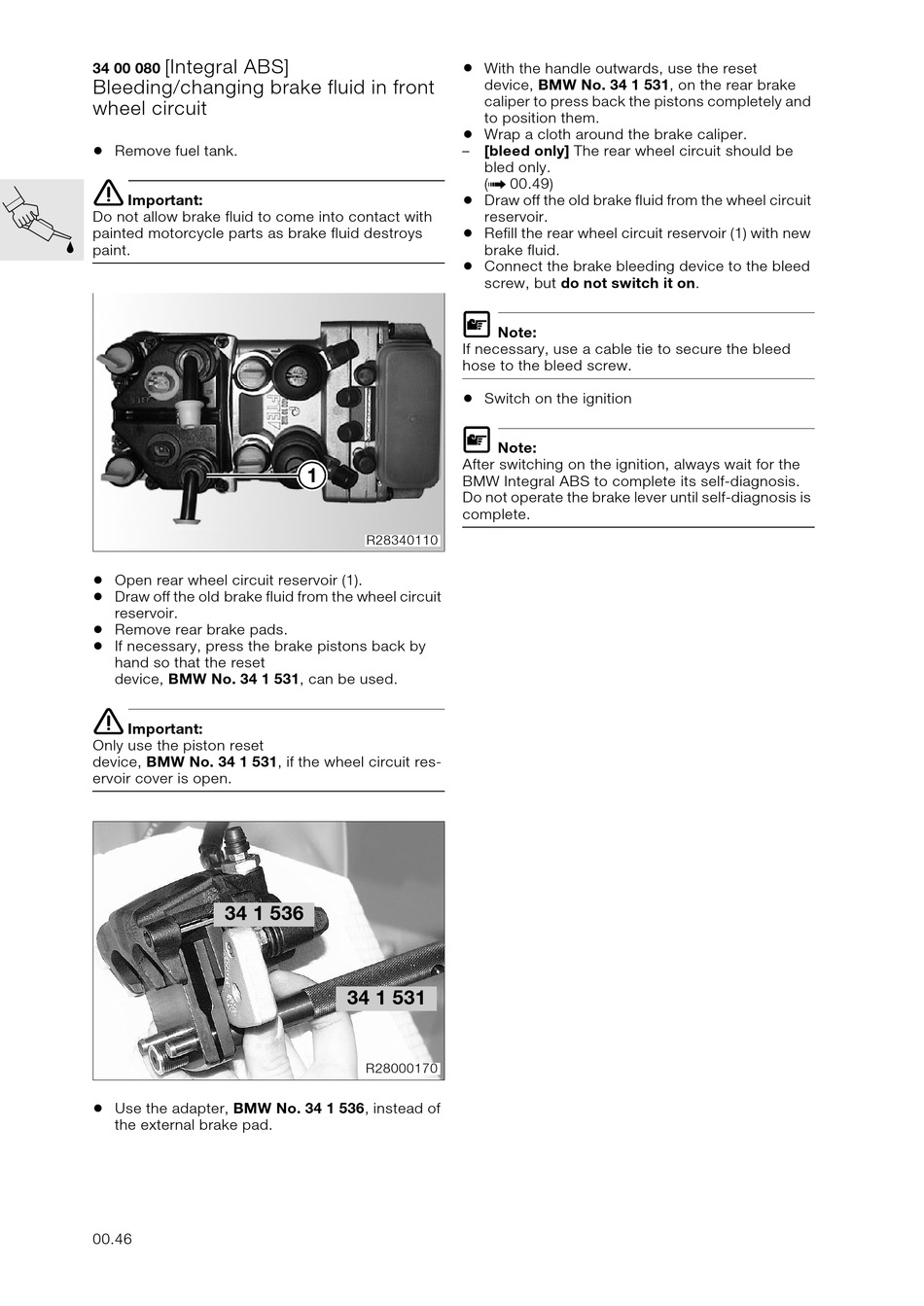

34 00 080
Bleeding/changing brake fluid in front
wheel circuit
•
Remove fuel tank.
e
Important:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
•
Open rear wheel circuit reservoir (1).
•
Draw off the old brake fluid from the wheel circuit
reservoir.
•
Remove rear brake pads.
•
If necessary, press the brake pistons back by
hand so that the reset
device, BMW No. 34 1 531, can be used.
e
Important:
Only use the piston reset
device, BMW No. 34 1 531, if the wheel circuit res-
ervoir cover is open.
34 1 536
•
Use the adapter, BMW No. 34 1 536, instead of
the external brake pad.
00.46
•
•
–
•
•
•
L
If necessary, use a cable tie to secure the bleed
hose to the bleed screw.
•
L
After switching on the ignition, always wait for the
1
BMW Integral ABS to complete its self-diagnosis.
Do not operate the brake lever until self-diagnosis is
complete.
R28340110
34 1 531
R28000170
With the handle outwards, use the reset
device, BMW No. 34 1 531, on the rear brake
caliper to press back the pistons completely and
to position them.
Wrap a cloth around the brake caliper.
[bleed only] The rear wheel circuit should be
bled only.
( 00.49)
a
Draw off the old brake fluid from the wheel circuit
reservoir.
Refill the rear wheel circuit reservoir (1) with new
brake fluid.
Connect the brake bleeding device to the bleed
screw, but do not switch it on.
Note:
Switch on the ignition
Note:
