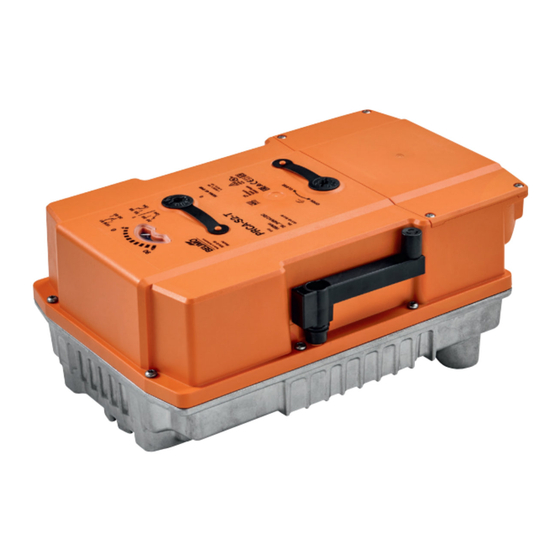

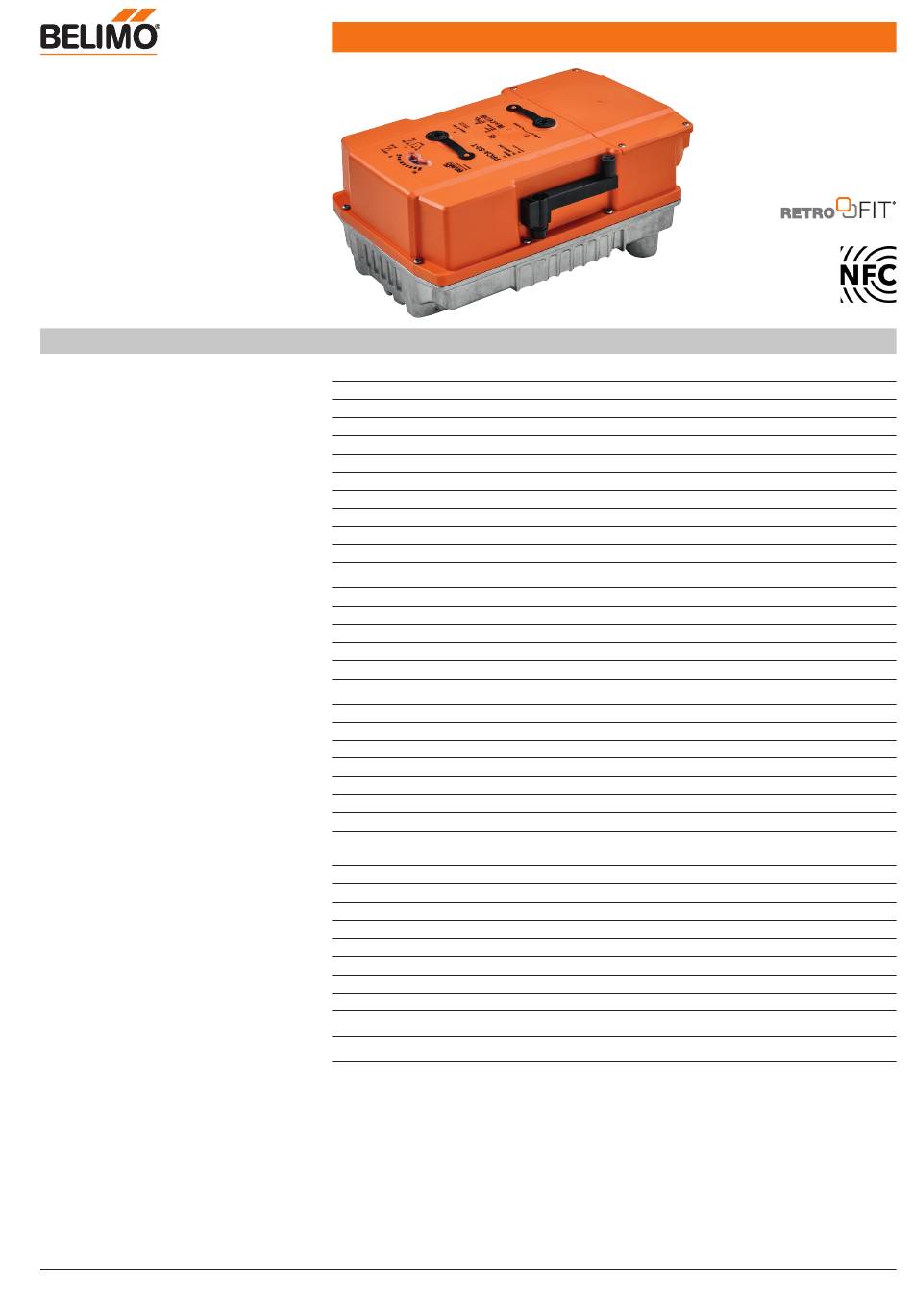

Rotary actuator for butterfly valves
• Torque motor 160 Nm
• Nominal voltage AC 24...240 V /
DC 24...125 V
• Control Open/close, 3-point
• with 2 integrated auxiliary switches
Technical data
Functional data
Mechanical data
www.belimo.com
Technical data sheet
Electrical data
Nominal voltage
Nominal voltage frequency
Nominal voltage range
Power consumption in operation
Power consumption in rest position
Power consumption for wire sizing
Auxiliary switch
Switching capacity auxiliary switch
Connection supply / control
Connection auxiliary switch
Parallel operation
Torque motor
Manual override
Running time motor
Running time motor variable
Sound power level, motor
Position indication
Safety
Protection class IEC/EN
Protection class UL
Protection class auxiliary switch IEC/EN
Degree of protection IEC/EN
Degree of protection NEMA/UL
EMC
Low voltage directive
Certification IEC/EN
Certification UL
Mode of operation
Rated impulse voltage supply
Rated impulse voltage auxiliary switch
Control pollution degree
Ambient temperature
Non-operating temperature
Ambient humidity
Maintenance
Connection flange
Weight
Weight
PRCA-S2-T • en-gb • 2019-03-08 • subject to changes
AC 24...240 V / DC 24...125 V
50/60 Hz
AC 19.2...264 V / DC 19.2...137.5 V
20 W
6 W
with 24 V 20 VA / with 230 V 52 VA
2 x SPDT, 1 x 10° / 1 x 0...90° (ex works 85°)
1 mA...3 (0.5 inductive) A, AC 250 V
Terminals 2.5 mm²
Terminals 2.5 mm²
Yes (note the performance data)
160 Nm
with hand crank, can be fixed in any position
35 s / 90°
30...120 s
68 dB(A)
Mechanically (integrated)
II reinforced insulation
II reinforced insulation
II reinforced insulation
IP66/67
NEMA 4X, UL Enclosure Type 4X
CE according to 2014/30/EU
CE according to 2014/35/EU
IEC/EN 60730-1 and IEC/EN 60730-2-14
cULus according to UL60730-1A, UL60730-2-
14 and CAN/CSA E60730-1:02
Type 1
4 kV
2.5 kV
3
-30...50°C
-40...80°C
Max. 95% r.H., non-condensing
Maintenance-free
F07 (F05 only with accessory)
5.8 kg
PRCA-S2-T
1
Advertisement
Table of Contents
Related Manuals for Belimo PRCA-S2-T
Summary of Contents for Belimo PRCA-S2-T
- Page 1 Control pollution degree Ambient temperature -30...50°C Non-operating temperature -40...80°C Ambient humidity Max. 95% r.H., non-condensing Maintenance Maintenance-free Mechanical data Connection flange F07 (F05 only with accessory) Weight Weight 5.8 kg www.belimo.com PRCA-S2-T • en-gb • 2019-03-08 • subject to changes...
-
Page 2: Safety Notes
- Humidity The factory settings cover the most common applications. Parameterisable actuators The Belimo Assistant App is required for parameterisation via Near Field Communication (NFC) and simplifies commissioning. Moreover, it provides a variety of diagnostic options. The ZTH EU service tool provides a selection of both diagnostic and setting options. -
Page 3: Electrical Installation
24 V 24 V – 230 V 24 V 24 V 230 V S1 S2 S3 S4 S5 S6 L Y1 Y2 (N) Power B 0 ... 90° A 10° www.belimo.com PRCA-S2-T • en-gb • 2019-03-08 • subject to changes... -
Page 4: Operating Controls And Indicators
Off: No power supply or malfunction In operation Press button: Triggers test run, followed by standard mode Power Push-button and LED display yellow Off: Standard mode Status Test run active PRCA-S2-T • en-gb • 2019-03-08 • subject to changes www.belimo.com... - Page 5 Rotary actuator, Open/close, 3-point, AC 24...240 V / PRCA-S2-T DC 24...125 V, 160 Nm, Running time motor 35 s Service Belimo equipment marked with the NFC logo can be operated with the “Belimo NFC connection Assistant App”. Requirement: - NFC- or Bluetooth-capable smartphone - Belimo Assistant App (Google Play &...
- Page 6 Dimensions [mm] Dimensional drawings Further documentation • Overview Valve-actuator combinations • Data sheets for butterfly valves • Installation instructions for actuators and/or butterfly valves • General notes for project planning PRCA-S2-T • en-gb • 2019-03-08 • subject to changes www.belimo.com...
