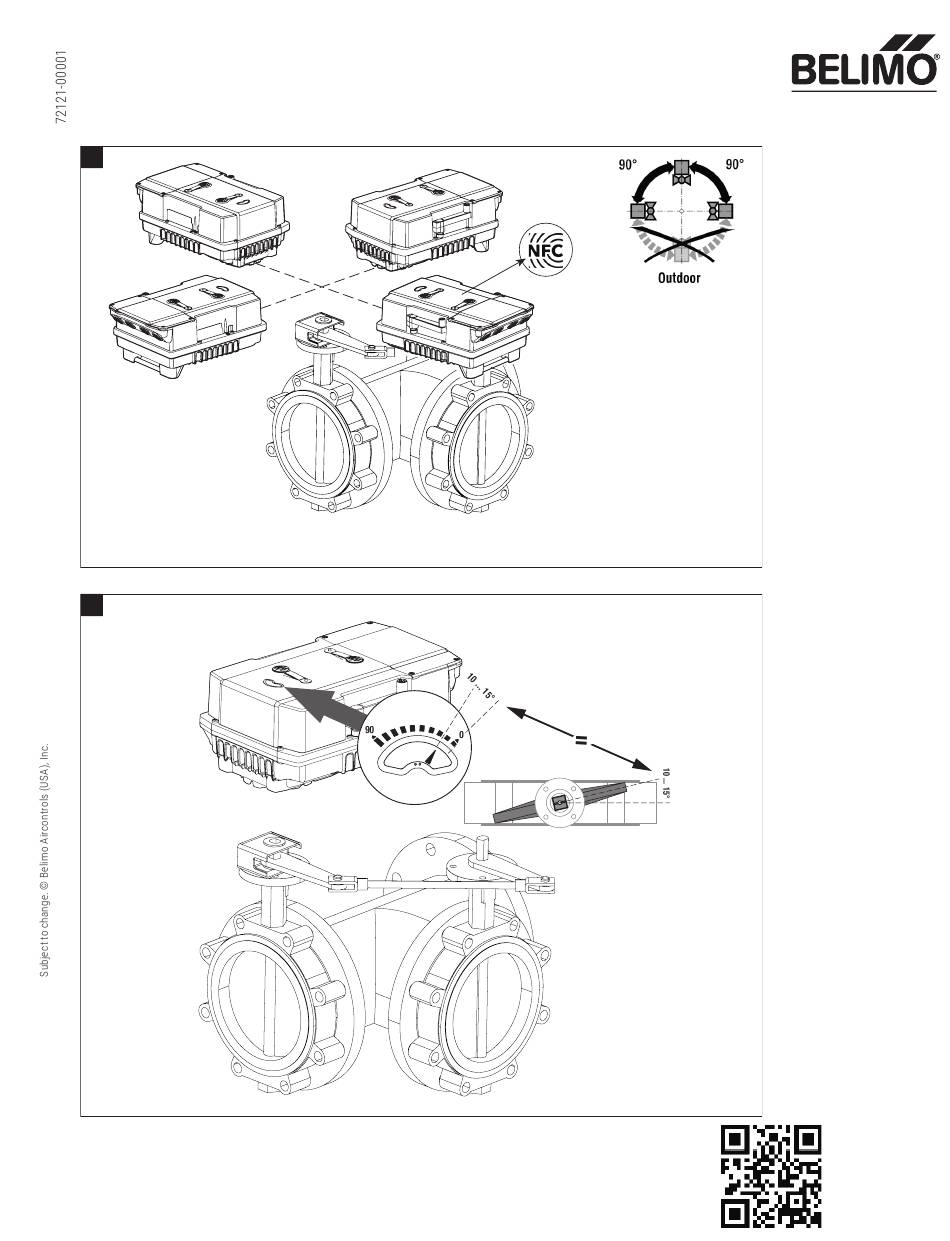

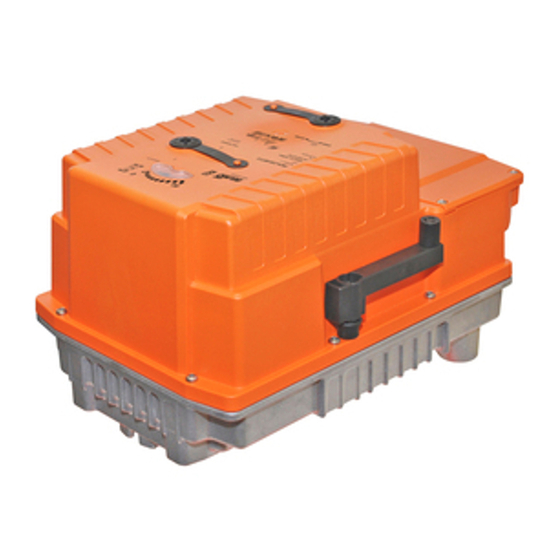

- Page 1 QUICK MOUNT VISUAL INSTRUCTION MANUAL PR and PKR Actuators with 3-Way Butterfly Valves 90° 90° 90° 90° 90° 90° *NFC default 90° 90° "Enabled" unless otherwise noted 3 Way HD/L series shown www.belimo.eu/safety...
- Page 2 QUICK MOUNT VISUAL INSTRUCTION MANUAL PR and PKR Actuators with 3-Way Butterfly Valves PR(K)CA-(BAC-)S2-T 225 in-lb 3 Way HD/L series shown. Retrofit linkages may vary. 20 Nm...
- Page 3 QUICK MOUNT VISUAL INSTRUCTION MANUAL PR and PKR Actuators with 3-Way Butterfly Valves IP66 IP67 NEMA 4X 9 in-lb NEMA 4X NEMA 4X 44 in-lb 88 in-lb ½" NPT adapters supplied. Move as needed for desired location max. 3 ft-lbs 1/2”...
- Page 4 U5/MP 0 - 10 VDC **Control type, direction and fail position changes can be On/Off VDC / 4 to 20 mA made via Belimo Selection Tools, i.e. ZTH, PC-Tool and App. Optional: end switch adjustment 24 to 240 VAC 24 to 125 VDC Disconnect power.
