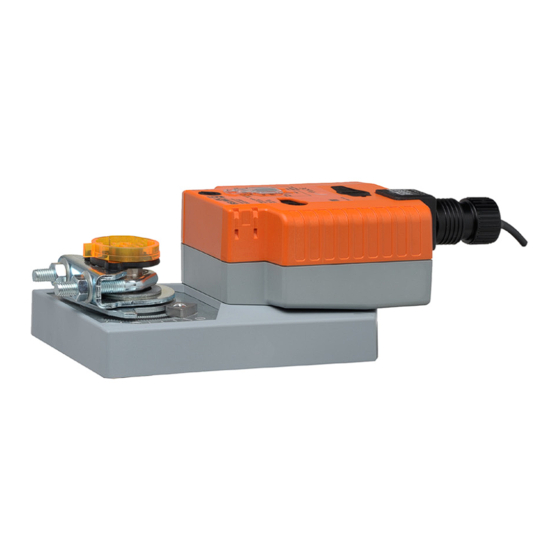

GKX24-MFT-X1
Modulating, Electronic Fail-Safe, 24 V, for 2 to 10 VDC or 4 to 20 mA Control Signal

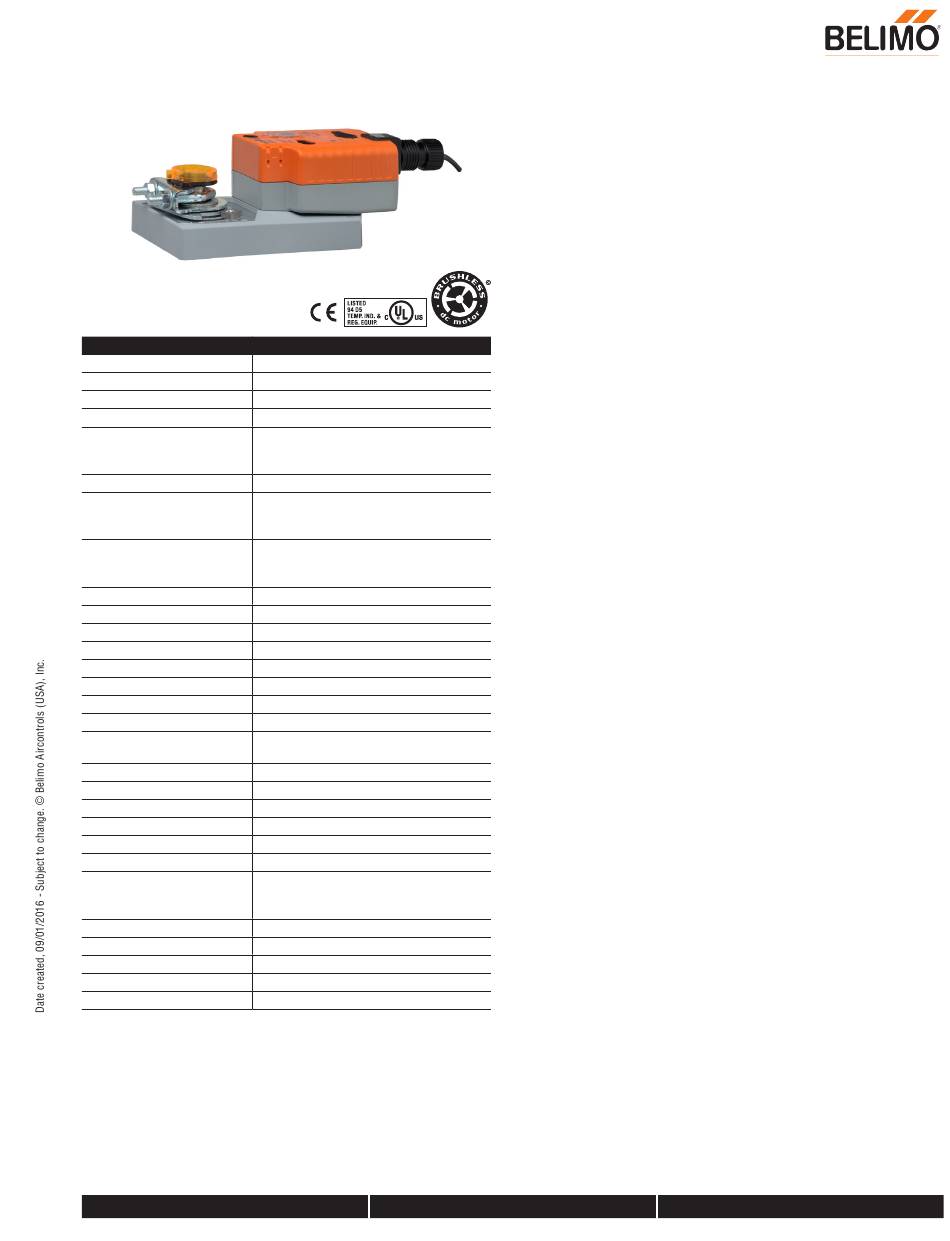

Technical Data
Power Supply
24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Consumption Running
12 W
Power Consumption Holding
3 W
Transformer Sizing
21 VA (class 2 power source)
Electrical Connection
18 GA plenum rated cable with 1/2" conduit
connector protected NEMA 2 (IP54) 3ft [1m]
10 ft [3m] and 16 ft [5m]
Overload Protection
electronic throughout 0° to 95° rotation
Operating Range Y
2 to 10 VDC, 4 to 20 mA w/ ZG-R01 (500 Ω,
1/4 W resistor), variable (VDC, floating point,
on/off)
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for
4 to 20 mA, 1500 Ω for PWM, floating point
and On/Off
Feedback Output U
2 to 10 VDC, 0.5 mA max, VDC variable
Angle of Rotation
max. 95°, adjustable with mechanical stop
Direction of Rotation (Motor)
reversible with built-in switch
Direction of Rotation (Fail-Safe) reversible with switch
Position Indication
reflective visual indicator (snap on)
Manual Override
external push button
Running Time (Motor)
150 sec (default), variable (95 to 150 sec)
Running Time (Fail-Safe)
35 sec
Bridge Time
programmable 0 to 10 sec (2 sec default)
delay before fail-safe activates
Pre-charging Time
5 to 20 seconds
Humidity
5 to 95% RH non condensing (EN 60730-1)
Ambient Temperature Range
-22°F to +122°F [-30°C to +50°C]
Storage Temperature Range
-40°F to +176°F [-40°C TO +80°C]
Housing
NEMA 2, IP54, UL enclosure type 2
Housing Material
UL94-5VA
Agency Listings†
cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2004/108/EC and
2006/95/EC
Noise Level (Motor)
<45 dB (A)
Noise Level (Fail-Safe)
<45 dB (A)
Servicing
maintenance free
Quality Standard
ISO 9001
Weight
4 lb [1.8 kg]
†Rated Impulse Voltage 800V, Type of action 1.AA, Control Pollution Degree 3
