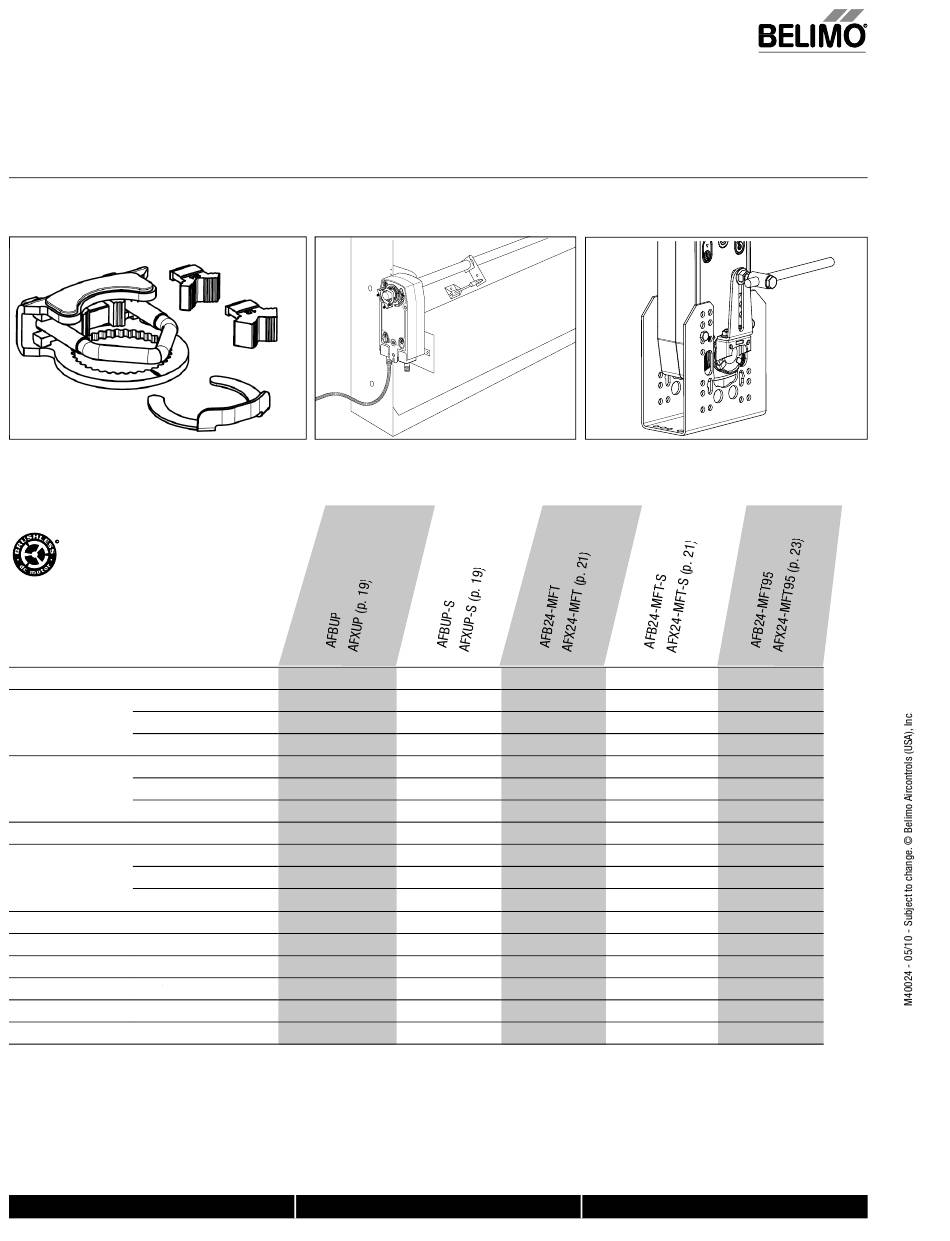

AFB and AFX Series Spring Return Direct Coupled Actuator
Minimum 180 in-lb Torque
●
For damper areas up to 45 sq-ft* (For lower torque, see AF, NFB, NFX, LF, or TF series)
A A pplications
3/4"
1"
New standard clamp fits standard 1/2" shafts to 1.05" jackshafts.
A A ll Actuators
have BDCM
AFB, AFX Series - At A Glance
Torque:
180 in-lb
Power supply:
24 VAC/DC
120 VAC
230 VAC
Control signal:
On/Off
Multi-function**
0 to 135 Ω
Feedback signal:
VDC variable**
Running time motor:
<75 seconds
Adj. 70 to 220 seconds***
spring: <20 seconds
Brushless DC Motor
External direction of rotation switch
Manual override
Appliance rated cable, 18 GA
A A
†
Plenum rated cable, 18 GA
Built-in auxiliary switch, Two SPDT
Installation instructions......(p. 31–36)
*Based on 4 in-lb/ft
damper torque loading. Parallel blade. No edge seals. **Default 2 to 10 VDC. ***Default 150 seconds. †Optional Plenum cable available for MFT models
2
800-543-9038 USA
17
1/2"
Mount directly to 1.05" jackshafts.
●
●
●
●
●
●
●
●
●
●
General wiring......(p. 39)
Start-up and checkout......(p. 40)
866-805-7089 CANADA
Linkage solutions are available when direct coupling is not possible.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Electrical operations......(p. 38)
203-791-8396 LATIN AMERICA
Advertisement
Table of Contents
Related Manuals for Belimo AFB Series
Summary of Contents for Belimo AFB Series
- Page 1 AFB and AFX Series Spring Return Direct Coupled Actuator Minimum 180 in-lb Torque ● For damper areas up to 45 sq-ft* (For lower torque, see AF, NFB, NFX, LF, or TF series) A A pplications 3/4” 1” 1/2” New standard clamp fits standard 1/2” shafts to 1.05” jackshafts. Mount directly to 1.05”...
- Page 2 ● Automatically compensates for damper seal wear, ensuring tight close-off. ● Added Flexibility to Select Clamp, Electrical Connection, and Running Time to fit your Specific Application with Belimo’s Flexible Line of Actuators (AFX). The Belimo Difference Customer Commitment. ● Extensive product range. Application assistance.
-
Page 3: Operation

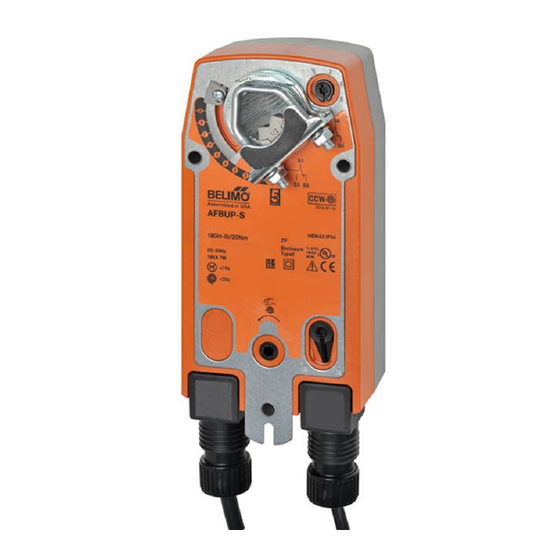

AFBUP, AFBUP-S, AFXUP, AFXUP-S On/Off, Spring Return, 24 to 240 VAC Torque min. 180 in-lb, for control of air dampers Application For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact, or a manual switch. - Page 4 During installation, testing, servicing and troubleshooting of this product, it may be For actuator wiring information and diagrams, refer to Belimo Wiring Guide. necessary to work with live electrical components. Have a qualifi ed licensed electrician or other individual who has been properly trained in handling live electrical components perform these tasks.
