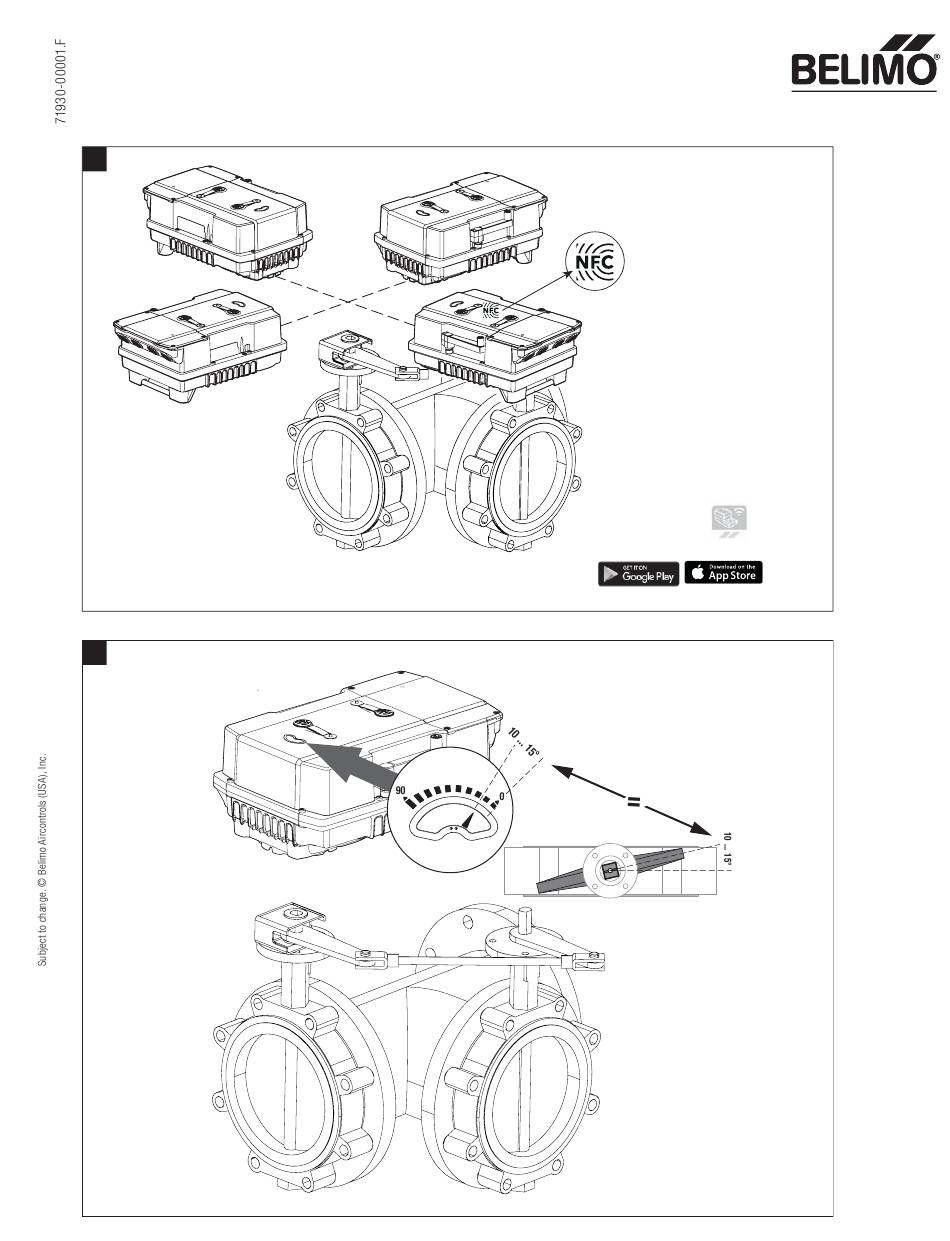

QUICK MOUNT VISUAL INSTRUCTION MANUAL
PR and PKR Actuators
with 3-Way Butterfly Valves
i
3 Way HD/L series shown
1
90°
90°
90°
90°
Near Field Communication (NFC)
allows fast programming,
commissioning and troubleshooting
– even when the actuator is not
powered it can be programmed
Belimo Assistant App
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PKR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Belimo PKR Series

  • Page 1 PR and PKR Actuators with 3-Way Butterfly Valves 90° 90° 90° 90° Near Field Communication (NFC) allows fast programming, commissioning and troubleshooting – even when the actuator is not powered it can be programmed Belimo Assistant App 3 Way HD/L series shown...
  • Page 2 QUICK MOUNT VISUAL INSTRUCTION MANUAL PR and PKR Actuators with 3-Way Butterfly Valves 225 in-lb 3 Way HD/L series shown. Retrofit linkages may vary.
  • Page 3 QUICK MOUNT VISUAL INSTRUCTION MANUAL PR and PKR Actuators with 3-Way Butterfly Valves 9 in-lb NEMA 4X № O-ring PG11 Metric Thread 4 - 6mm max. 3 ft-lbs 6 - 8mm 1/2” NPT 45 in-lb* 8 - 10mm № * Note: Use brass knockout to 45 in-lb* remove plastic if included with Note: Use brass knockout to...
  • Page 4 U5/MP 0 - 10 VDC **Control type, Direction and Fail position changes can be On/Off made via Belimo Assistant App, i.e. Floating or 4-20mA. VDC / 4 to 20 mA Optional: end switch adjustment 24 to 240 VAC Disconnect power.
