8. Patient side observation windows
Patient side: front area where the patient is positioned and through which he or she looks during the eye
test.
9. Forehead rest
Area on which the patient's forehead must rest during the test.
Applied part.
10. Movable face shield
Area which may be in contact with the patient's cheeks.
Applied part.
11. Measurement cameras for lens-eye distance
Used to measure the lens-eye distance of the patient and to light up their eyes if necessary during the
pupillary distance adjustment.
12. Rotation axis
360° rotation movement, during the handling of the instrument.

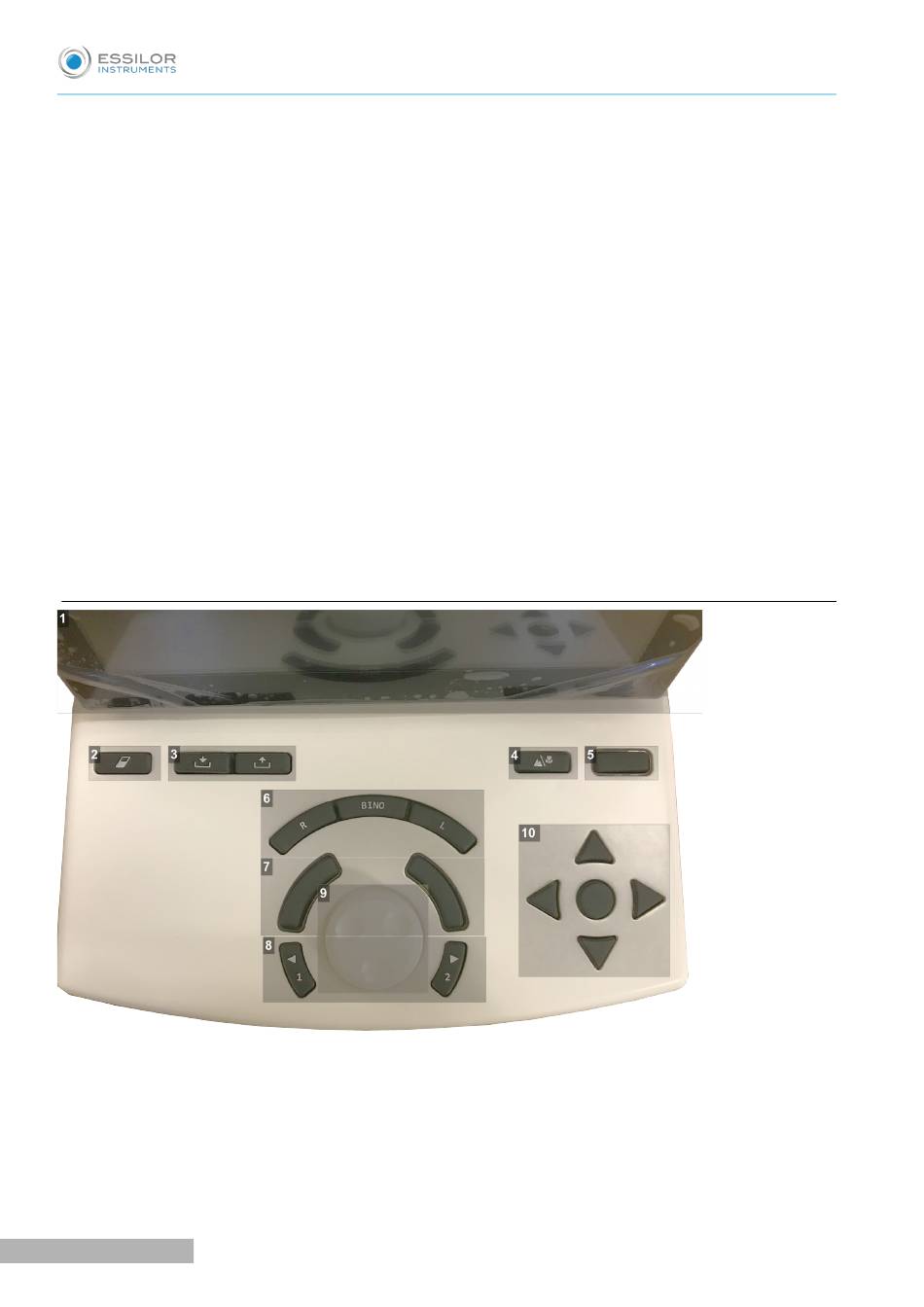

c. Console
1. Touch screen
2. Touch [Clear]
Used for:
◦ Resetting the current session (quick press).
◦ Turning the instrument on or off (long press).
