1. I
NSTRUMENT INSPECTION
• Regularly inspect the instrument to ensure that it is assembled correctly and the console is properly
connected from the head to the power module.
• Check the tightening of the M6 screw that attaches the head to the phoropter arm.
• Check the tightening of the M5 safety screw (through screw in the phoropter arm).
• If the cover is dirty, gently wipe it with a soft, slightly damp cloth. Wipe any stubborn stains with a
little water or neutral detergent.

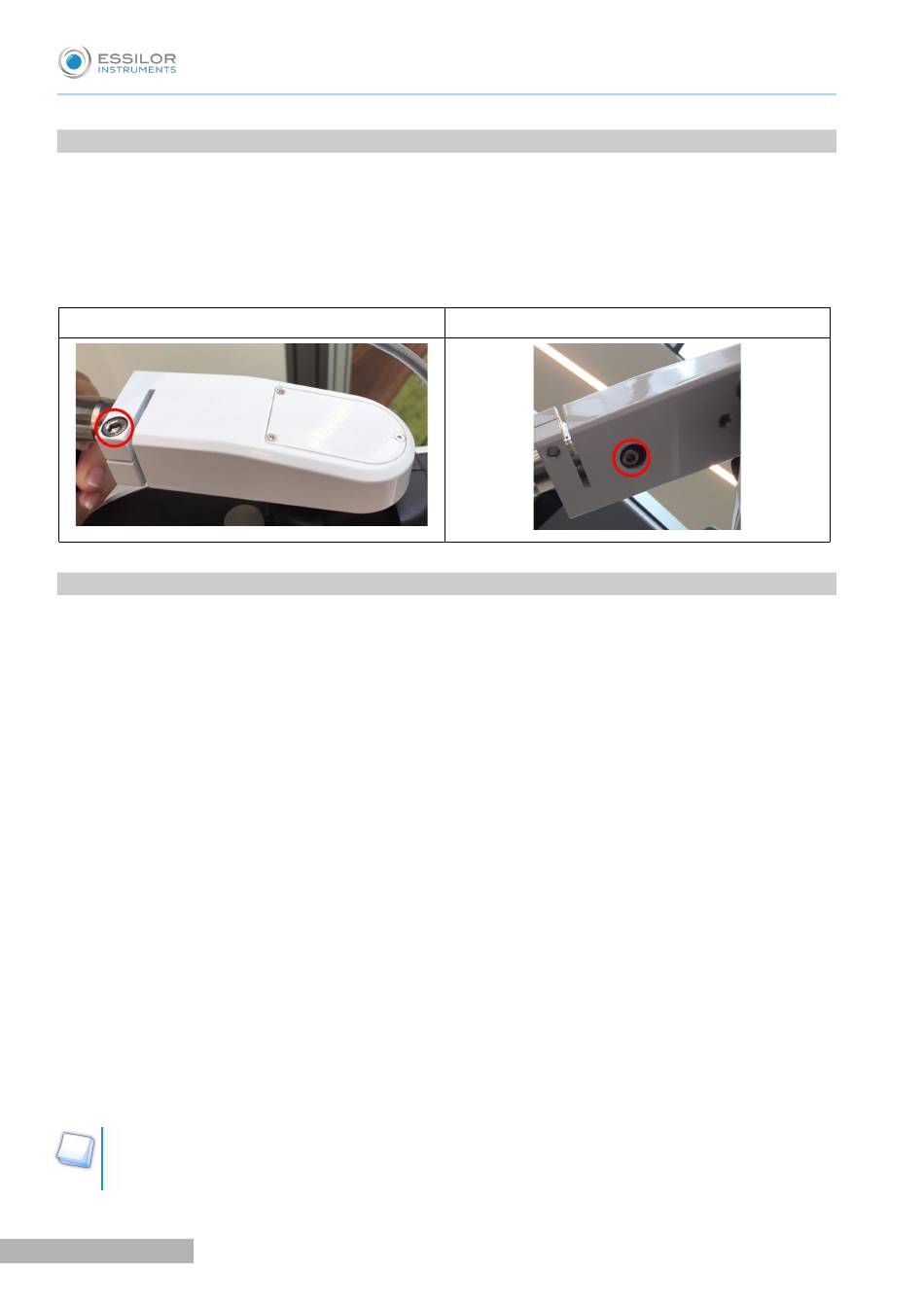

M6 screw (located above)
2. C
HECKING THE ACCESSORIES
While unpacking, check that the following standard accessories are included.
Standard accessories
• Communication cables:
◦ 1 electric cable running to the refraction head (2 m) with 1 extension (3 m)
◦ 1 electric cable running to the console (7 m), attached to the console
◦ 1 CBOX cable network running to the local area network
• Power cable (2 m)
• Face shield (x2)
• Forehead rest (x1)
• Near vision test chart (x1)
• Near vision chart support bracket (x1)
• Screw attachment of the head M6 (x1) and screw of safety M5 (x1)
• 6 side Allen wrenches M4 (x1) and M5 (x1)
• 2 protective covers (refraction head and console)
• 16 Gb USB key
• Quick start guide (x1)
Optional accessories
• Printer
• Printer paper (x5)
• C-Plug
Vision-R TM 800 is entirely compatible and designed to work with the CSPOLA600 and the CBOX test
presentation screens (with an Ethernet adaptor).
