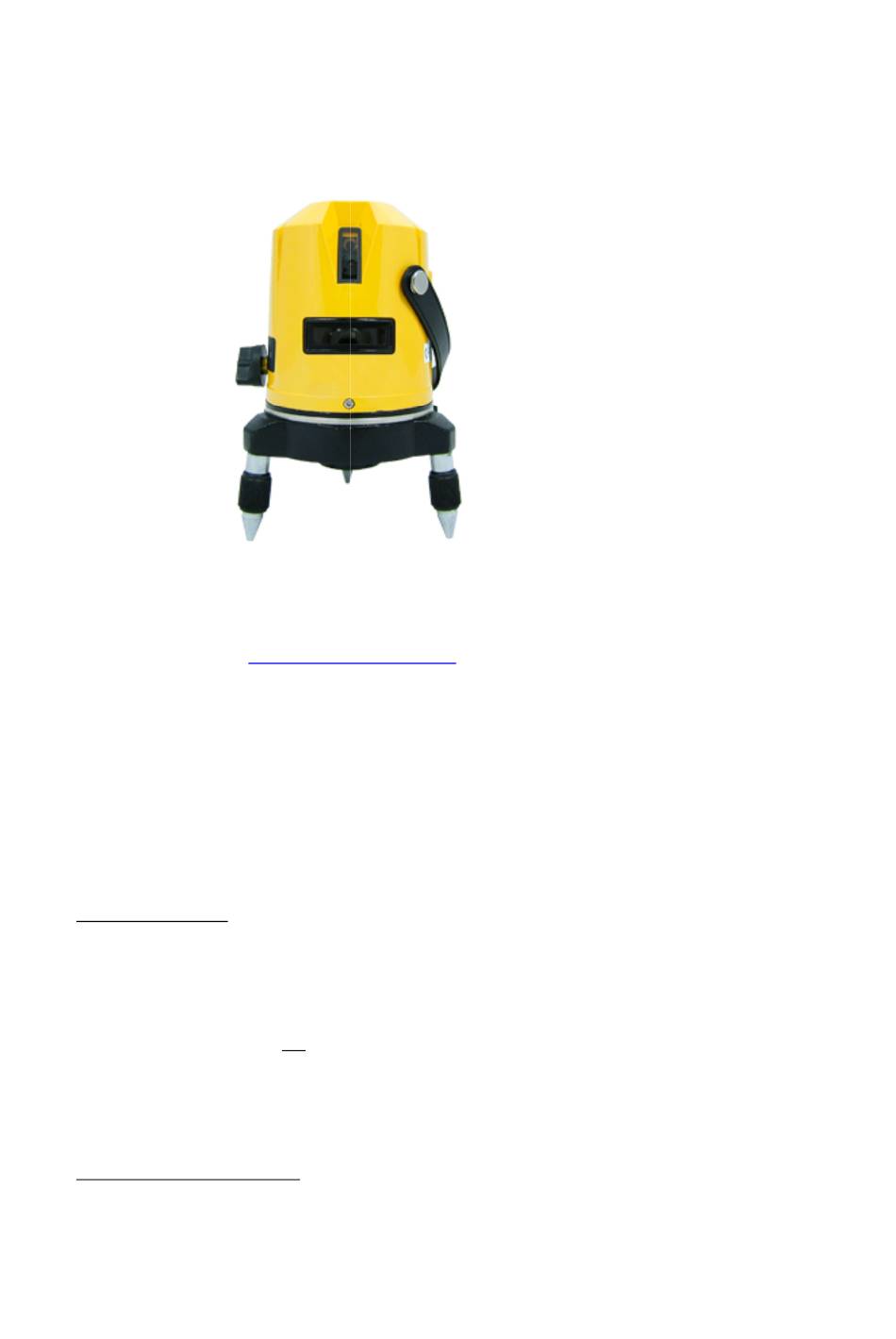

EK-226P

INSTRUCTIONS

Supplied by Laser Levels Online – The Laser Level Specialists

www.laser-level.co.uk

Tel: 08000 869 769

Thank you for purchasing the EK-226P automatic Cross Line Laser Level kit.

These instructions are intended to explain the quick basics to operating this

equipment. If you need any more information, or the unit requires calibration

or repair, then please contact our Service Dept on tel 01246 269 777 or

fax 01246 260 007. We are here to help.

Power source:

Unscrew the battery cover & remove carefully.

Fit 3 x type AA alkaline batteries. Take care with correct polarity as marked

on the case. Refit the battery cover. The EK-226P will accept rechargeable

batteries but there is no provision for charging in the laser. You will need to

charge these batteries externally. We would also recommend that a spare set

of batteries are kept in the carry case as a back-up.

Mount the EK-226P on a generally level, firm surface or 5/8" threaded Tripod.

(note: an adapter may be required) To operate correctly, this surface must be

within +/-3 deg of true horizontal. Use the top bubble level as a "guide".

Table of Contents

Do you have a question about the EK-226P and is the answer not in the manual?

Page 1 Positioning the Laser: Mount the EK-226P on a generally level, firm surface or 5/8” threaded Tripod. (note: an adapter may be required) To operate correctly, this surface must be...
Page 2 Principle of Operation: It is important to note that this bubble level does NOT set the accuracy of the level. The EK-226P has a fully automatic pendulum system to set true level. IF THE EK-226P EMITS CONTINUOUS RED LASER LINES ie. not flashing, THEN THEY WILL BE TRUE LEVEL &...
Page 3 Use with or without its staff mounting bracket. Spare brackets are available. Detector Procedure: SWITCH ON the *OUTDOOR button. Face the detector towards the EK-226P & find the centreline of the laser beams via the red pick-up window. Obtain a continuous tone for perfect level. Mark out.
Page 4 General Advice: This is an accurate measuring device - so to give good service, look after it! Prevent the EK-226P from receiving severe knocks, bangs or vibration. Store the laser & its accessories in the supplied, foam-lined carry case. If wet, dry before storing & keep in storage temperatures between 5 - 30 deg For long-term storage, remove all batteries - to prevent any internal damage.
