EK-268G
INSTRUCTIONS
from Laser Levels Online
www.laser-level.co.uk
Tel: 01246 269 777

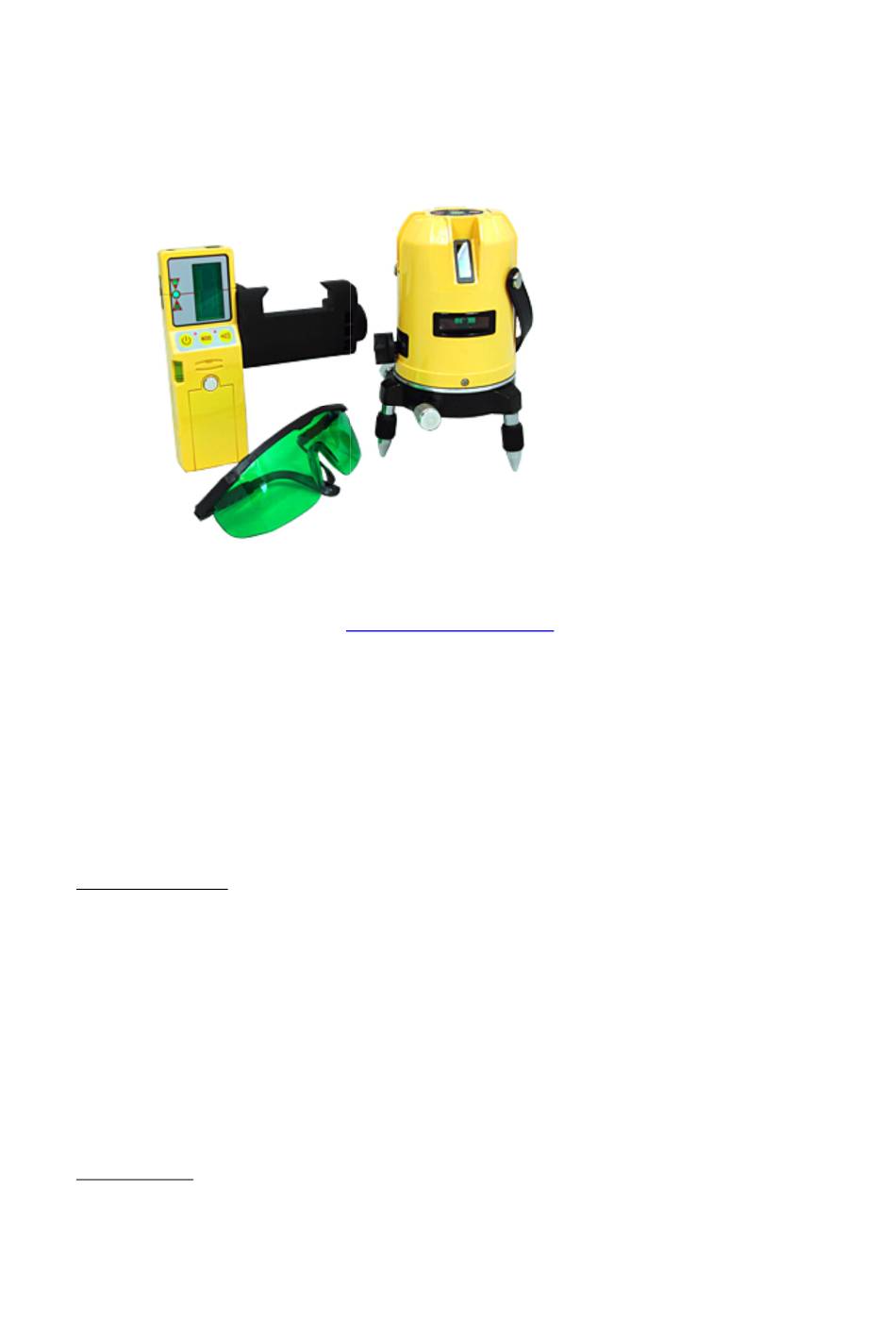

Thank you for purchasing the EK-268G automatic Cross Line Laser Level kit.
These instructions are intended to explain the quick basics to operating this
equipment. If you need any more information, or the unit requires calibration
or repair, then please contact our Service Dept on tel 01246 269 777 or
fax 01246 260 007. Email: sales@laser-level.co.uk We are here to help.
Power source:
The EK-268G is fitted with a high powered 1800mAh Lithium-ion (Li-ion)
battery, type FL-1B. Ensure it is located securely behind the battery cover and
NEVER substitute it for a different rated Li-ion battery.
Only use the supplied Mains Charger (AC/5V-1A DC) to charge the battery in
ambient temperatures above 5 deg C. The Charger itself has no LED indicator.
Plug the Charger into a 230V socket and connect DC plug into laser body.
Push & twist it firmly into the laser's socket to operate the charging LED:
RED indicator denotes the battery is CHARGING.
GREEN indicator denotes battery is partially CHARGED. Further charging to
reach full capacity is recommended, taking approx. 4 hrs.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fukuda EK-268G
Summary of Contents for Fukuda EK-268G
- Page 1 Tel: 01246 269 777 Thank you for purchasing the EK-268G automatic Cross Line Laser Level kit. These instructions are intended to explain the quick basics to operating this equipment. If you need any more information, or the unit requires calibration or repair, then please contact our Service Dept on tel 01246 269 777 or fax 01246 260 007.
- Page 2 Mains operated equipment is prohibited on-site. Positioning the Laser: Mount the EK-268G on a generally level, firm surface or a 5/8” threaded laser accessory eg. a Floor to Ceiling Pillar or Tripod. You may need to use the adapter.
- Page 3 To set Squaring: The EK-268G does have a squaring facility to set-out 90 degrees. Place the instrument on the floor & operate BOTH vertical lines. These will project along the floor (to set floor squaring), up the walls opposite & square on the ceiling above too.
- Page 4 General Advice: This is an accurate measuring device - so to give good service, look after it! Prevent the EK-268G from receiving severe knocks, bangs or vibration. Store the laser & its accessories in the supplied, foam-lined carry case. If wet, dry before storing & keep in storage temperatures between 5 - 25 deg For long-term storage, remove the Li-on battery - to prevent any internal damage.
- Page 5 We offer a full Back-up service including calibration & usage advice. Accessories for the various Trades are also available - on request. eg. Floor-to-ceiling Pillar kits, tripods, staffs, wall brackets & adapters etc. To contact us: Laser Levels Online, Unit 35 Bridge Business Centre, Beresford Way, CHESTERFIELD, S41 9FG.
