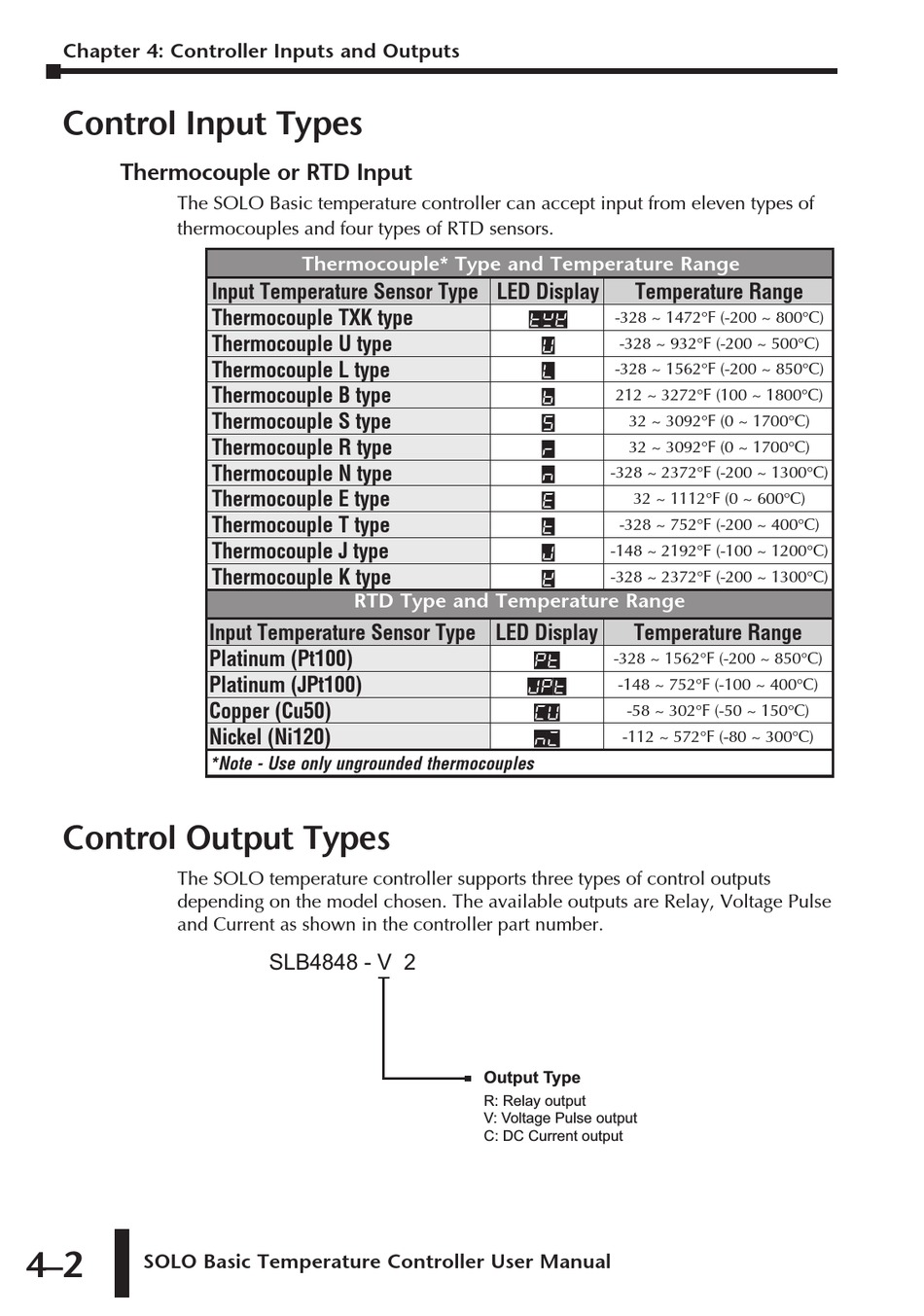

Chapter 4: Controller Inputs and Outputs

Control Input Types

Thermocouple or RTD Input
The SOLO Basic temperature controller can accept input from eleven types of
thermocouples and four types of RTD sensors.

Control Output Types

The SOLO temperature controller supports three types of control outputs
depending on the model chosen. The available outputs are Relay, Voltage Pulse
and Current as shown in the controller part number.
4–2
SOLO Basic Temperature Controller User Manual
Thermocouple* Type and Temperature Range
Input Temperature Sensor Type LED Display
Thermocouple TXK type
Thermocouple U type
Thermocouple L type
Thermocouple B type
Thermocouple S type
Thermocouple R type
Thermocouple N type
Thermocouple E type
Thermocouple T type
Thermocouple J type
Thermocouple K type
RTD Type and Temperature Range
Input Temperature Sensor Type LED Display
Platinum (Pt100)
Platinum (JPt100)
Copper (Cu50)
Nickel (Ni120)
*Note - Use only ungrounded thermocouples
SLB4848 - V 2
Temperature Range
-328 ~ 1472°F (-200 ~ 800°C)
txk
-328 ~ 932°F (-200 ~ 500°C)
u
-328 ~ 1562°F (-200 ~ 850°C)
l
212 ~ 3272°F (100 ~ 1800°C)
b
32 ~ 3092°F (0 ~ 1700°C)
s
32 ~ 3092°F (0 ~ 1700°C)
r
-328 ~ 2372°F (-200 ~ 1300°C)
n
32 ~ 1112°F (0 ~ 600°C)
e
-328 ~ 752°F (-200 ~ 400°C)
t
-148 ~ 2192°F (-100 ~ 1200°C)
j
-328 ~ 2372°F (-200 ~ 1300°C)
k
Temperature Range
-328 ~ 1562°F (-200 ~ 850°C)
pt
-148 ~ 752°F (-100 ~ 400°C)
jpt
-58 ~ 302°F (-50 ~ 150°C)
Cu
-112 ~ 572°F (-80 ~ 300°C)
ni
Output Type
R: Relay output
V: Voltage Pulse output
C: DC Current output
