Chapter 3: Keypad Operation and Setup Parameters

Display, LCD and Keypad

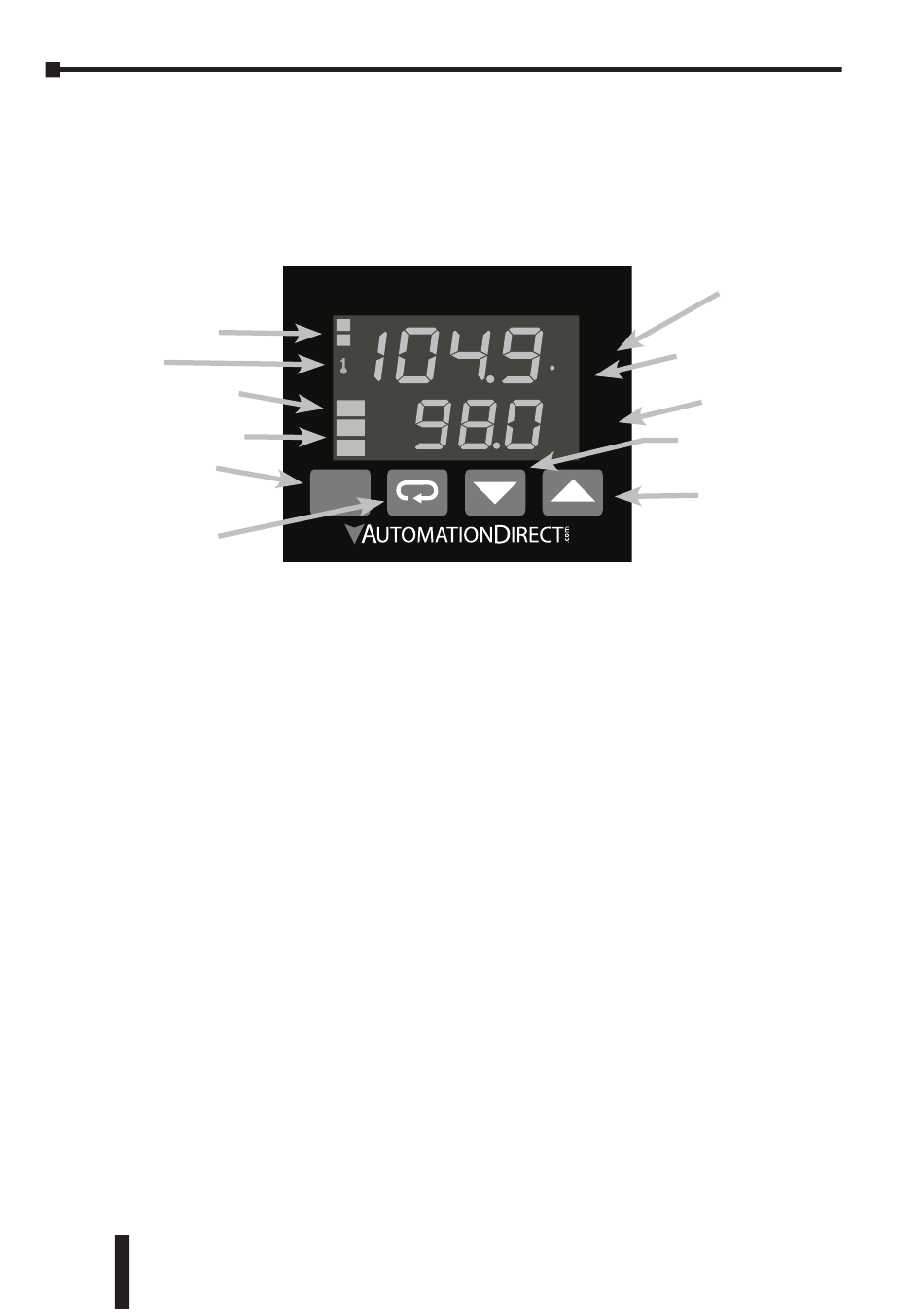

The SOLO temperature controller has a two color seven segment LCD display
and four function buttons.
ALM1, ALM2
Key Lock
Auto Tuning
OUT1, OUT2
SET Button
Rotate Button
PV Display
The Process Value Display. Displays the value from the input source or the
parameter source.
SV Display
The Set Value Display. Displays the set point of the process, the parameter
operation read value, manipulated variable, or the set value of the parameter.
A/M Indicator
A/M indicator flashes when the Auto Tuning operation is ON and is solid when
the controller is in Manual Mode.
OUT1, OUT2 Indicators
Output indicators light when the output is ON.
°F, °C Indicator
Temperature unit indicator. °C: Celsius, °F: Fahrenheit
1, 2 Indicators
Alarm output indicators light when appropriate alarm is activated.
Key Indicator
Key indicator lights when key lock is enabled.
