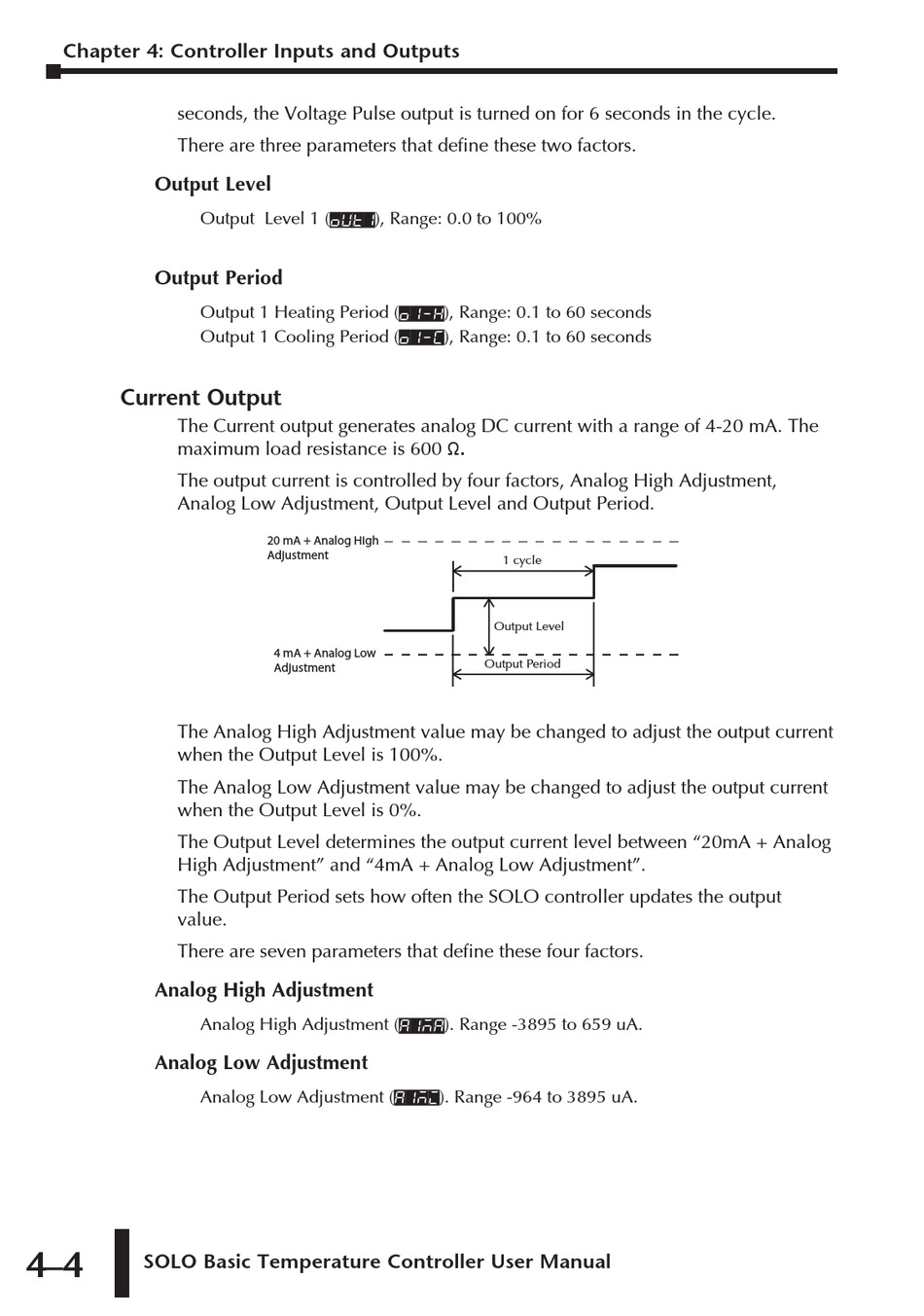

Automationdirect.com SOLO Basic User Manual page 36

Chapter 4: Controller Inputs and Outputs
seconds, the Voltage Pulse output is turned on for 6 seconds in the cycle.
There are three parameters that define these two factors.
Output Level
Output Period
Current Output
The Current output generates analog DC current with a range of 4-20 mA. The
maximum load resistance is 600
The output current is controlled by four factors, Analog High Adjustment,
Analog Low Adjustment, Output Level and Output Period.
The Analog High Adjustment value may be changed to adjust the output current
when the Output Level is 100%.
The Analog Low Adjustment value may be changed to adjust the output current
when the Output Level is 0%.
The Output Level determines the output current level between "20mA + Analog
High Adjustment" and "4mA + Analog Low Adjustment".
The Output Period sets how often the SOLO controller updates the output
value.
There are seven parameters that define these four factors.
Analog High Adjustment
Analog Low Adjustment
4–4
SOLO Basic Temperature Controller User Manual
Output Level 1 (
out1
Output 1 Heating Period (
Output 1 Cooling Period (
20 mA + Analog High
Adjustment
4 mA + Analog Low
Adjustment
Analog High Adjustment (
Analog Low Adjustment (
), Range: 0.0 to 100%
), Range: 0.1 to 60 seconds
o1-H
), Range: 0.1 to 60 seconds
o1-C
Ω.
1 cycle
Output Level
Output Period
). Range -3895 to 659 uA.
a1ma
). Range -964 to 3895 uA.
a1mi
