Chapter 3: Keypad Operation and Setup Parameters

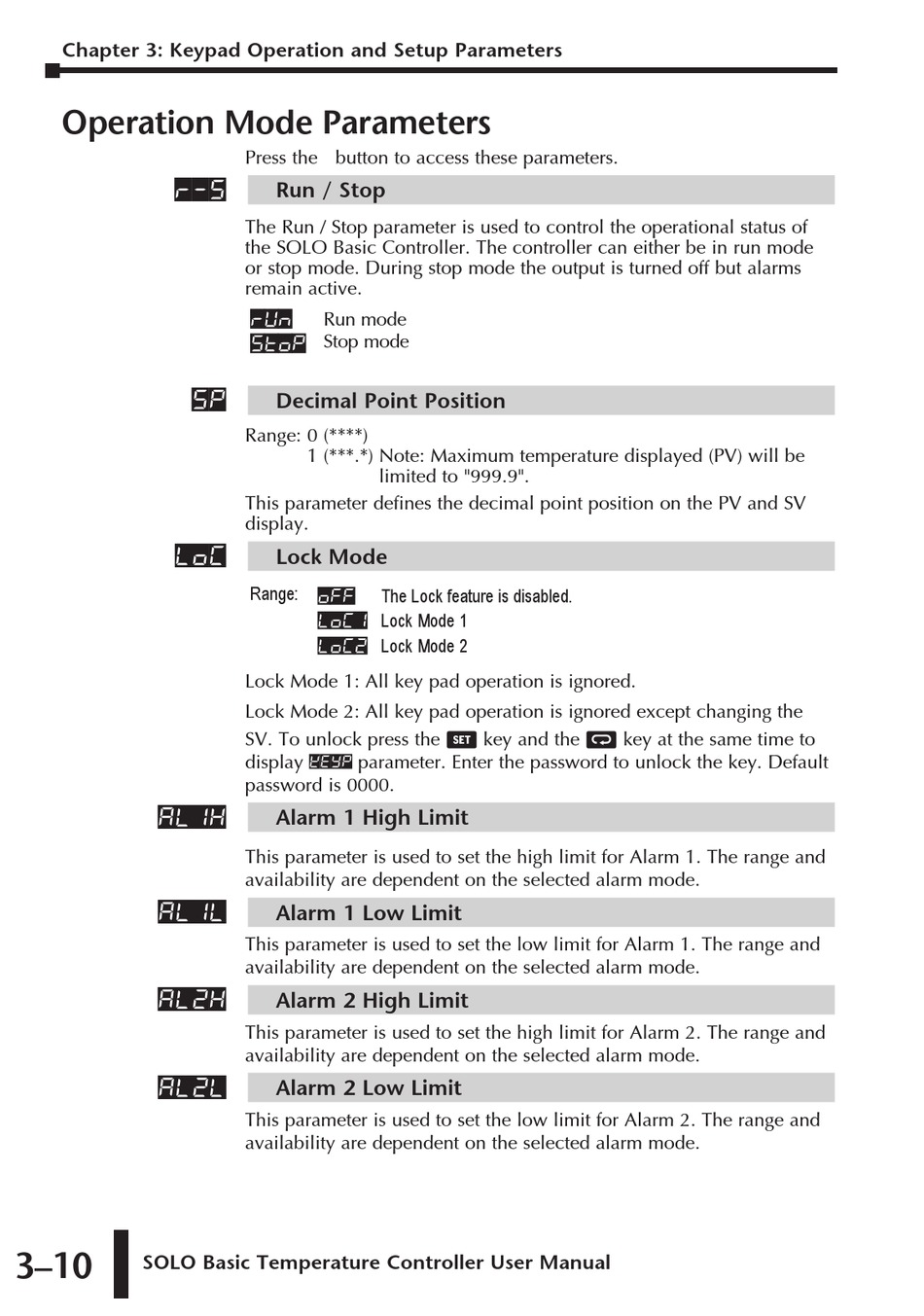

Operation Mode Parameters

r-s
loC
al1h
al1l
al2h
al2l
3–10
SOLO Basic Temperature Controller User Manual
Press the
button to access these parameters.
'
Run / Stop
The Run / Stop parameter is used to control the operational status of
the SOLO Basic Controller. The controller can either be in run mode
or stop mode. During stop mode the output is turned off but alarms
remain active.
Run mode
run
Stop mode
stop
Decimal Point Position
sp
Range: 0 (****)
1 (***.*) Note: Maximum temperature displayed (PV) will be
This parameter defines the decimal point position on the PV and SV
display.
Lock Mode
Range:
off
loC1
LoC2
Lock Mode 1: All key pad operation is ignored.
Lock Mode 2: All key pad operation is ignored except changing the
SV. To unlock press the
display KEYP parameter. Enter the password to unlock the key. Default
password is 0000.
Alarm 1 High Limit
This parameter is used to set the high limit for Alarm 1. The range and
availability are dependent on the selected alarm mode.
Alarm 1 Low Limit
This parameter is used to set the low limit for Alarm 1. The range and
availability are dependent on the selected alarm mode.
Alarm 2 High Limit
This parameter is used to set the high limit for Alarm 2. The range and
availability are dependent on the selected alarm mode.
Alarm 2 Low Limit
This parameter is used to set the low limit for Alarm 2. The range and
availability are dependent on the selected alarm mode.
limited to "999.9".
The Lock feature is disabled.
Lock Mode 1
Lock Mode 2
key and the
;
key at the same time to
'
