Step 4: Securing The Irrigation Unit; Step 5: Feeding The Long Hose; Step 6: Attaching The Hose Holder - OLT Automatic Watering System Assembly Instructions Manual

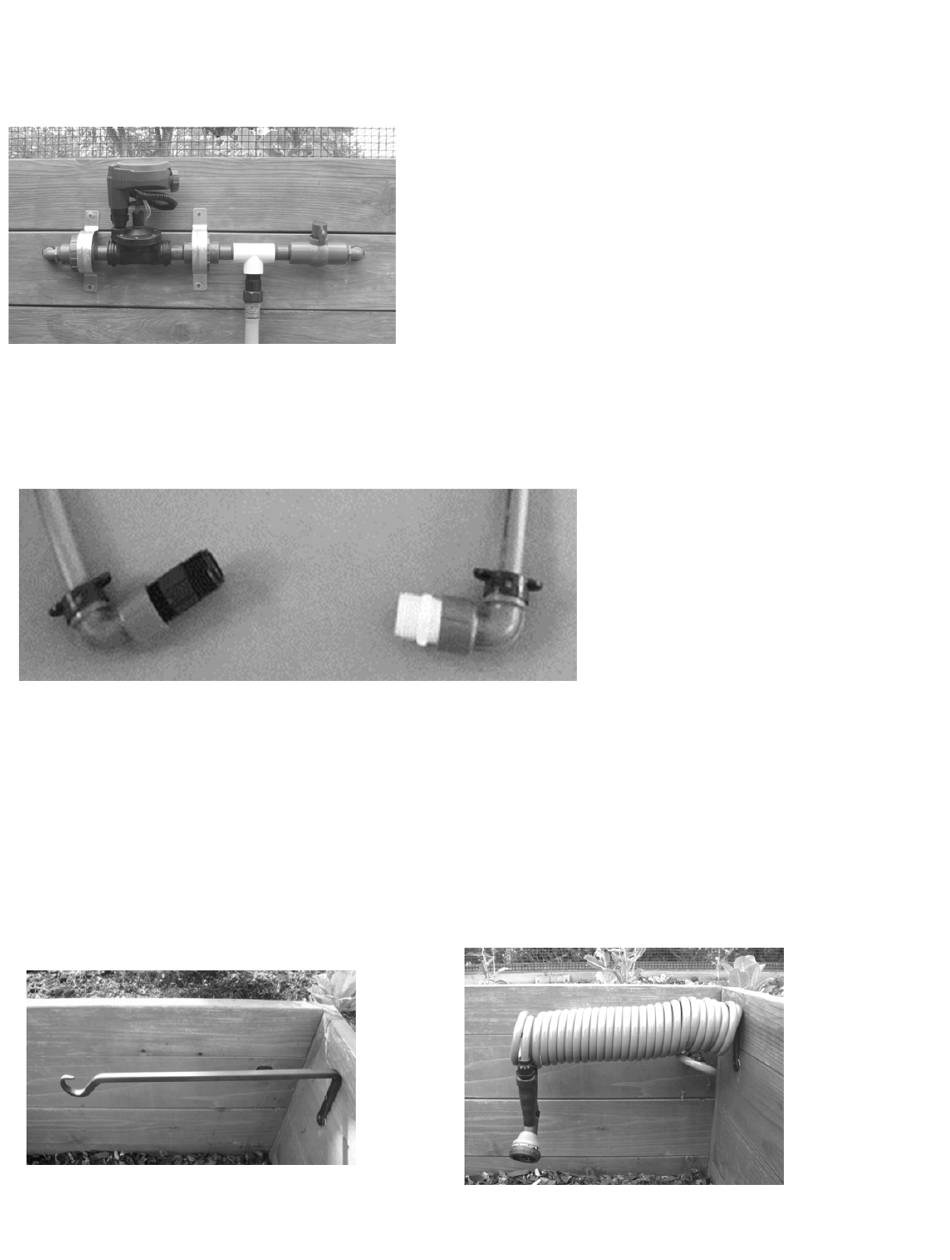

Step 4 - Put the tubing through the circular holes on the outside panel. Locate the two straps and place them
around the unions. Use the straps with washers and 1-1/4" screws to secure the irrigation unit to the outside
of the garden structure. Don't overtighten!
Step 5 – The long hose will feed through the other ¾" hole on the inside panel. Long hose may need to be cut
shorter so it extends 1" past inside panel. Attach 90 degree elbow with hose nipple to each blue hose end on
the inside. See picture below.
Step 6 – Next attach the hose holder at the location shown in picture below.
Standing inside the garden, measure 6" down and 6" from the end of the applicable board and mark the spot.
Attach the hose holder to the board just marked.
Place the coil hose around the hose holder. Then connect the female end of the coil hose to the black hose
adaptor that is attached to the 48" piece of tubing. Attach the vegetable sprayer to the male end of the coil
hose.
