You will need the following items to complete the assembly:
1) Pliers
2) Pencil
3) 3/4" Spade Bit (See Step 3)
4) Screw Driver / Screw Gun with square bit.
5) 2 AA batteries
Note - The irrigation system works best if the psi is between 10 and 80. If the psi is greater than 80, then a
pressure regulator (not included) should be installed before connecting the water source to the garden.
Preparation

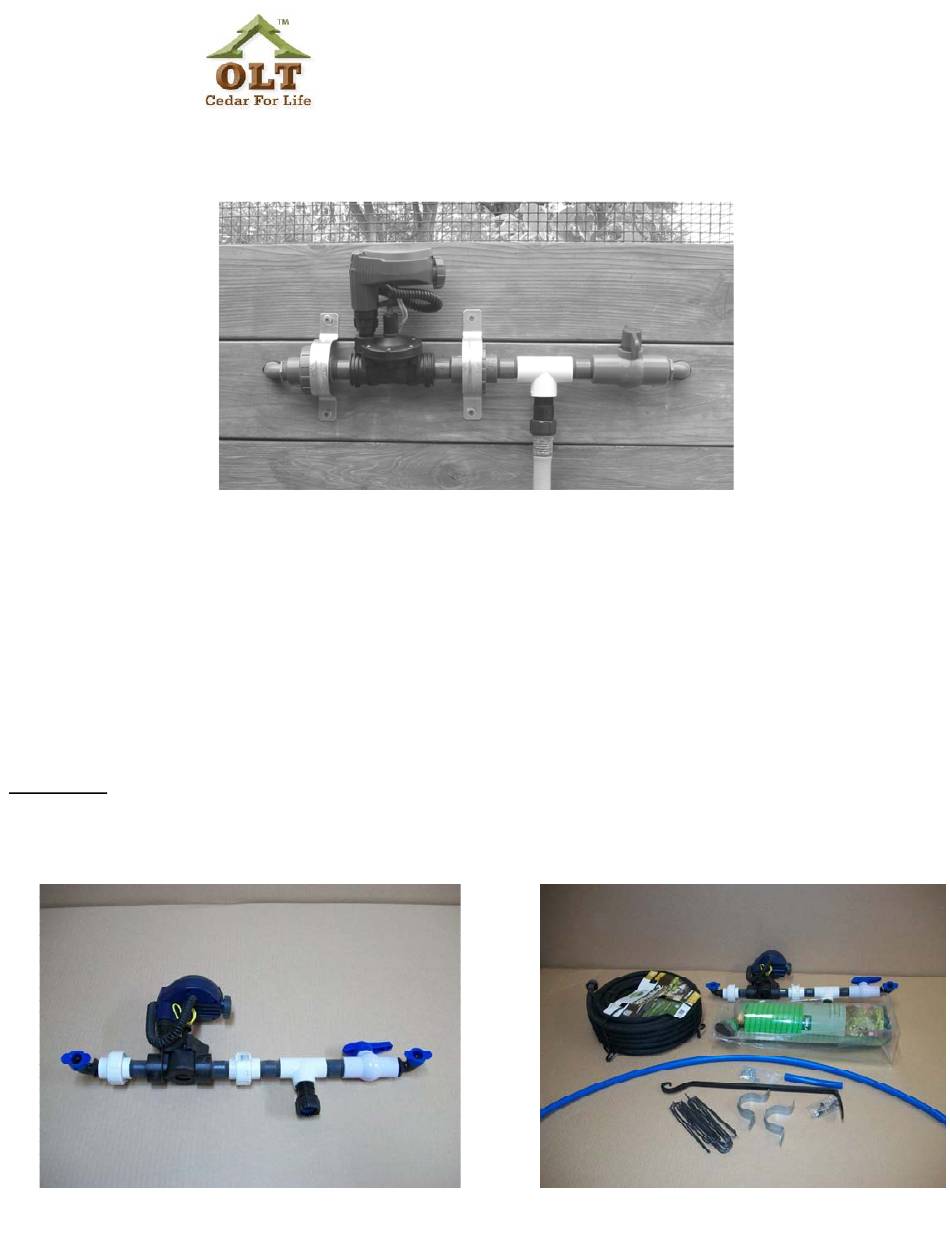

Remove the timer, connected fittings and all other parts from the box and review the timer instructions.
Assembly Instructions for Automatic Watering System
(To Be Added to your Garden in a Box Kit)
April 16/2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OLT Automatic Watering System
Summary of Contents for OLT Automatic Watering System
- Page 1 April 16/2019 Assembly Instructions for Automatic Watering System (To Be Added to your Garden in a Box Kit) You will need the following items to complete the assembly: 1) Pliers 2) Pencil 3) 3/4” Spade Bit (See Step 3) 4) Screw Driver / Screw Gun with square bit.
- Page 2 It will be necessary to drill three holes through the lumber in order to install the automatic watering system. See Page 3 illustrations indicating where holes need to be drilled.
- Page 3 Step 3 – Start with the interior panel first, with a ¾” Space Bit, drill 4” down and 2 3/8” from the end. Now drill the outside panel holes following the illustration above. One hole will be drilled 1” from the inside of the 2x2 frame and second is approximately 18 ¾”...
- Page 4 Step 4 - Put the tubing through the circular holes on the outside panel. Locate the two straps and place them around the unions. Use the straps with washers and 1-1/4” screws to secure the irrigation unit to the outside of the garden structure.
- Page 5 Step 7 - Place two AA batteries (not included) in the controller and set the controller according to the manufacturer’s instructions. We recommend watering the garden twice a day for 2 - 4 minutes each time. Connect a garden hose to the garden hose adaptor at the T-fitting to test the system. Twist the shut off valve open to flush out any rocks or debris that might have gotten into the pipes.
- Page 6 ONE YEAR PRO-RATED LIMITED WARRANTY AND TERMS AND CONDITIONS 1. LIMITED WARRANTY & REMEDIES 1.1 LIMITED WARRANTY. For a period of one year from the date of purchase, Outdoor Living Manufacturing Ltd. (OLM Ltd.) warrants the Garden Product against defects in materials or workmanship, which occur during normal use.
