Thank you for purchasing a 12'x8'
Garden In A Box. Please take the
time to identify all the parts prior to
assembly.
Safety Points and Other Considerations
Please follow this instruction manual when
assembling your Garden in a Box and retain
the manual for future maintenance purpos-
es.
Please use Safety Eyewear and Gloves
while Assembling. Be sure to read and
follow all operating instructions for any
tools used during assembly.
Remember - NO SAW CUTTING IS
REQUIRED!
C
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support
Line @ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you
to courier replacement parts, free of charge, within 10 business days of this notification.
Replacement parts will not be provided free of charge after the 30 day grace period.
Outdoor Living Today
12'X8' - 2x4 Model Garden In A Box
Assembly Manual
Licensed Under US PATENTS 7,424,787; 7,490,435
B
F
D
www.outdoorlivingtoday.com
Estimated Assembly Time for the
Garden in a Box = 5 Hours.

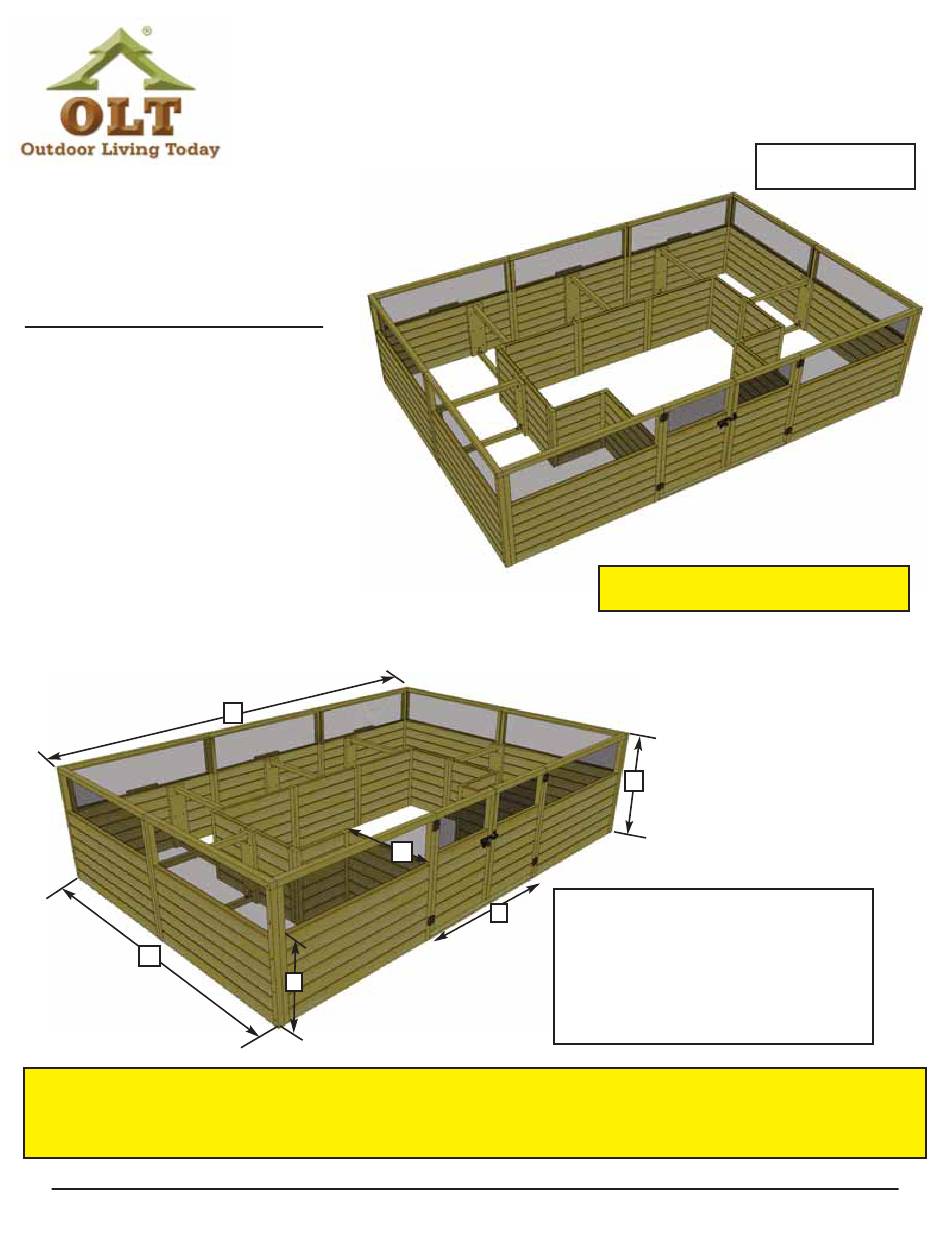

Garden in a Box Dimensions:
E
A: Height = 33 1/2"
B: Outside Width = 141"
C: Outside Depth = 92"
D: Height to Bottom of Screen = 21"
E: Door Width = 46"
F: Length of Inner Panel Sections = 60"
Page 1
Revision #6
May 26 2021
A
sales@outdoorlivingtoday.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OLT 12'x8' Garden In A Box
Summary of Contents for OLT 12'x8' Garden In A Box
- Page 1 12’X8’ - 2x4 Model Garden In A Box Assembly Manual Licensed Under US PATENTS 7,424,787; 7,490,435 Revision #6 May 26 2021 Thank you for purchasing a 12’x8’ Garden In A Box. Please take the time to identify all the parts prior to assembly.
-
Page 2: Hardware Kit
Exploded View & Parts List for 12’x8’ Garden In A Box Parts List Exploded View Panel Section Part A 9 - Side/Rear Panels 46” wide x 33 1/2” high Part C 2 - Door Panels 22 3/4” wide x 31 1/2” high Part D1 2 - Interior Panels (Rear) 41 1/2”... - Page 3 Important Information For Homeowner Selecting A Location - Garden Setting Or Patio 92” Walk around your property and make notes of the following: - Sunny spots. - Slope of the land. - Light blocking trees and high buildings. Don’t hide your Garden away in a dark corner. Ensure you have easy access to it.
- Page 4 Parts (Steps 1 - 8) Hardware (Steps 1 - 2) Orientate Side/Rear Panels and Door Panels A - Side/Rear Panels S1 - 2 1/2” Screws as illustrated (their Screens positioned to the (46” x 33 1/2”) x 9 x 1 total inside).
- Page 5 Hardware (Steps 3 - 4) Attach panels completely together using 4 additional 2 1/2” Screws evenly S1 - 2 1/2” Screws spaced on panel framing. Make sure panels are aligned prior to screwing. x 9 total Pre-drill first to prevent wood from splitting. Important: Be sure to level the ground so panels sit evenly.
- Page 6 Hardware (Steps 5 - 6) Align and attach the 3rd Rear Panel S1 - 2 1/2” Screws as per Step 4. Use 5 - 2 1/2” Screws to x 10 total secure. Important: Be sure to level the ground so panels sit evenly. Align and attach the 2nd Side Panel to the 3rd Rear Panel as per Step 2 &...
- Page 7 Hardware (Steps 7 - 8) Align and attach the remaining 3rd & 4th S1 - 2 1/2” Screws Side Panels as per Step 4 & 5, to the current x 20 total secured Side Panels. Use 5 - 2 1/2” Screws per panel to secure.
- Page 8 Interior Panel framing flush with Front Panel Framing. Important: Be sure to level the ground so panels sit evenly. Parts (Steps 9 - 13) Locate all 8 Interior Panels. Align frame of the 2 D1 - Interior Panels (Rear) (41 1/2” x 21”) x 2 Front Interior Panels with the inside of the frame of D2 - Interior Panels (Sides) (32 1/8”...
- Page 9 Align and attach both Side Interior Panels as per Step 9 & 10. Attach with 3 - 2 1/2” Screws per panel. Align and attach both Rear Interior Panels to the frame of the previous Side Interior Panels, as per Step 9, 10, & 11. Attach with 3 - 2 1/2”...
- Page 10 Part F Bed Rib Connection Plates. 2 1/2” screw Part G Bed Rib Frame. Parts (Steps 14 - 16) To complete rib assembly, locate all 10 Bed Rib F - Bed Rib Connecting Plates Connecting Plates and 10 Bed Rib Frames (1 1/16”...
- Page 11 6 - 2 “ Screws. Important: Do not over screw! Complete both sides. Important: Do not align connection plate on vertical wall framing. Offset as shown. Flush with bottom. Hardware (Steps 9 - 13) Lift and position completed short Bed Rib Frame and place SS1 - 1”...
- Page 12 Hardware (Step 19) Locate the Door Panels from Step 1 and position SB1 - 3/4” Black Headed Screws x 12 Pcs. on flat surface screen down. Attach both hinges to door Y7 - Plastic Hinge x 4 Pcs. panel with 3 - 3/4” Black Headed Screws per hinge. Space hinges evenly on door frame.
- Page 13 Parts (Step 21) Attach Door Threshold directly below front I - Door Threshold (3/4” x 3 1/2” x 46”) x 1 doors, flush with front wall framing. Use 4 - 1” Screws Hardware (Step 21) and 1 - Brackets per end of the door threshold. SS1 - 1”...
- Page 14 Attach Black Barrel Bolt (male and female pieces) to door and front wall panel frame with 6 - 3/4” Black Headed Screws. Pre-drill first to prevent wood from splitting. Do a dry run first to con- firm fit before attaching. Front Wall framing.
- Page 15 We hope your experience constructing our 12’x8’ Garden In A Box has been both positive and rewarding. We value your feedback and would like to hear back from you on how well we are doing in the We now recommend you to line the inner walls of your following areas: Garden in a Box with landscape fabric or plastic sheeting (not provided) before filling with soil.
