Thank you for purchasing a 6' x 3'
Raised Garden Bed Trellis/Lid Kit.
Please take the time to identify all
the parts prior to
assembly.
Please use Safety Eyewear and Gloves
while assembling. Be sure to read and
follow all operating instructions for any
tools used during assembly.
Remember- NO SAW CUTTING IS
REQUIRED!
Safety Points and Other Considerations
Please follow this instruction manual when
assembling your Raised Garden Bed and
retain the manual for future maintenance
purposes.
In the event of a missing or broken piece, simply call the Outdoor Living Today
Customer Support Line @ 1-888-658-1658 within 30 days of the delivery of your
purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Outdoor Living Today
A
C
B
www.outdoorlivingtoday.com

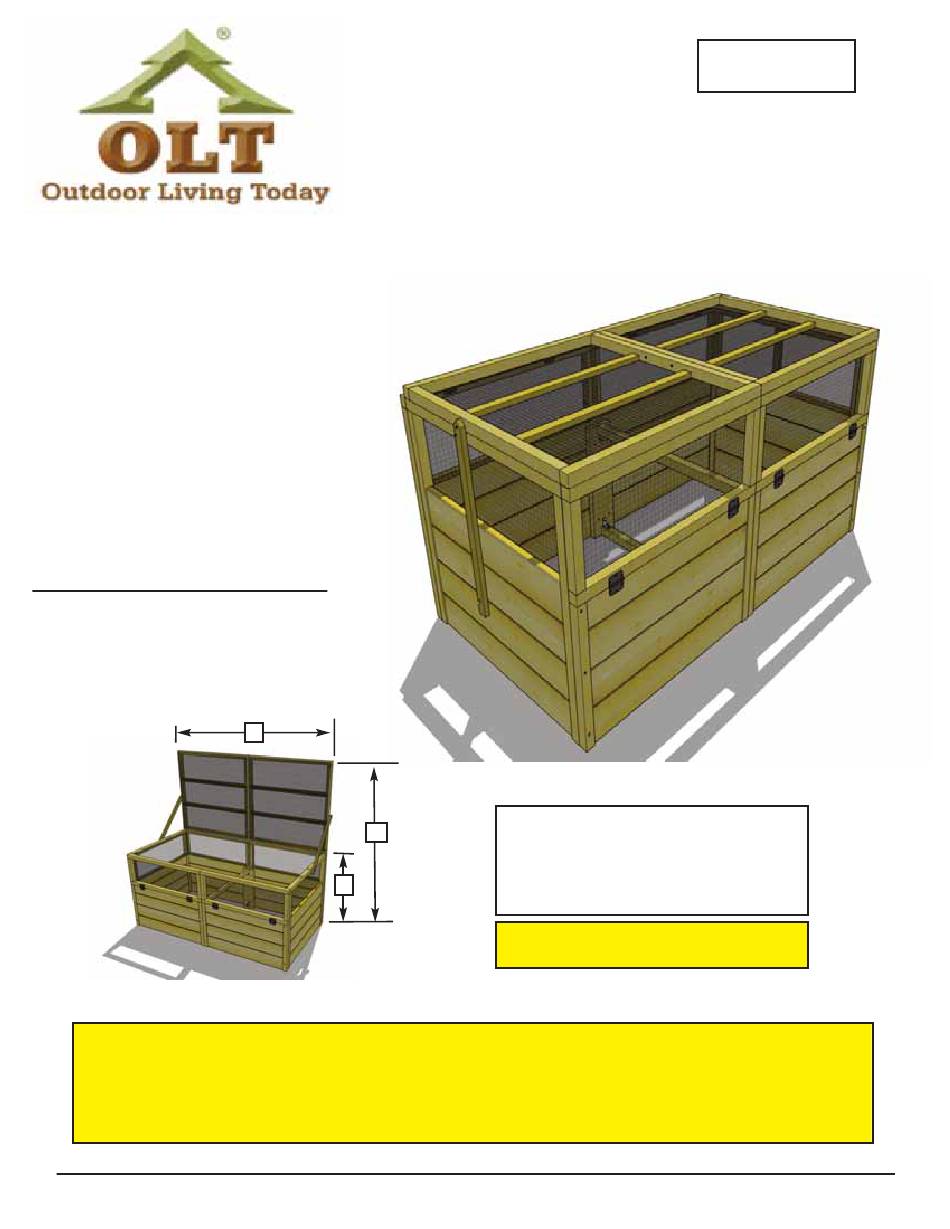

6'X3' Garden in a Box
Trellis / Lid Kit
Item# RB63T
Licensed Under U. S. PATENT No. RE44055
Trellis/Lid Dimensions:
A: Width = 72"
B: Height with Lid Closed = 35"
C: Height to top of Trellis = 71"
Estimated Assembly Time for the
Lid/Trellis Option = 1/2 Hour.
Page 1
Revision #3
March 19th, 2018
sales@outdoorlivingtoday.com
Advertisement
Related Manuals for OLT RB63T
Summary of Contents for OLT RB63T
- Page 1 Revision #3 March 19th, 2018 6’X3’ Garden in a Box Trellis / Lid Kit Item# RB63T Licensed Under U. S. PATENT No. RE44055 Thank you for purchasing a 6’ x 3’ Raised Garden Bed Trellis/Lid Kit. Please take the time to identify all the parts prior to assembly.
-
Page 2: Hardware Kit
Exploded View and Parts List for Trellis/Lid Kit Parts List Part A 2 - Trellis/Lid Panels 36” wide x 37 1/2” high Part B 4 - Plastic Hinges Part C 2 - Trellis/Lid Arms 3/4” t x 1 1/2” w x 26” l Part D 1 - Rear Trellis Cleat 3/4”... - Page 3 Orientate Trellis/Lid Panels - Part A (screen down) as illustrated below on flat level ground. Align so vertical framings are tight together. Use wood clamp to hold framings together. Tight together Screw panels together with 4 - 2” Screws as shown above. Place completed Trellis/Lid on top of raised bed framing as shown above.
- Page 4 With Trellis/Lid evenly positioned on raised bed framing, locate 4 Black Plastic Hinges - Part B and 24 - 3/4” Black Screws. Align 1st hinge with counter sunk holes facing up. Position hinge approx. 5” from end. Attach to top framing of 6x3 raised bed with 3 - 3/4” Black Screws per hinge. Pre-drill shallow hinge holes first with 1/8”...
- Page 5 Spacer To install Trellis/Lid Arms (C), measure 16” up from bottom and 17” from the rear of panel. Pre-drill shallow 1/8” hole 3/8” from top of framing to help you position arm. Locate Trellis/Lid Arm Spacer and position next to framing. Screw top of arm to Trellis/Lid panel with 1 - 2”...
- Page 6 Note; Rear Trellis Cleat is only required when you plan to use Trellis in the up position for an extended period of time. Not required of you plan on opening and closing your lid often. If required, locate Rear Trellis Cleat (D). Center on 6x3 Raised Bed center framing and Trellis/Lid panel framing.
