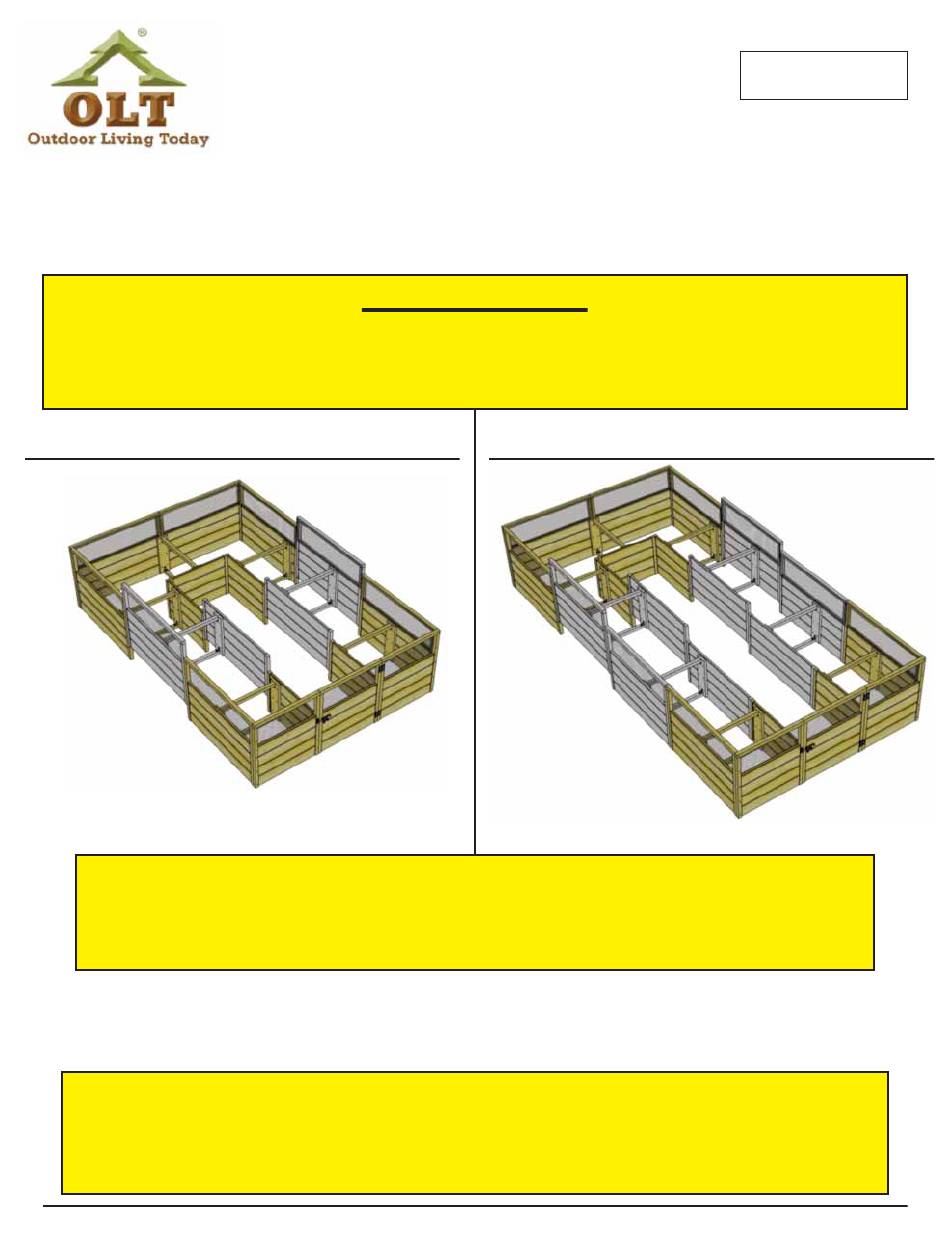

If you purchased an 8'x12' Garden in a Box go to Page 2 for Assembly Manual.
If you purchased an 8'x16' Garden in a Box go to Page 16 for Assembly Manual.
8'x12' Garden in a Box - Base Kit + 1 Extension
If you ordered an 8'x12' Garden in a Box, you will receive 1 - 4ft Extension Box.
If you ordered an 8'x16' Garden in a Box, you will receive 2 - 4ft Extension Boxes.
The Base Kit is contained in Boxes 1 - 3.
In the event of a missing or broken piece, simply call the Outdoor Living Today
Customer Support Line @ 1-888-658-1658 within 30 days of the delivery of your
purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Outdoor Living Today
8'x12' Garden in a Box
8'x16' Garden in a Box
Assembly Manual
Licensed under US PATENTS 7,424,787; 7,490,435
IMPORTANT
www.outdoorlivingtoday.com
and
8'x16' Garden in a Box - Base Kit + 2 Extensions
Page 1
Revision #1.0
April 27, 2021
