Step 1: Connecting Tubing; Step 2: Timer Assembly Installation - OLT Automatic Watering System Assembly Instructions Manual

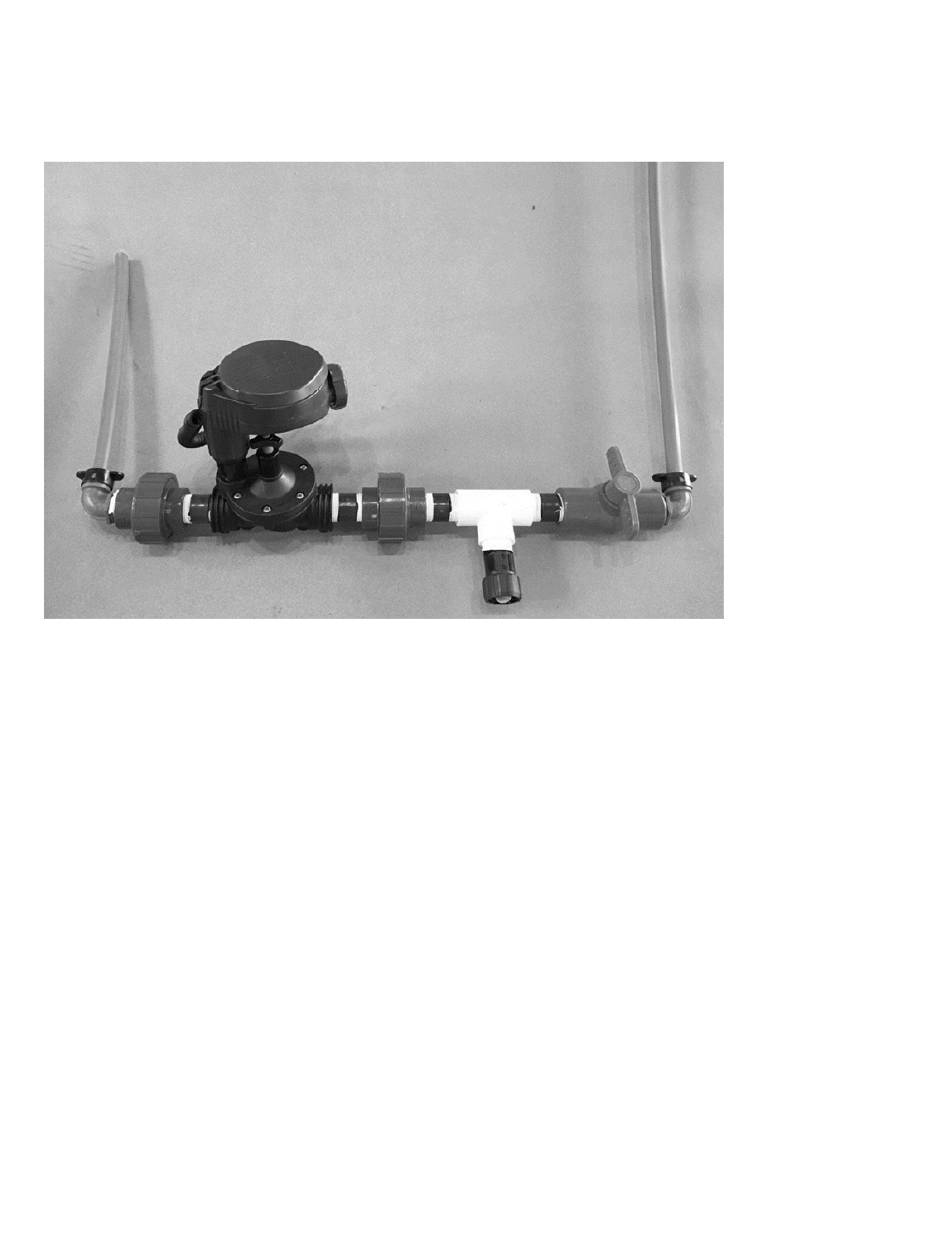

Step 1 - Locate the two pieces of tubing. Connect the 4" piece to the blue fitting on the left by firmly pressing
the tubing into the blue fitting. Connect the 48" piece of blue tubing into the blue fitting that is on the right, by
the shut-off valve, again firmly pressing the tubing into the blue fitting.
Step 2 - The timer assembly can be attached to either the right or left side of your garden structure. The coil
hose will be mounted near the top of the raised bed, inside the walkway. It will be necessary to drill three holes
through the lumber in order to install the automatic watering system. See Page 3 illustrations indicating where
holes need to be drilled.
