Summary of Contents for FONESTAR SA-403

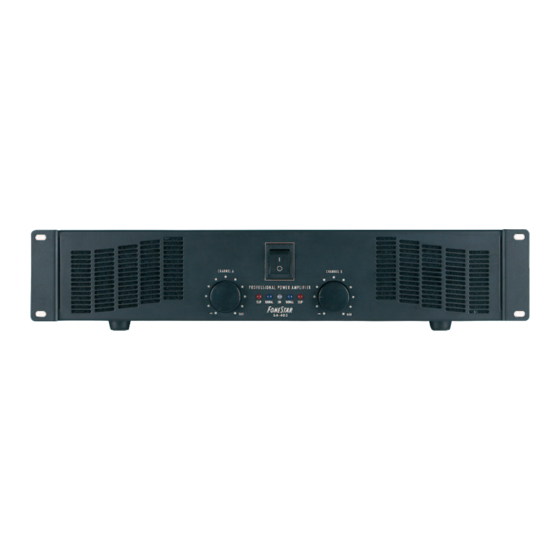

- Page 1 SA-403, SA-723, SA-1003 and SA-1253 PROFESSIONAL STEREO OR MONO POWER AMPLIFIER N Instruction manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel
DESCRIPTION High quality professional power amplifier for stereo or mono use. CONTROLS AND FUNCTIONS FRONT PANEL CHANNEL A and CHANNEL B: volume controls. They are used to control the output volume, independently for each channel. It is recommended that you do not turn them up to the maximum; the best position is at the ¾ position. POWER: power switch. -
Page 5: Back Panel
BACK PANEL 1.- FUSE: if you need to change the fuse, change it for one of the same characteristics (shown on the back panel). 2.- Channels A and B stereo output: speaker output through 4-contact SPEAKON connectors or Red- Black screw terminals. In the SPEAKON connector connect the 1+ terminal to the positive speaker terminal and the terminal 1- to the negative speaker terminal. -
Page 6: Specifications
SPECIFICATIONS SA-403 SA-723 SA-1003 SA-1253 CHARACTERISTICS Professional stereo or mono power amplifier. POWER 200 + 200 W RMS at 4 Ω 360 + 360 W RMS at 4 Ω 500 + 500 W RMS at 4 Ω 625 + 625 W RMS at 4 Ω... -
Page 7: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
