Servo Bias Input and Wiring

The DBu input preamp is a unique design that delivers
audible improvements over conventional transmitter
inputs, is easier to use and much harder to overload.
It is not necessary to introduce pads on some mics
to prevent overload of the input stage, divide the bias
voltage down for some low voltage mics, or reduce the
limiter range at minimum gain settings.
Two different microphone wiring schemes are available
to simplify and standardize the configuration. Simpli-
fied 2-wire and 3-wire configurations provide several
arrangements designed for use only with servo bias
inputs to take full advantage of the preamp circuitry.
Other wiring schemes are compatible with Servo Bias
and conventional inputs.
A line level input wiring provides an extended frequency
response with an LF roll-off at 35 Hz for use with instru-
ments and line level signal sources.

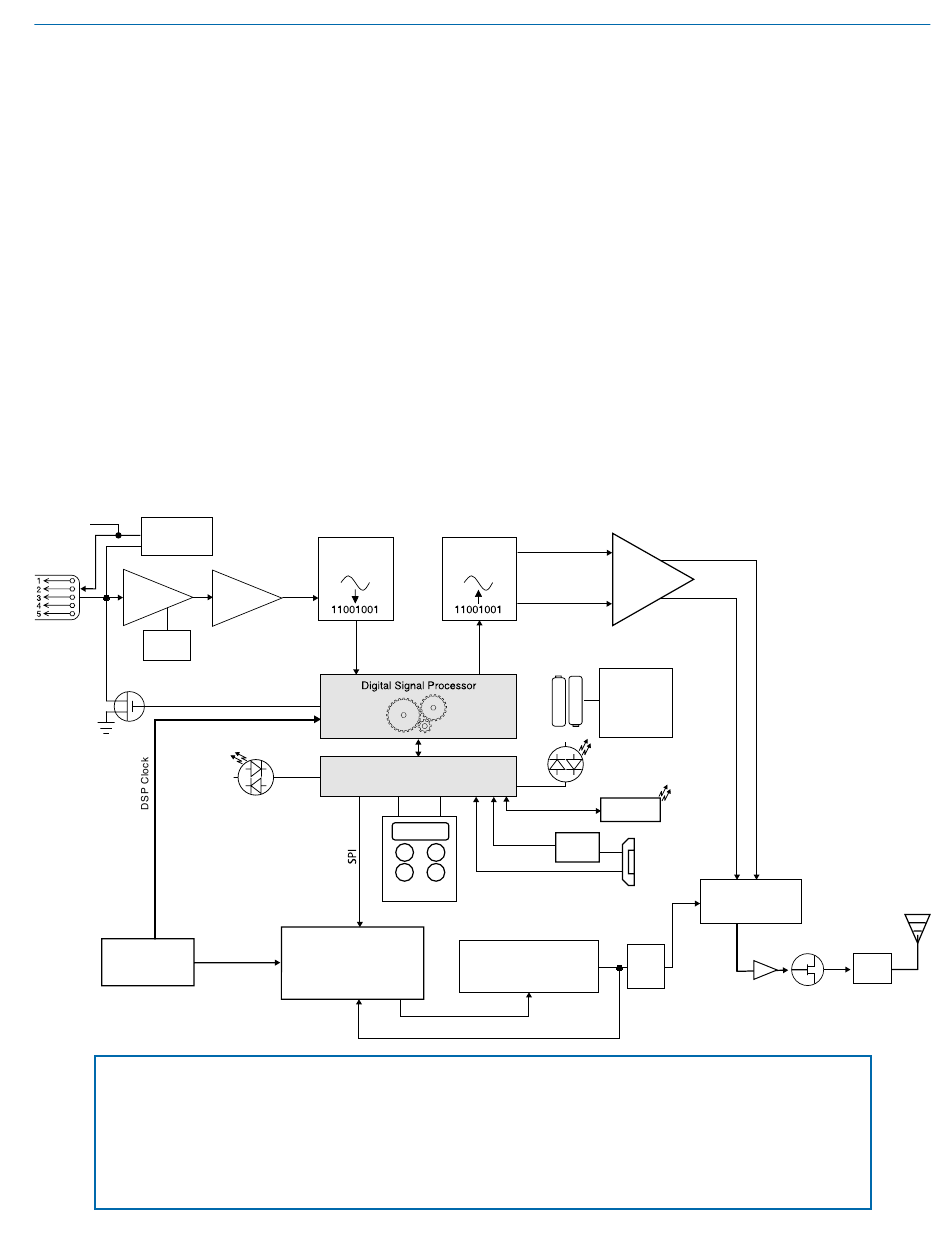

DBu Block Diagram

+5V
Servo Bias
Supply
Input
Jack
Input
Preamp
Gain
Adj
Shunt
Limiter Control
Limiter
PLL Ref
Oscillator
VCTXO
36.864 mHz
