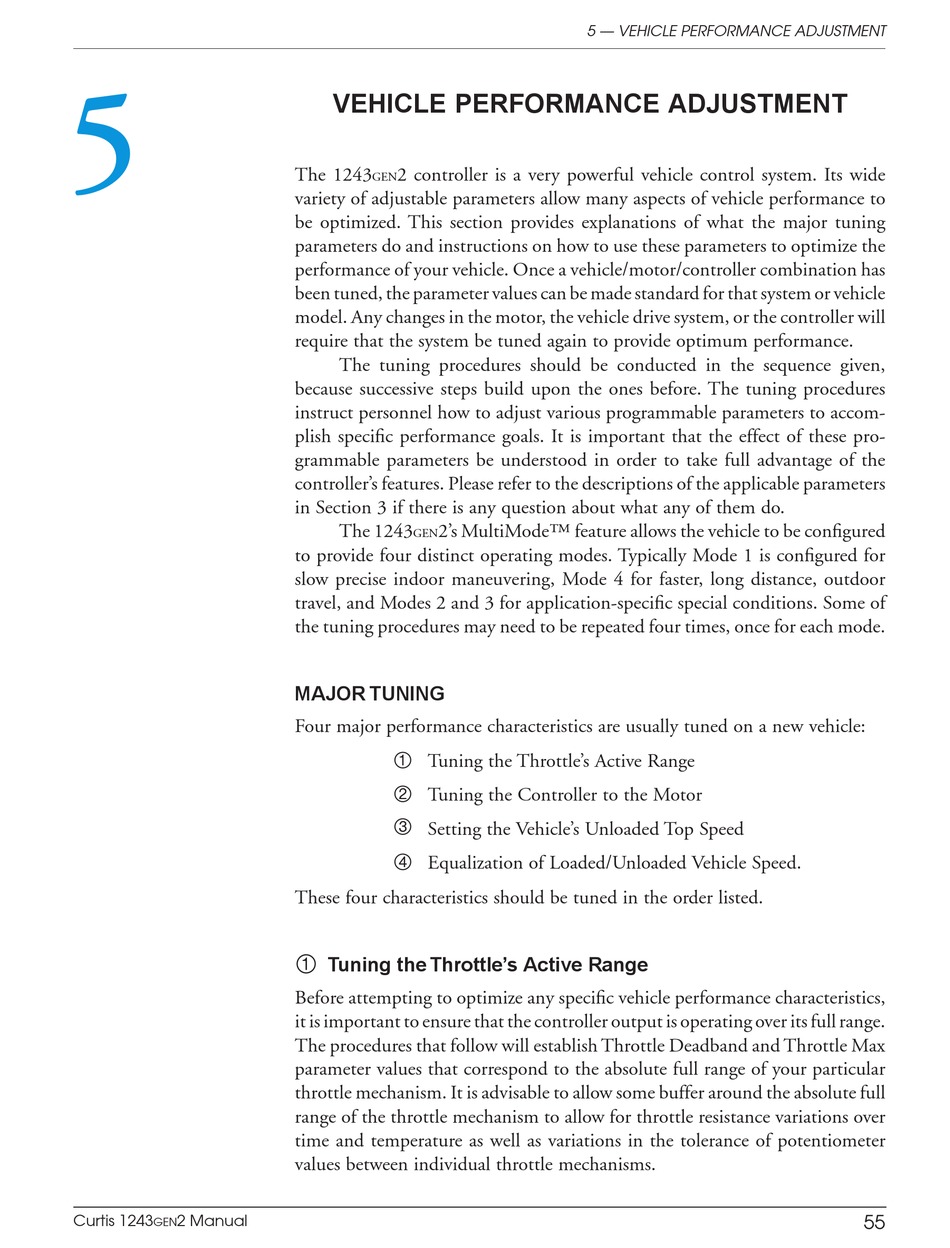

VEHICLE PERFORMANCE ADJUSTMENT

The 1243 2 controller is a very powerful vehicle control system. Its wide
GEN
variety of adjustable parameters allow many aspects of vehicle performance to
be optimized. This section provides explanations of what the major tuning
parameters do and instructions on how to use these parameters to optimize the
performance of your vehicle. Once a vehicle/motor/controller combination has
been tuned, the parameter values can be made standard for that system or vehicle
model. Any changes in the motor, the vehicle drive system, or the controller will
require that the system be tuned again to provide optimum performance.
The tuning procedures should be conducted in the sequence given,
because successive steps build upon the ones before. The tuning procedures
instruct personnel how to adjust various programmable parameters to accom-
plish specific performance goals. It is important that the effect of these pro-
grammable parameters be understood in order to take full advantage of the
controller's features. Please refer to the descriptions of the applicable parameters
in Section 3 if there is any question about what any of them do.
The 1243 2's MultiMode™ feature allows the vehicle to be configured
GEN
to provide four distinct operating modes. Typically Mode 1 is configured for
slow precise indoor maneuvering, Mode 4 for faster, long distance, outdoor
travel, and Modes 2 and 3 for application-specific special conditions. Some of
the tuning procedures may need to be repeated four times, once for each mode.

MAJOR TUNING

Four major performance characteristics are usually tuned on a new vehicle:
1
Tuning the Throttle's Active Range
2
Tuning the Controller to the Motor
3
Setting the Vehicle's Unloaded Top Speed
4
Equalization of Loaded/Unloaded Vehicle Speed.
These four characteristics should be tuned in the order listed.
1
Tuning the Throttle's Active Range
Before attempting to optimize any specific vehicle performance characteristics,
it is important to ensure that the controller output is operating over its full range.
The procedures that follow will establish Throttle Deadband and Throttle Max
parameter values that correspond to the absolute full range of your particular
throttle mechanism. It is advisable to allow some buffer around the absolute full
range of the throttle mechanism to allow for throttle resistance variations over
time and temperature as well as variations in the tolerance of potentiometer
values between individual throttle mechanisms.
