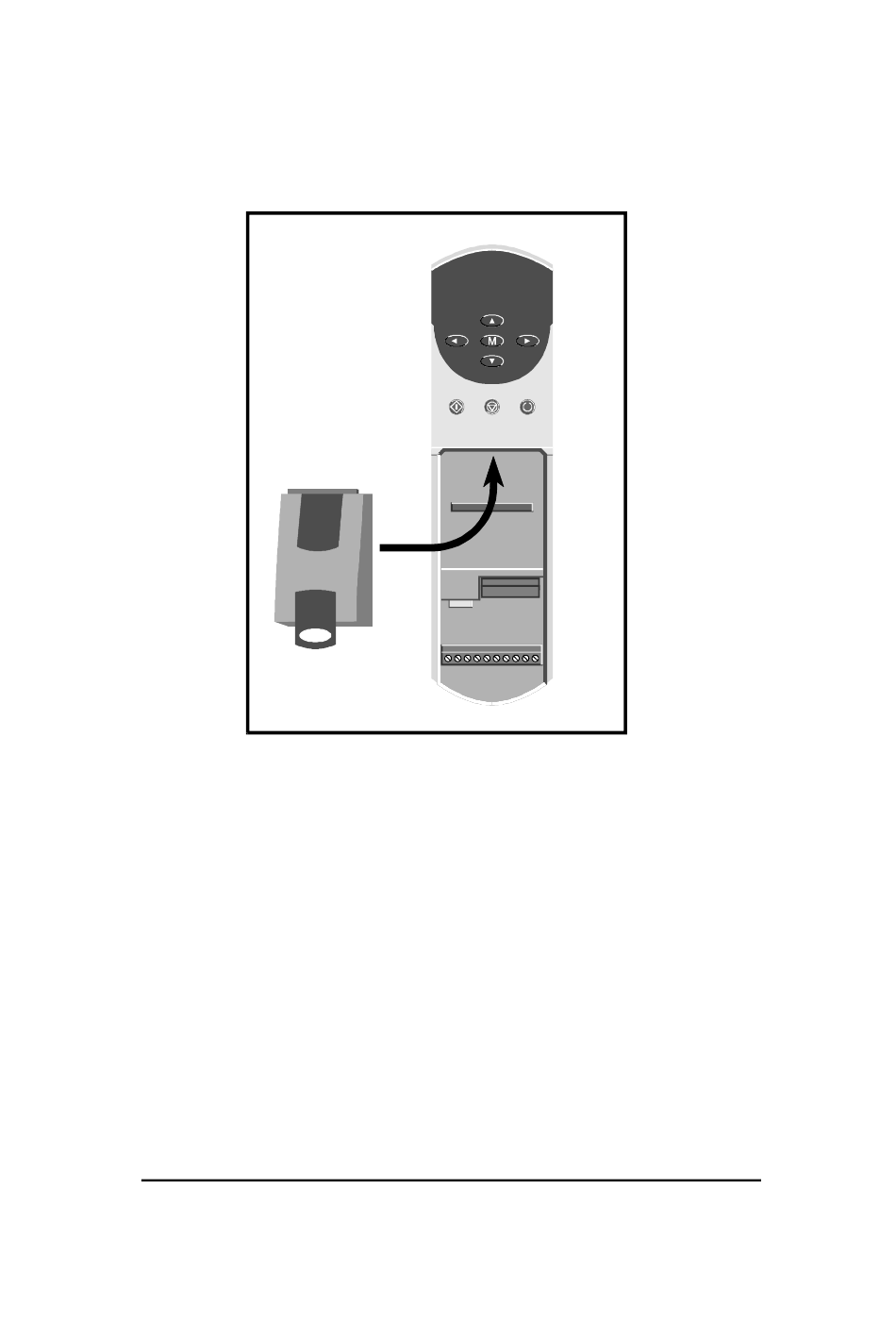

Figure 2
Installing the UD78 in the Unidrive
Do not remove the UD78 from the Drive when either the
back-up supply is applied to the Drive. If the UD78 is removed when the
DC
Drive is powered-up, the Drive will trip; the display will indicate
If the UD78 is deliberately removed, it may be necessary to re-adjust the
parameters related to analog input 1, since they will now relate to terminals
5 and 6.
UD78 User Guide
Issue code: 78nu2
supply or a
AC
.
ANI.diS
7
