Get to Know the Physical Features of the SCG

The following sections identify the physical features of the SCG that are relevant to
the installation and mounting instructions that this guide provides. Before you begin
the installation process, Ruckus Wireless strongly recommends that you become
familiar with these physical features.
Front Panel

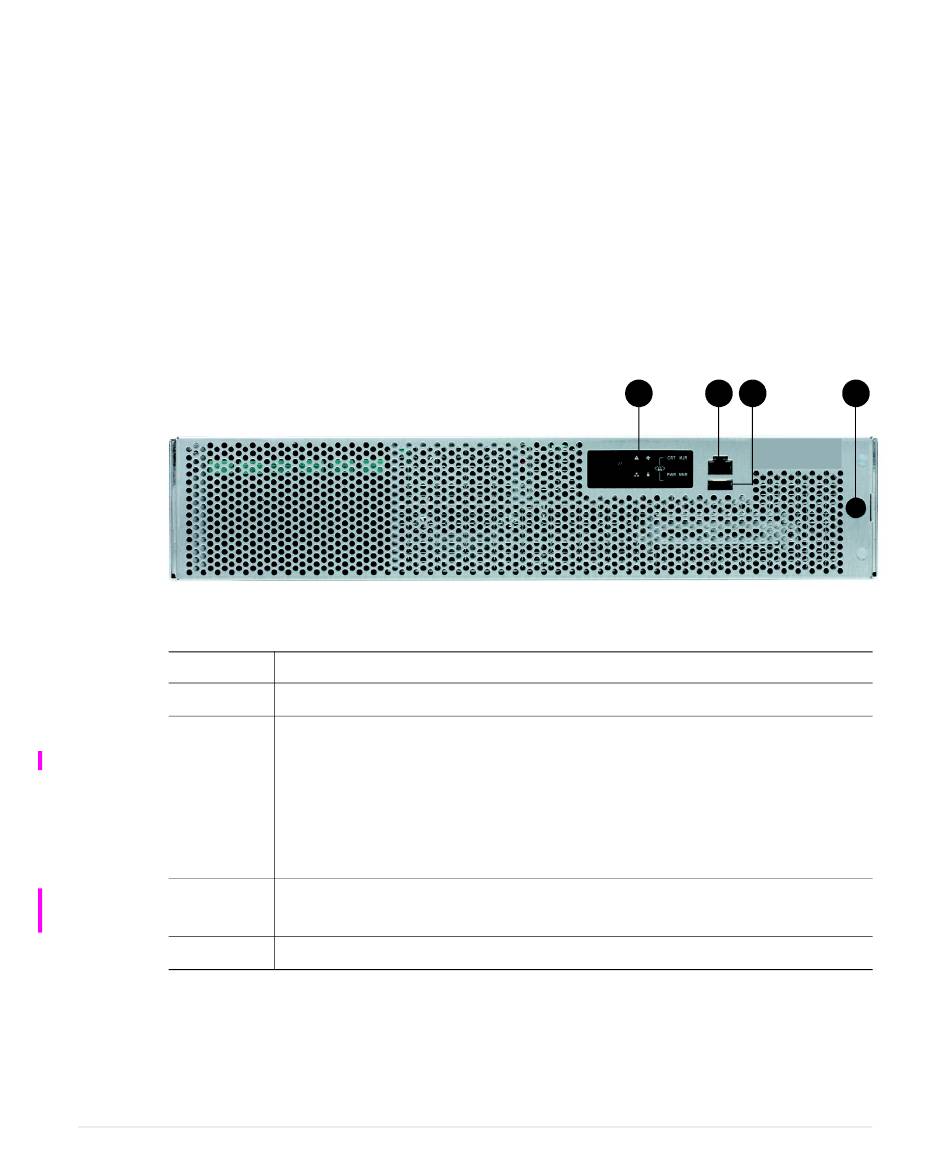

Figure 2 shows the SCG front panel with the bezel installed. For descriptions of the
numbered parts, refer to
Figure 2. SCG front panel with the bezel
Table 1. SCG front panel parts
Number
1
2
3
4
SmartCell Gateway 200 Getting Started Guide for SmartZone 3.4, 800-71126-001 Rev A
Table 1.
Description
Control panel (see Control Panel on the Front
RJ45 serial port (COM2/serial B). Use only the console cable provided to
connect this port via a laptop/notebook.
CAUTION!
The SCG has two RJ45 serial ports – one on the front panel
and one on the rear panel. You can only use one of these two ports at any
given time. Using them simultaneously may cause both serial ports to
become unresponsive.
Use the USB port to connect a keyboard and mouse. Use a USB stick
(for a fresh installation).
Front bezel lock
Preparing to Set Up the SmartCell Gateway 200
1 2 3
Panel)
Before You Begin
4
