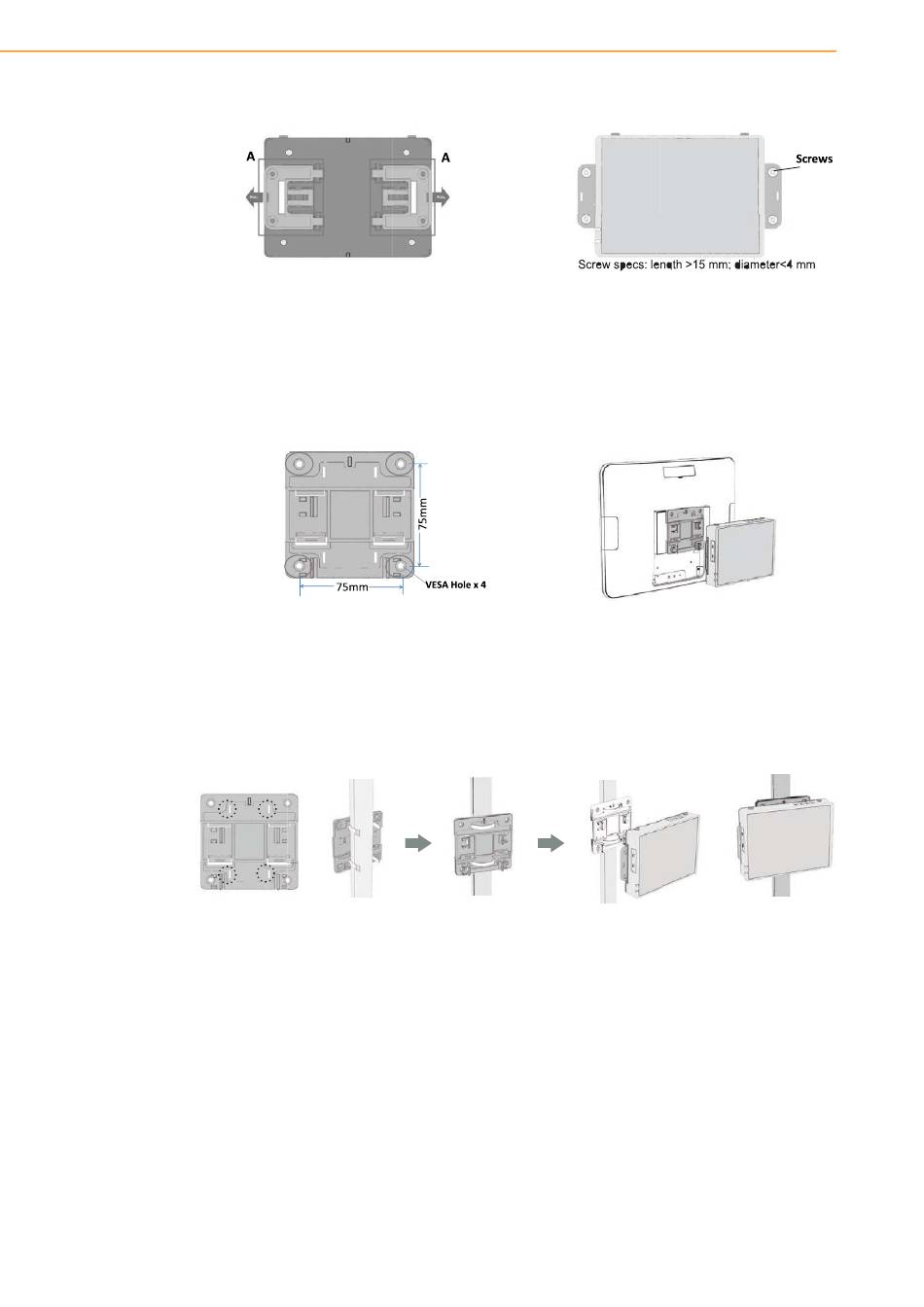

2. Wall Mount Installation
Step 1.Pull out the two side wings (A) at the back of the device.
Step 2.Affix the device to the wall using 4 screws in the screw holes of the two side
wings.
3. VESA Mount Installation
Step 1.Use 4 screws to affix a mount bracket (75x75) onto the device.
Step 2.Attach the device to the mount bracket following the "Module Assembly" steps
outlined above.
4. Pole Mount Installation
Step 1.Affix the mount bracket to the pole using cable ties (Figure 5).
Step 2.Attach the device to the mount bracket following the "Module Assembly" steps
outlined above.
