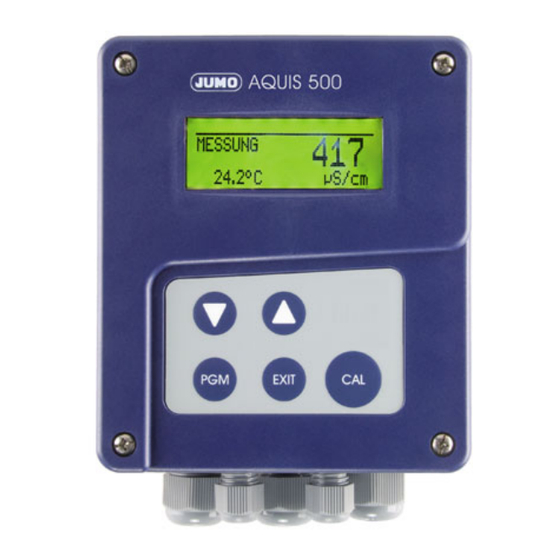

JUMO AQUIS 500 Ci
Transmitter/controller
for inductive conductivity, concentration
and temperature
Brief description
The instrument is used for the inductive measurement and control of electrolytic conductivity,
or concentration. The conductivity is converted into a specified unit by means of a customized
table. Inductive JUMO conductivity cells can be connected to the instrument.
The instrument is particularly recommended for use in media in which heavy deposits from
contaminants, oil and grease, or gypsum and lime precipitation are to be expected. Because
temperature measurement is integrated, temperature compensation takes place quickly and
precisely, which is particularly important when measuring conductivity.
Specific and automatic temperature compensation is possible, depending on the measurement
variable.
The instrument is operated by keys and a large LC graphic display. The measurement value is
easy to read on this display. The parameters are shown in plain text, making configuration easier
for the user, and helping with the proper programming of the instrument.
Its modular configuration allows the instrument to be adapted to the requirements of the
application. There are up to four outputs available (see block diagram for functions).
Typical areas of application:
Dairies, breweries, soft drinks manufacturing/bottling, mineral springs, drinking water, liquid
food production, CIP/SIP systems, other rinsing and cleaning processes, measuring the
concentration of acids, lyes and cleaning chemicals, etc.

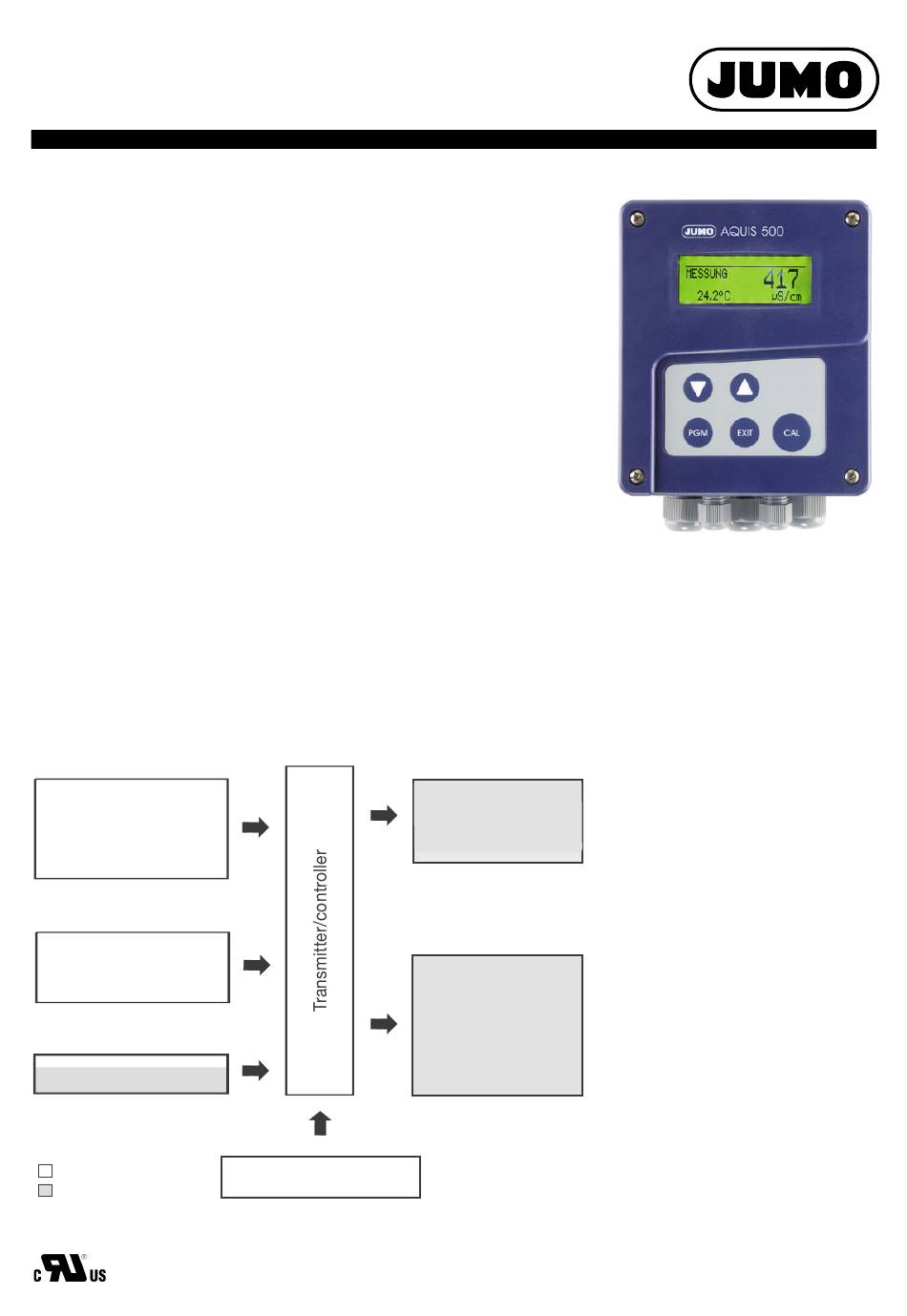

Block diagram
Analog inputs
Input 1:
Inductive conductivity cell
Input 2:
Temperature
manual input or automatic
Pt100 / Pt1000 / 4 kW
Binary input
For floating contact
Functions:
- keyboardinhibit
- alarm stop
- HOLD
Power supply
110 - 240 V AC
12 - 24 V DC
20 - 30 V AC/DC
Standard
Option
Approvals/Approval marks
V1.00/EN/00520247
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax: +44 1279 635262
Email: sales@jumo.co.uk
Internet: www.jumo.co.uk
Setup interface
User-friendly configuration
Subsequent language loading
System documentation
(see Technical data)
JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866
1-800-554-5866
Fax: 315-437-5860
Email: info.us@jumo.net
Internet: www.jumousa.com
Analog outputs (option)
Outputs 1 + 2:
0(4) - 20 mA or 0 - 10 V
Can be configured as analog
actual value output and/or
continuous
controller output (PID action)
Switching outputs (option)
Outputs 3 + 4:
- relay, changeover (SPDT)
Can be configured as
- limit controller
- pulse width output
(PID action)
- pulse frequency output
(PID action)
- modulating controller
(PID action)
- washing timer
- calibration timer run down
Data Sheet 202566
Type 202566
Key features
• Direct selection option for
- specific conductivity (µS/cm and
mS/cm)
- concentration, NaOH, HNO
HCl
- a customized table
• Automatic temperature compensation:
off, linear, natural water (EN 27888/ISO
7888), non-linear
• Large, backlit LC graphic display
• A choice of display visualizations: large
numbers, bar graph or trend display
• Calibration options relevant to the
measurement variable: cell constant and
temperature
coefficient
• Calibration logbook
• Option to connect inductive JUMO
measuring cells
• IP67 enclosure protection for surface
mounting
IP65 enclosure protection for control
cabinet mounting
• Selectable languages:
German, English, French;
additional languages can be loaded later
through the setup program
• The setup program provides: user-friendly
programming, system documentation,
subsequent loading of additional
languages
Page 1/12
, H SO ,
3 2 4
