JUMO CTI-500 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. JUMO Manuals
  4. Transmitter
  5. CTI-500
  6. Operating instructions manual

JUMO CTI-500 Operating Instructions Manual

Inductive conductivity/concentration and temperature transmitter with switch contacts
Hide thumbs Also See for CTI-500:
Table of Contents

Advertisement

Quick Links

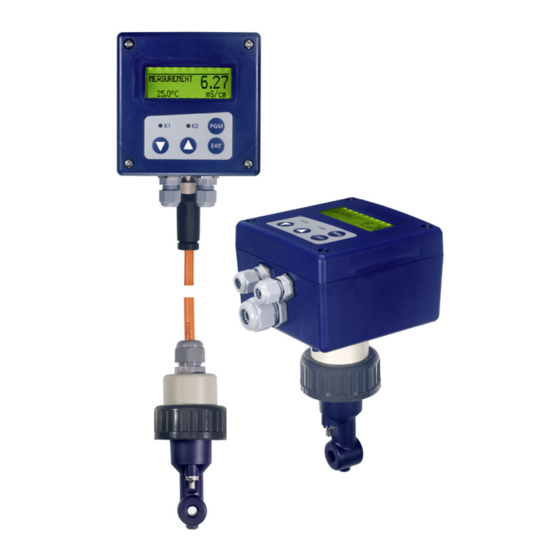

JUMO CTI-500
Inductive Conductivity/Concentration and
Temperature Transmitter with switch contacts
Type 202755
Operating Instructions
20275500T90Z001K000
V5.01/EN/00444870
