Owner's Guide and Instruction Manual
Thank you for your purchase!
Warming Trends V1.R2_5.3.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFB60 NG and is the answer not in the manual?

Questions and answers

Related Manuals for Warming Trends CFB60 NG

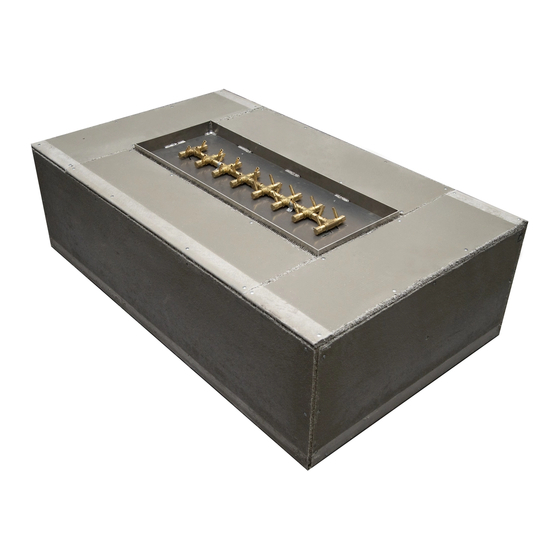

Summary of Contents for Warming Trends CFB60 NG

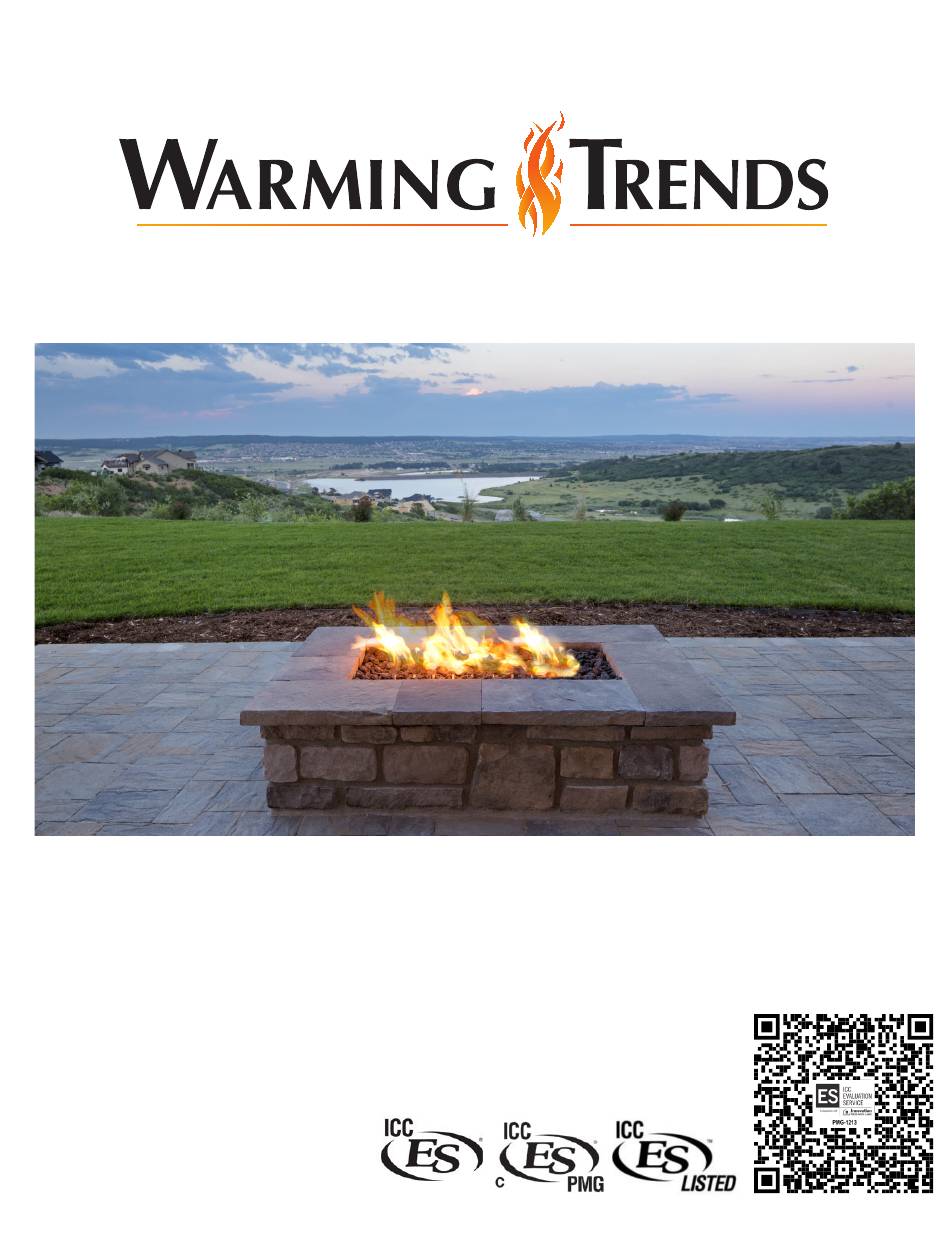

  • Page 1 ® Owner’s Guide and Instruction Manual Thank you for your purchase! Warming Trends V1.R2_5.3.2019...
  • Page 2 IMPORTANT PRODUCT WARNINGS DANGER FIRE OR EXPLOSION HAZARD If you smell gas: • Shut off gas to the appliance. • Extinguish any open flame. • If odor continues, leave the area immediately. • After leaving the area, call your gas supplier or fire department. •...
  • Page 3 AVERTISSEMENTS IMPORTANTS CONCERNANT LES PRODUITS DANGER RISQUE D’INCENDIE OU D’EXPLOSION S’il y a une odeur de gaz : • Coupez l’admission de gaz de l’arrareil. • Éteindre toute flamme nue. • Si l’odeur persiste, éloignez-vous de l’appareil et appelez immédiatement le fournisseur de gaz ou le service d’incendie.

  • Page 4: Table Of Contents

    MATCH LIT: Model # CFBH200 NG/LP with 24VIKSC Model # CFBT350 NG/LP as match lit Model # CFB60 NG/LP as match lit Model # CFBT410 NG/LP as match lit Model # CFBT110 NG/LP with 24VIKSC Model # CFB120 NG/LP as match lit...

  • Page 5: General Warnings And Information

    Installation Manual thoroughly before installing or servicing this equipment to ensure a safe installation and to educate the end user as to proper operation. Warming Trends™ is not responsible for damage due to improperly installed or operated units. Installers must leave this manual with the end user. Instructions are updated as needed, and it is the installer or owners’...

  • Page 6: Code Requirements

    CODE REQUIREMENTS LOCATION CONSIDERATIONS It is the responsibility of the installer to consult with the All appliances, match lit kits, spark ignition, and electronic local municipality and to FOLLOW ALL LOCAL CODES ignition systems are designed and intended for outdoor concerning the installation and operation of the fire feature.

  • Page 7: Construction Of Enclosure

    Warming Trends is not responsi- emergency shut off and maintenance. ble for damage to enclosure for any reason whatsoever.

  • Page 8: Clearances Diagram

    CLEARANCES DIAGRAM Vertical clearance of 120” from burner to combustible structure or materials is required. Horizontal or lateral clearance of 36” between edge of burner and combustible structure or materials is required. Fire Pit Cavity Components (A) GFCI Outlet (B) Location for remote receiver (optional) (C) Pigtail plug included for easy installation (D) Electronics Box (Houses 120V - 24V Transformer) (E) 24V Power from Transformer to Gas Valve...
  • Page 9 Do not store or use gasoline, or the fire pit. See Clearances Diagram on page 8 for other flammable vapors and liquids, in the vicinity placement. Warming Trends® is not responsible for of this or any other appliances. any damages to the capstone.

  • Page 10: Match Lit System Connection Diagrams

    Leave this Connection Diagram with end user. MATCH LIT SYSTEM CONNECTION DIAGRAMS 60K - 249K BTU Systems 60K - 120K with FLKV12 (Follow steps 1 - 6) 121K - 249K with FLKV34FIT180 (Follow steps 1 - 6, including 3A) 1. Locate FLKV12 (or FLKV34FIT180) Parts include Whistle-Free Flex Line, key valve, escutcheon plate, keys, and FIT180 (FLKV34FIT180 ONLY) STEP 1 - FIT180...
  • Page 11 MATCH LIT SYSTEM INSTALLTION 60K - 249K BTU Systems CONTINUED 4. Connect Whistle-Free Flex Line (FLKV12 and FLKV34FIT180) Connect Coupling the Whistle-Free Flex Line to the Flared Fitting previously attached to the coupling on the bottom of the Plate aluminum plate. Flared Fitting Whistle-Free Flex Line...

  • Page 12: Match Lit System Connection Diagrams

    MATCH LIT SYSTEM CONNECTION DIAGRAMS 250K - 299K BTU Systems 250K - 299K with DFLKV34FIT250 (Follow steps 1 - 6) 250K - 299K with DFLKV34FIT300 (Follow steps 1 - 6, including 3A) 1. Locate DFLKV34 and FIT250 OR DFLKV34 and FIT300 Parts include two Whistle-Free Flex Lines, key valve, escutcheon plate, keys, and FIT250 Kit (DFLKV34FIT250 ONLY) or FIT300 Kit (DFLKV34FIT300 ONLY)
  • Page 13 MATCH LIT SYSTEM INSTALLTION 250K - 299K BTU SYSTEMS CONTINUED 4. Connect Flared Fittings to 3/4” Tee (DFLKV34FIT250 and DFLKV34FIT300) Coupling Connect Flared Fittings to 3/4” Tee. Plate FIT250 (½” x 3/4” Reducing Fitting) or FIT300 (3/4” x 3” Nipple) Flared Fitting Flared Fitting FIT250 or FIT300...

  • Page 14: Volt Electronic Ignition System Connection Diagrams

    24 VOLT ELECTRONIC IGNITION SYSTEM CONNECTION DIAGRAMS 60K - 249K BTU Systems 60K - 120K with FLKV12 (Follow steps 1 - 6) 121K - 249K with FLKV34FIT180 (Follow steps 1 - 6, including 3A) 1. Locate FLKV12 Parts include Whistle-Free Flex Line, key valve, escutcheon plate, keys, and FIT180 (FLKV34FIT180 ONLY) STEP 1 - FIT180 3”...
  • Page 15 STEP 5 24 VOLT ELECTRONIC IGNITION SYSTEM INSTALLATION 60K - 249K BTU SYSTEMS CONTINUED 4. Locate 2nd Flared Fitting and Connect to Key Valve Flared Fitting Key Valve (FLKV12 and FLKV34FIT180) Locate the other Flared Fitting removed in Step 2 and connect into the Key Valve, placing the non-flared end into the key valve.

  • Page 16: Volt Electronic Ignition System Connection Diagrams

    24 VOLT ELECTRONIC IGNITION SYSTEM CONNECTION DIAGRAMS 250K - 290K BTU Systems 250K - 299K with DFLKVFIT250 (Follow steps 1 - 8) 300K+ with DFLKVFIT300 (Follow steps 1 - 8, including 3A) 1. Locate DFLKV34 and FIT250 OR DFLKV34 and FIT300 Parts include two Whistle-Free Flex Lines, key valve, escutcheon plate, keys, and FIT250 Kit (DFLKV34FIT250 ONLY) or FIT300 Kit (DFLKVFIT300 ONLY)
  • Page 17 24 VOLT ELECTRONIC IGNITION SYSTEM INSTALLATION 250K - 290K BTU SYSTEMS CONTINUED 4. Connect Flared Fittings to 3/4” Tee (DFLKV34FIT250 and Flared Fitting DFLKV34FIT300) Connect 3/4” Tee to ½” x 3/4” Reducing Fitting (FIT250) Apply thread or 3/4” x 3” Nipple (FIT300.) Coupling sealant here Then connect Flared Fittings to...
  • Page 18 24 VOLT ELECTRONIC IGNITION SYSTEM INSTALLATION 250K - 290K BTU SYSTEMS CONTINUED 6. Connect FIT Kit to Key Valve and Flared Fittings Flared Fitting (DFLKV34FIT250 and DFLKV34FIT300) Connect 3/4” x 3” Nipple (FIT250 and Apply thread sealant here FIT300) to Key Valve. FIT250 or FIT300 Key Valve Then connect the 3/4”...

  • Page 19: Push Button Ignition System Connection Diagrams

    PUSH BUTTON IGNITION SYSTEM CONNECTION DIAGRAMS Up to 300K BTU Systems 1. Install Push Button Module .125” into Mountin Bracket Unscrew Button Cover. Remove plastic Nut. CROSSFIRE Insert Washer #1. Brass Burner Insert Washer #1 onto the button stem. Insert Push Button Stem Drill Here Plate 2.

  • Page 20: Media Installation

    MEDIA INSTALLATION For Ceramic Log Sets: Place logs on top of lava rock base according to Only use approved decorative media (glass, lava rock, preference and desired ceramic log sets, etc.) that have been manufactured for flame pattern. For elec- specific use in fire features.

  • Page 21: Firestorm Steel Gas Log Owner Information And Installation

    Burner System Installation and Operating Instructions burner and must remain off during operation. Please read and follow the entire Warming Trends Own- Danger: Fire or Explosion Hazard. If you smell gas, er’s Guide and Instruction Manual to install and operate your outdoor gas burner system.

  • Page 22: General Maintenance

    sudden flare up. Failure to follow these instructions er is centered underneath it. Your steel log has a “lighting opening” at each end to aid in lighting the burner. (See could result in fire or explosion, which could cause Figure 1 below). Orient the steel log so that one end of property damage, personal injury or death.

  • Page 23: Troubleshooting

    JET ORIFICE CLEANING • No Pilot Flame - Pilot sparks or glow plug glows but Annual inspection and cleaning of the fire feature is rec- pilot won’t light. ommended. If at any time the flames exhibit any abnormal o Air in the gas line. If this is a new install it may take shapes or behavior, or if burner fails to ignite properly, several attempts to purge the air.

  • Page 24: Warranty

    Warming Trends™ will repair or replace the system at no specified purpose, with respect to its products and parts, cost. This warranty does not cover labor costs.

  • Page 25: Prop 65 Warning

    PROP 65 WARNING What is “Prop 65”? Proposition 65 (“Prop 65”) is a California law which requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. These chemicals can be in the products that Californians purchase, in their homes or workplaces, or that are released into the environment.

  • Page 26: Replacement Parts

    REPLACEMENT PARTS FLKV12 ½” Flex Line and Key Valve. For use with any burner up to 120K BTU’s. Kit Includes: (1) 36” L x ½” Diameter Flex Line + ½” Key Valve + 3” and 12” Key FLKV34 3/4” Flex Line and Key Valve. For use with any 121K - 249K BTU Burner. Kit Includes: (1) 36” L x 3/4” Diameter Flex Line + 3/4” Key Valve + 3” and 12” Key 3/4”...
