INSTALLATION MANUAL

For the CROSSFIRE

Brass Burners

and Ignition Systems

www.Warming-Trends.com | 303 346 2224 | info@warming-trends.com

Table of Contents

Need help?

Do you have a question about the CROSSFIRE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Warming Trends CROSSFIRE Series

Page 1 INSTALLATION MANUAL For the CROSSFIRE Brass Burners and Ignition Systems www.Warming-Trends.com | 303 346 2224 | info@warming-trends.com...
Page 2: Table Of Contents
General Warnings and Information ..................4 Selecting a location for your fi re feature .................4 Construction of enclosure ......................5 General Fire Pit Installation .......................5 Media Installation ........................6 Fire Feature Operation ......................6 Lighting Instructions ........................7 Maintenance ..........................7 Troubleshooting .........................7 Warranty ............................8 INSTALLATION FOR ALL MODELS 60K –...
Page 3 24 VOLT STANDARD ELECTRONIC Model # CFBL150 NG/LP with P24VIKSCCG IGNITION SYSTEMS - High Capacity Model # CFBL190 NG/LP with P24VIKSCCG Model # CFB290 NG/LP with 24VIKHC Model # CFBL210 NG/LP with P24VIKSCCG Model # CFB300 NG/LP with 24VIKHC Model # CFBL250 NG/LP with P24VIKSCCG Model # CFBL210 NG/LP with 24VIKHC Model # CFBL270 NG/LP with P24VIKSCCG Model # CFBL250 NG/LP with 24VIKHC...
Page 4: General Warnings And Information
Installer must follow all instructions carefully to ensure proper performance WARNING: Clothing or other fl ammable materials should not be placed and safety. Warming Trends is not responsible for your actions. on or near fi re pit.
Page 5: Construction Of Enclosure
Electronic Ignition models can either be hard wired into main and result in the need to crack capstones to gain access. Warming Trends power supply or plugged into NEMA Rated, above grade, out- is not responsible for damage to enclosure for any reason whatsoever.
Page 6: Media Installation
Use of any media outside of the ap- proved media sold by Warming Trends may void warranty and effect proper operations. WARNING: When fire pit is not in operation turn off gas valve.
Page 7: Lighting Instructions
LIGHTING INSTRUCTIONS FOR: and clear of any debris, dust, spider webs and loose particles from the media and logs. Once pilot assembly is clean, inspect to see flame that covers 3/8” to 1/2” of 3V Battery Operated System, 24V Premium Electronic Ignition System the thermocouple.
Page 8: Warranty
Return Merchandise Authori- Warming Trends™ is free of liability for any damages caused by the unit, zation number (RMA#). Please contact a Warming Trends™ representa- as well as inconvenience expenses, material or labor charges incurred by tive at the corporate offi ce to obtain an RMA#.
Page 9: 120K Btu System With Flkv12
Position your preferred support materials for the burner & plate inside of your fire pit (i.e., cinder blocks, elbow brackets, etc.) • Warming Trends recommends a 4” clearance from the finished top of your fire pit (capstones) to your plate. • For Match Lit burners, Warming Trends recommends a minimum 6”...
Page 10 STEP 2: Remove 1/2” flared fittings from each end of 1/2” flex line. Flex Line Flared Fitting STEP 3A: (FOR MATCH LIT SYSTEM) Connect one of your 1/2” flared fittings removed in Step 2 to the ½” coupling located on the bottom of the aluminum plate with flared end on bottom.
Page 11 STEP 4A: (MATCH LIT SYSTEM) Connect the 1/2” flex line to the fitting now located Coupling on the bottom of your aluminum plate. STEP 4B: (3 VOLT IGNITION) Coupling Plate Flared Fitting Plate 3 Volt Flared Flex Line Ignition Fitting Drip Leg Flex Line STEP 4C: (STANDARD 24 VOLT IGNITION)
Page 12 IGNITION SYSTEMS ONLY) Plug ignition into three prong, above grade, NEMA Rated, Flex Line outdoor specific GFCI electrical outlet or have electrician Key In hardwire ignition into transformer. Questions? Contact Warming Trends at 303.346.2224 60K – 120K BTU System with FLKV12...
Page 13: 121K - 249K Btu System With Flkv34 And Flkv34Fit180
WARNING: Minimum requirement: Incorporate 1 vent on at least two opposing sides (2 vents total) at a minimum size of 18 sq. inches each (Example: 3”x 6” or larger). Installation of the vents in the mid to lower area of the enclosure is recommended. Ventilation allows for heat and/or residual fuel to escape.
Page 14 STEP 4A: (MATCH LIT SYSTEM) Connect the new fitting created in Step 4 to the 1/2” coupling located on the bottom of the aluminum plate. Tighten. Coupling STEP 4B: (STANDARD 24 VOLT IGNITION) Coupling Standard 24 Volt Ignition Apply thread Apply thread sealant here 1/2"...
Page 15 (STANDARD 24 VOLT AND PREMIUM 24 VOLT IGNITION SYSTEMS ONLY) Plug ignition into three prong, above grade, NEMA Rated, outdoor specific GFCI electrical outlet or have electrician hardwire ignition into transformer. Questions? Contact Warming Trends at 303.346.2224 121K - 249K BTU Systems with FLKV34 and FLKV34FIT180...
Page 16: 250K - 299K Btu System With Dflkv34 And Dflkv34Fit250
WARNING: Minimum requirement: Incorporate 1 vent on at least two opposing sides (2 vents total) at a minimum size of 18 sq. inches each (Example: 3”x 6” or larger). Installation of the vents in the mid to lower area of the enclosure is recommended. Ventilation allows for heat and/or residual fuel to escape.
Page 17 STEP 2 STEP 2: Remove 3/4” flared fittings Flared Fitting from each end of 3/4” flex lines. Flared Fitting Flared Fitting Flared Fitting STEP 3A: Connect 1/2” x 3/4” reducing fitting to the ½” coupling located underneath the aluminum plate. Coupling STEP 3B: (STANDARD 24 VOLT HIGH CAPACITY IGNITION)
Page 18 STEP 4A: Connect one 3/4” tee fitting to the connection made in Step 3 (½” x 3/4” reducing fitting to the 1/2” coupling under aluminum pan.) Coupling STEP 4B: (STANDARD 24 VOLT HIGH CAPACITY IGNITION) 1/2" x 3/4" Reducing Fitting (FIT250) SEE PAGE 20 FOR Apply thread sealant here INSTALLATION...
Page 19 STEP 6A: Connect both 3/4” flex lines to the 3/4” flared fittings connected in Step 5. Tighten. STEP 6B: (STANDARD 24 VOLT HIGH CAPACITY IGNITION) Coupling 1/2" x 3/4" Reducing Fitting (FIT250) SEE PAGE 20 FOR INSTALLATION INSTRUCTION Flex Line Flex Line 3/4”...
Page 20 STEP 11: (STANDARD 24 VOLT AND PREMIUM 24 VOLT IGNITION SYSTEMS ONLY) Plug ignition into three prong, above grade, NEMA Rated, outdoor specific GFCI electrical outlet or have electrician hardwire ignition into transformer. Questions? Contact Warming Trends at 303.346.2224 250K - 299K BTU Systems with DFLKV34 and DFLKV34FIT250...
Page 21: (Match Lit, Standard Ignition, Premium Ignition) 300K + Higher Btu System With Dflkv34 And Dflkv34Fit300
WARNING: Minimum requirement: Incorporate 1 vent on at least two opposing sides (2 vents total) at a minimum size of 18 sq. inches each (Example: 3”x 6” or larger). Installation of the vents in the mid to lower area of the enclosure is recommended. Ventilation allows for heat and/or residual fuel to escape.
Page 22 STEP 2 STEP 2: Remove 3/4” flared fittings Flared Fitting from each end of 3/4” flex lines. Flared Fitting Flared Fitting Flared Fitting STEP 3A: Connect 3/4” x 3” pipe nipple fitting to the coupling located underneath Coupling the aluminum plate. Apply thread sealant here 3/4"...
Page 23 STEP 4A: Connect one 3/4” tee fittings to the connection made in Step 3 (3/4” x 3” pipe nipple Coupling under aluminum pan.) 3/4" x 3" Nipple (FIT300) Apply thread Plate sealant here 3/4" Tee (FIT300) STEP 4B: (STANDARD 24 VOLT IGNITION) STEP 4C: (PREMIUM 24 VOLT IGNITION) 3/4"...
Page 24 Coupling STEP 6A: Connect both 3/4” flex lines to the 3/4” flared 3/4" x 3" fittings connected in Step 5. Tighten. Nipple (FIT300) Plate Flared Fitting Flared Fitting Flex Line Flex Line 3/4" Tee (FIT300) STEP 6B: (STANDARD 24 VOLT IGNITION) STEP 6C: (PREMIUM 24 VOLT IGNITION) Flex Flex...
Page 25 (STANDARD 24 VOLT AND PREMIUM 24 VOLT IGNITION SYSTEMS ONLY) Plug ignition into three prong, above grade, NEMA Rated, outdoor specific GFCI electrical outlet or have electrician hardwire ignition into transformer. Questions? Contact Warming Trends at 303.346.2224 300K+ BTU Systems with DFLKV34 and DFLKV34FIT300...
Page 26: Push Button Ignition Installation
Push Button Ignition Installation NOTE : If the burner being installed uses a titled jet, use the 3.0" Spark Igniter. If the burner uses a straight jet, use the 3.25" Spark Igniter. Use the 3.0" Spark Igniter Use the 3.25" Spark Igniter STEP 1: .125"...
Page 27 STEP 4: Install push button module into Key Valve mounting bracket. 1) Unscrew button cover. Push Button 2) Remove plastic nut. Module 3) Insert washer #1onto the button stem. 4) Insert push button stem through mounting Mounting bracket hole. Button Stem Bracket 5) Insert washer #2.
Page 28: Parts Glossary
Parts Glossary 12” Key (KEY12) 12” Key (KEY12) 4” Key (KV12 or KV34) 4” Key (KV12 or KV34) Pressure Face Plate Key Valve (KV12 or KV34) (KV12 or KV34) Flex Line (FL3612 or FL3634) Flared Fitting Flared Fitting Push Button Module (PB-CM) Spark Igniter (PB-SI) Spark Igniter (PB-SI) Mounting Bracket (PBMBR)
Page 29: Replacement Parts

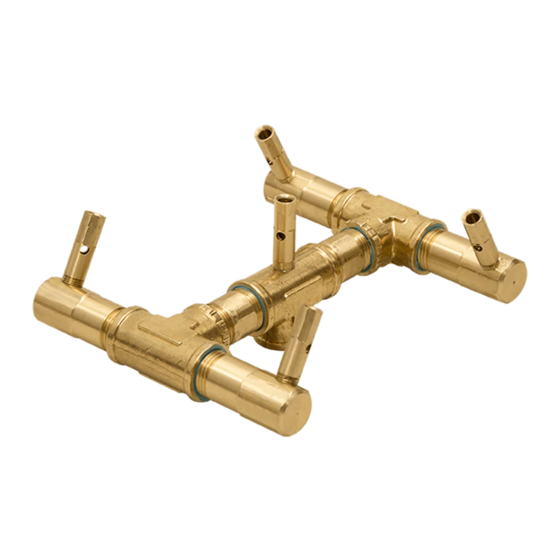

Replacement Parts FLKV12 For use with any burner up to 120K BTU’s. Kit Includes: (1) 36” L x ½” Diameter Flex Line + ½” Key Valve + 4” and 12” Key FLKV34 For use with any 121K - 249K BTU Burner. Kit Includes: (1) 36” L x 3/4” Diameter Flex Line + 3/4” Key Valve + 4” and 12” Key For use with any 121K - 249K BTU Burner.
