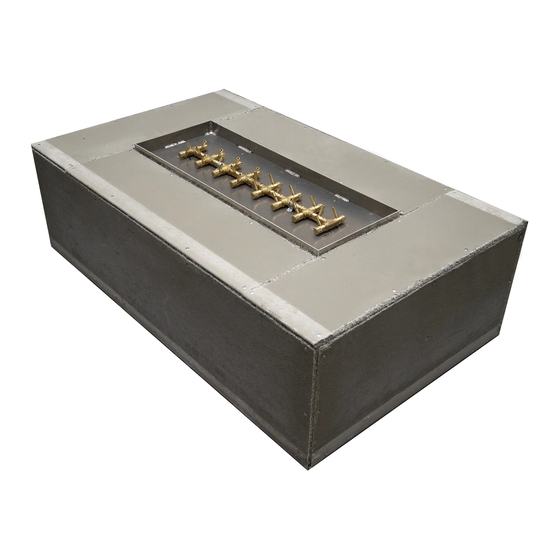

Owner's Guide and Instruction Manual
Thank you for your purchase!
Warming Trends V1.R5_03.20.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFB60 NG and is the answer not in the manual?

Questions and answers

Related Manuals for Warming Trends CFB60 NG

Summary of Contents for Warming Trends CFB60 NG

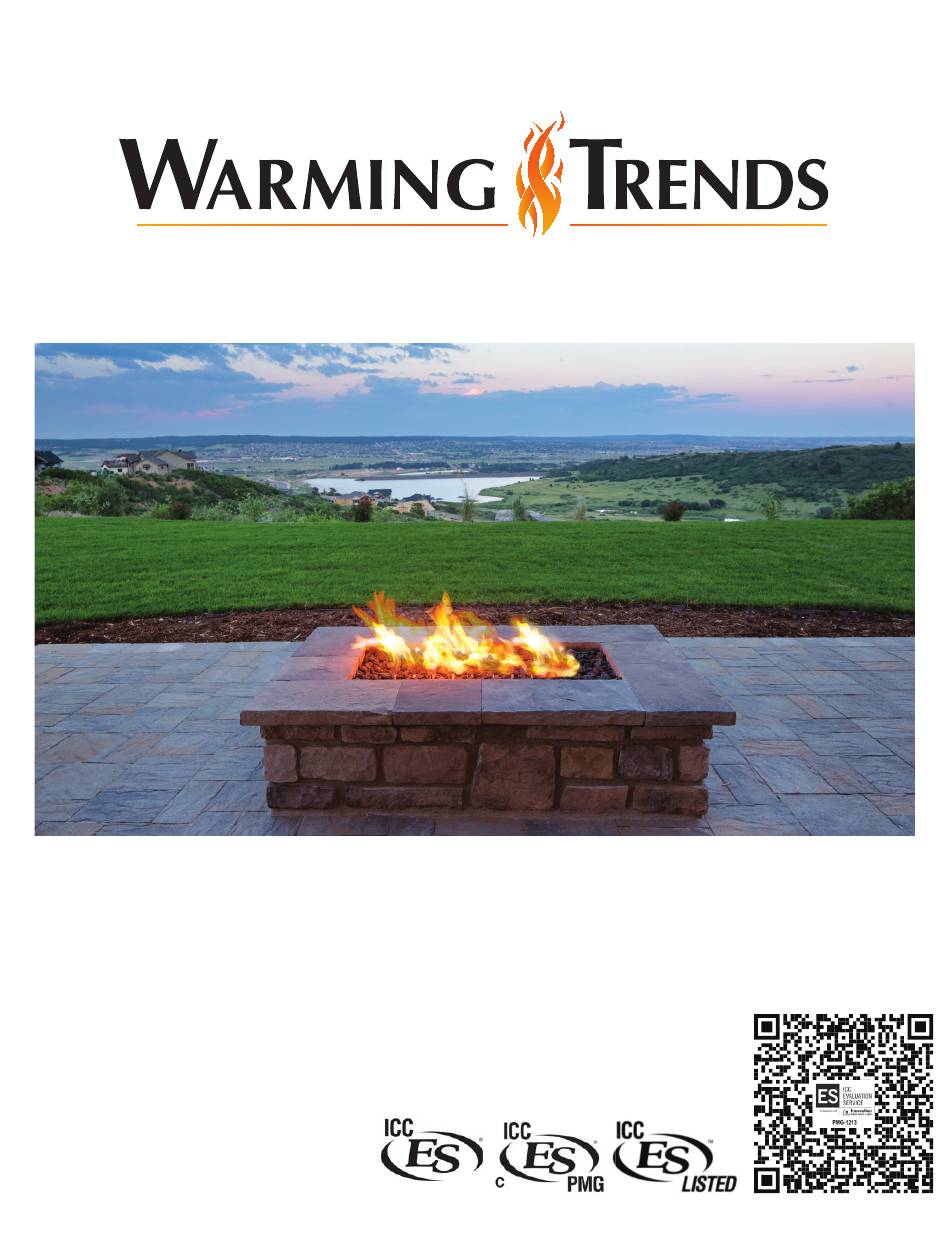

  • Page 1 ® Owner’s Guide and Instruction Manual Thank you for your purchase! Warming Trends V1.R5_03.20.2020...
  • Page 2 IMPORTANT PRODUCT WARNINGS DANGER FIRE OR EXPLOSION HAZARD If you smell gas: • Shut off gas to the appliance. • • If odor continues, leave the area immediately. • • cause property damage, personal injury, or death. WARNING vicinity of this or any other appliances. An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
  • Page 3 AVERTISSEMENTS IMPORTANTS CONCERNANT LES PRODUITS DANGER RISQUE D’INCENDIE OU D’EXPLOSION S’il y a une odeur de gaz : • Coupez l’admission de gaz de l’arrareil. • • Si l’odeur persiste, éloignez-vous de l’appareil et appelez immédiatement le fournisseur de gaz ou le service d’incendie. •...

  • Page 4: Table Of Contents

    24 VOLT STANDARD ELECTRONIC Model # CFBT350 NG/LP with 24VIKHC Model # WTVES180 NG/LP as matchlit Model # CFB60 NG/LP as match lit IGNITION SYSTEMS - Standard Capacity Model # CFBT410 NG/LP with 24VIKHC Model # CFB120 NG/LP as match lit...

  • Page 5: General Warnings And Information

    Installation Manual thoroughly before installing or servicing this equipment to ensure a safe installation and to educate the end user as to proper operation. Warming Trends™ is not responsible for damage due to improperly installed or operated units. Installers must leave this manual with the end user. Instructions are updated as needed, and it is the installer or owners’...

  • Page 6: Code Requirements

    11.0” W.C. 13.0” W.C. pans over 40”. (2.7399 Kpa) (3.2381 Kpa) Warming Trends Burners, Ignitions, Media and other Acces- PREMIUM - P24VIKSC, Minimum sories may be installed in Outdoor Fireplaces. The clearances, P24VIKHC materials, venting and construction standards for Outdoor Natural Gas 3.5”...

  • Page 7: Construction Of Enclosure

    Warming Trends is not responsi- ble for damage to enclosure for any reason whatsoever. WARNING:...

  • Page 8: Clearances Diagram

    FIRE PIT CLEARANCES DIAGRAM Vertical clearance of 120” from burner to combustible structure or materials is required. Horizontal or lateral clearance of 36” between edge of burner and combustible structure or materials is required. Fire Pit Cavity Components (A) GFCI Outlet (B) Location for remote receiver (optional) (C) Pigtail plug included for easy installation (D) Electronics Box (Houses 120V - 24V Transformer)
  • Page 9 Clearances Diagram on page 8 for placement. Warming Trends® is not responsible for An LP-cylinder not connected for use shall not be stored any damages to the capstone.

  • Page 10: Match Lit System Connection Diagrams

    Leave this Connection Diagram with end user. MATCH LIT SYSTEM CONNECTION DIAGRAMS 60K - 249K BTU Systems 60K - 120K FLKV12 (Follow steps 1 - 6) 121K - 249K FLKV34FIT180 (Follow steps 1 - 6, including 3A) 1. Locate FLKV12 (or FLKV34FIT180) Parts include Whistle-Free Flex Line, key valve, escutcheon plate, keys, and FIT180 (FLKV34FIT180 ONLY) STEP 1 - FIT180...
  • Page 11 MATCH LIT SYSTEM INSTALLTION 60K - 249K BTU Systems CONTINUED (FLKV12 and FLKV34FIT180) Connect Coupling the Whistle-Free Flex Line to the Flared Fitting previously attached to the coupling on the bottom of the Plate aluminum plate. Flared Fitting Whistle-Free Flex Line STEP 5 5.

  • Page 12: Match Lit System Connection Diagrams

    MATCH LIT SYSTEM CONNECTION DIAGRAMS 250K - 299K BTU Systems 250K - 299K FLKV34FIT250 (Follow steps 1 - 6) 250K - 299K FLKV34FIT300 (Follow steps 1 - 6, including 3A) 1. Locate DFLKV34 and FIT250 OR DFLKV34 and FIT300 Parts include two Whistle-Free Flex Lines, key valve, escutcheon plate, keys, and FIT250 Kit (DFLKV34FIT250 ONLY) or FIT300 Kit (DFLKV34FIT300 ONLY) STEP 1- FIT250 STEP 1- FIT250...
  • Page 13 MATCH LIT SYSTEM INSTALLTION 250K - 299K BTU SYSTEMS CONTINUED 4. Connect Flared Fittings to ¾” Tee (DFLKV34FIT250 and DFLKV34FIT300) Coupling Connect Flared Fittings to ¾” Tee. Plate FIT250 (½” x ¾” Reducing Fitting) or FIT300 (¾” x 3” Nipple) Flared Fitting Flared Fitting FIT250 or FIT300...

  • Page 14: Volt Electronic Ignition System Connection Diagrams

    24 VOLT ELECTRONIC IGNITION SYSTEM CONNECTION DIAGRAMS 60K - 249K BTU Systems 60K - 120K 12 (Follow steps 1 - 6) 121K - 249K FLKV34FIT180 (Follow steps 1 - 6, including 3A) 1. Locate FLKV12 Parts include Whistle-Free Flex Line, key valve, escutcheon plate, keys, and FIT180 (FLKV34FIT180 ONLY) STEP 1 - FIT180 3”...
  • Page 15 STEP 5 24 VOLT ELECTRONIC IGNITION SYSTEM INSTALLATION 60K - 249K BTU SYSTEMS CONTINUED 4. Locate 2nd Flared Fitting and Connect to Key Valve Flared Fitting Key Valve (FLKV12 and FLKV34FIT180) Locate the other Flared Fitting removed in Step 2 and connect into the Key Tighten.

  • Page 16: Volt Electronic Ignition System Connection Diagrams

    24 VOLT ELECTRONIC IGNITION SYSTEM CONNECTION DIAGRAMS 250K - 300K+ BTU Systems 250K - 299K 250 (Follow steps 1 - 8) 300K+ 300 (Follow steps 1 - 8, including 3A) 1. Locate DFLKV34 and FIT250 OR DFLKV34 and FIT300 Parts include two Whistle-Free Flex Lines, key valve, escutcheon plate, keys, and FIT250 Kit (DFLKV34FIT250 ONLY) or FIT300 Kit (DFLKVFIT300 ONLY) STEP 1- FIT250 STEP 1- FIT250...
  • Page 17 24 VOLT ELECTRONIC IGNITION SYSTEM INSTALLATION 250K - 290K BTU SYSTEMS CONTINUED 4. Connect Flared Fittings to ¾” Tee (DFLKV34FIT250 and Flared Fitting DFLKV34FIT300) Connect ¾” Tee to ½” x ¾” Reducing Fitting (FIT250) Apply thread or ¾” x 3” Nipple (FIT300). Coupling sealant here Then connect Flared Fittings to...
  • Page 18 24 VOLT ELECTRONIC IGNITION SYSTEM INSTALLATION 250K - 290K BTU SYSTEMS CONTINUED 6. Connect FIT Kit to Key Valve and Flared Fittings Flared Fitting (DFLKV34FIT250 and DFLKV34FIT300) Connect ¾ ” x 3” Nipple (FIT250 and Apply thread sealant here FIT300) to Key Valve. FIT250 or FIT300 Key Valve Then connect the ¾...

  • Page 19: Push Button Ignition System Connection Diagrams

    PUSH BUTTON IGNITION SYSTEM CONNECTION DIAGRAMS Up to 300K BTU Systems 1. To place the Spark Igniter in the .125” proper position, installer will need to drill a hole in the plate. Measure where to drill hole by Spark CROSSFIRE Igniter holding tip of Spark Igniter no further Brass Burner...

  • Page 20: Media Installation

    MEDIA INSTALLATION For Ceramic Log Sets: Place logs on top of lava rock or media base ac- Only use approved decorative media (glass, lava rock, cording to preference and ceramic log sets, etc.) that have been manufactured for electronic ignition systems Media must be ½”...

  • Page 21: Firestorm Steel Gas Log Owner Information And Installation

    2. Any cover must be removed prior to operation of Burner System Installation and Operating Instructions burner and must remain off during operation. Please read and follow the entire Warming Trends Own- er’s Guide and Instruction Manual to install and operate your outdoor gas burner system. During the installation...

  • Page 22: General Maintenance

    ever handling gas log. selected jet. While attempting to light jet, do not sub- Once your approved media has been installed, place your FireStorm Steel Gas Log over the burner so that before jet is lit can cause pooling of gas and result in the burner is centered underneath it.

  • Page 23: Troubleshooting

    JET ORIFICE CLEANING • No Pilot Flame - Pilot sparks or glow plug glows but pilot won’t light. o Air in the gas line. If this is a new install it may take shapes or behavior, or if burner fails to ignite properly, several attempts to purge the air.

  • Page 24: Warranty

    This warranty covers manufacturing defects tion of the system, Warming Trends® will repair or replace only and does not cover defects due to normal wear and tear; it does not warrant any product or part that has been does not cover labor costs.

  • Page 25: Prop 65 Warning

    PROP 65 WARNING What is “Prop 65”? Proposition 65 (“Prop 65”) is a California law which requires businesses to provide warnings to Californians about defects or other reproductive harm. These chemicals can be in the products that Californians purchase, in their homes or workplaces, or that are released into the environment.

  • Page 26: Replacement Parts

    REPLACEMENT PARTS FLKV12 ½” Flex Line and Key Valve. For use with any burner up to 120K BTU’s. Kit Includes: (1) 36” L x ½” Diameter Flex Line + ½” Key Valve + 3” and 12” Key FLKV34 ¾” Flex Line and Key Valve. For use with any 121K - 249K BTU Burner. Kit Includes: (1) 36” L x ¾” Diameter Flex Line + ¾” Key Valve + 3” and 12” Key ¾”...
