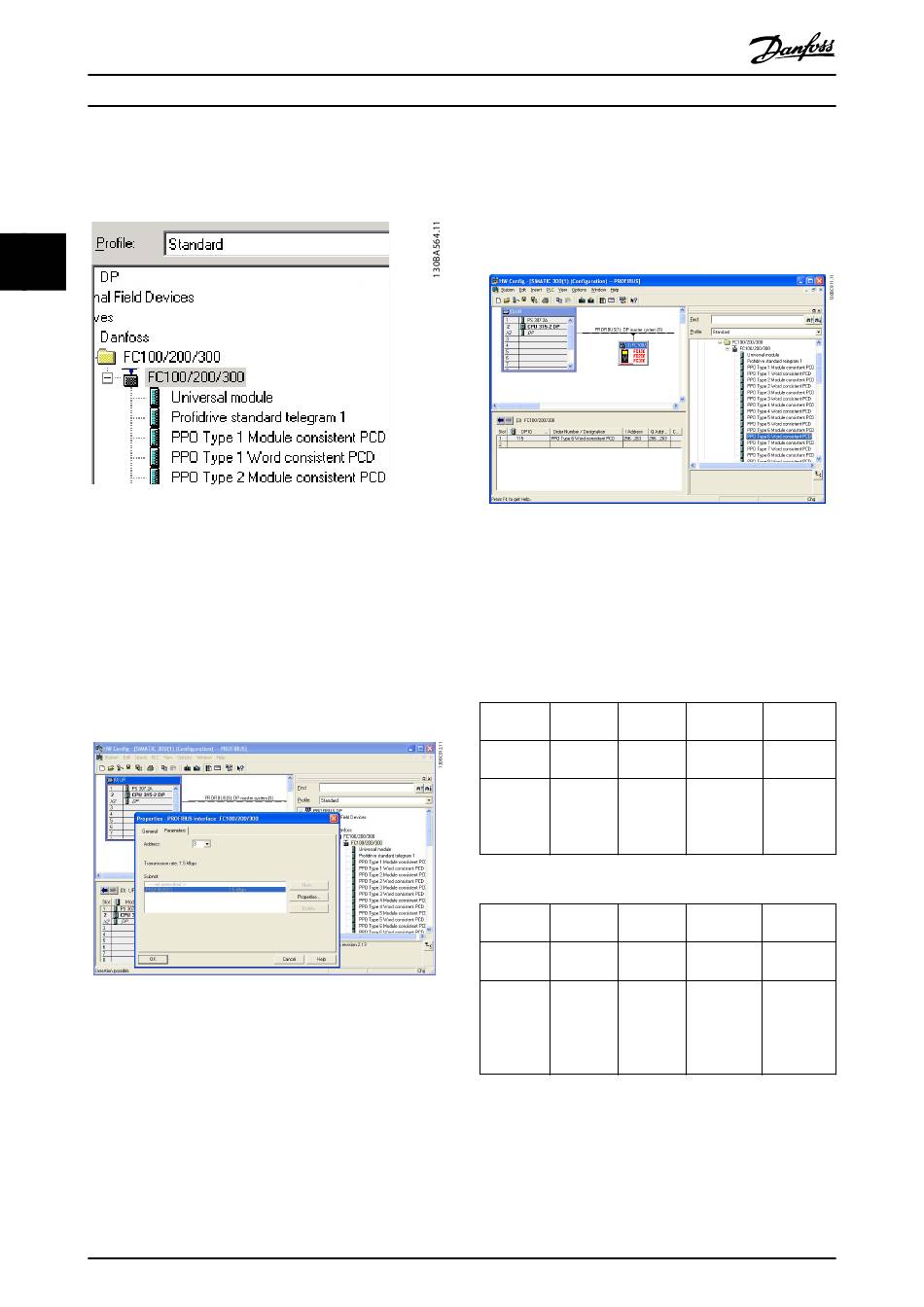

Danfoss VLT PROFIBUS DP MCA 101 Programming Manual page 12

Configuration
4. Import and access the FC 301/FC 302 GSD file via
the path in the hardware catalog, see
Illustration 3.6.
3 3
Illustration 3.6 Import and Access the GSD File
5. Open a project, set up the hardware, and add a
PROFIBUS master system.
6. Select FC 300, then drag and drop it onto the
PROFIBUS in the hardware diagram.
7. A window for the address of the FC 300 appears.
Select the address from the scroll-down list.
Ensure that the address setting matches the
previous address setting in parameter 9-18 Node
Address. See Illustration 3.7.
Illustration 3.7 Select the Address
10
®
VLT PROFIBUS DP MCA 101
8.
Illustration 3.8 Drag and Drop PPO Type 6 Word Consistent to
the First Slot
The configuration tool automatically assigns addresses in
the peripheral address area. In this example, the input and
output areas have the following configurations:
PPO type 6
PCD word
number
Input
address
Set-up
Table 3.3 PCD Read (Frequency Converter to PLC)
PCD word
number
Output
address
Set-up
Table 3.4 PCD Write (PLC to Frequency Converter)
Danfoss A/S © 01/2016 All rights reserved.
Set up the peripheral input and output data. Data
set up in the peripheral area is transmitted
cyclically via PPO types. Drag and drop a PPO
type 6 word consistent to the first slot, see
Illustration 3.8. See the PPO types in
chapter 4 Control for more information.
1 2
256–257 258–259 260–261
STW MAV Parameter 9-
16 PCD Read
Configu-
ration.2
1 2
256–257 258–259 260–261
CTW MRV Parameter 9-
15 PCD Write
Configu-
ration.2
3 4
262–263
Parameter 9-
16 PCD
Read Config-
uration.3
3 4
262–263
Parameter 9-
15 PCD
Write
Configu-
ration.3
