Technical Information

WS 403 Remote Solution

Device elements

Type label

6 |

Danfoss | March 2016

This chapter gives an overview of the device elements and functions and also describes the intended use.

It further lists the available device variants and the product certifications.

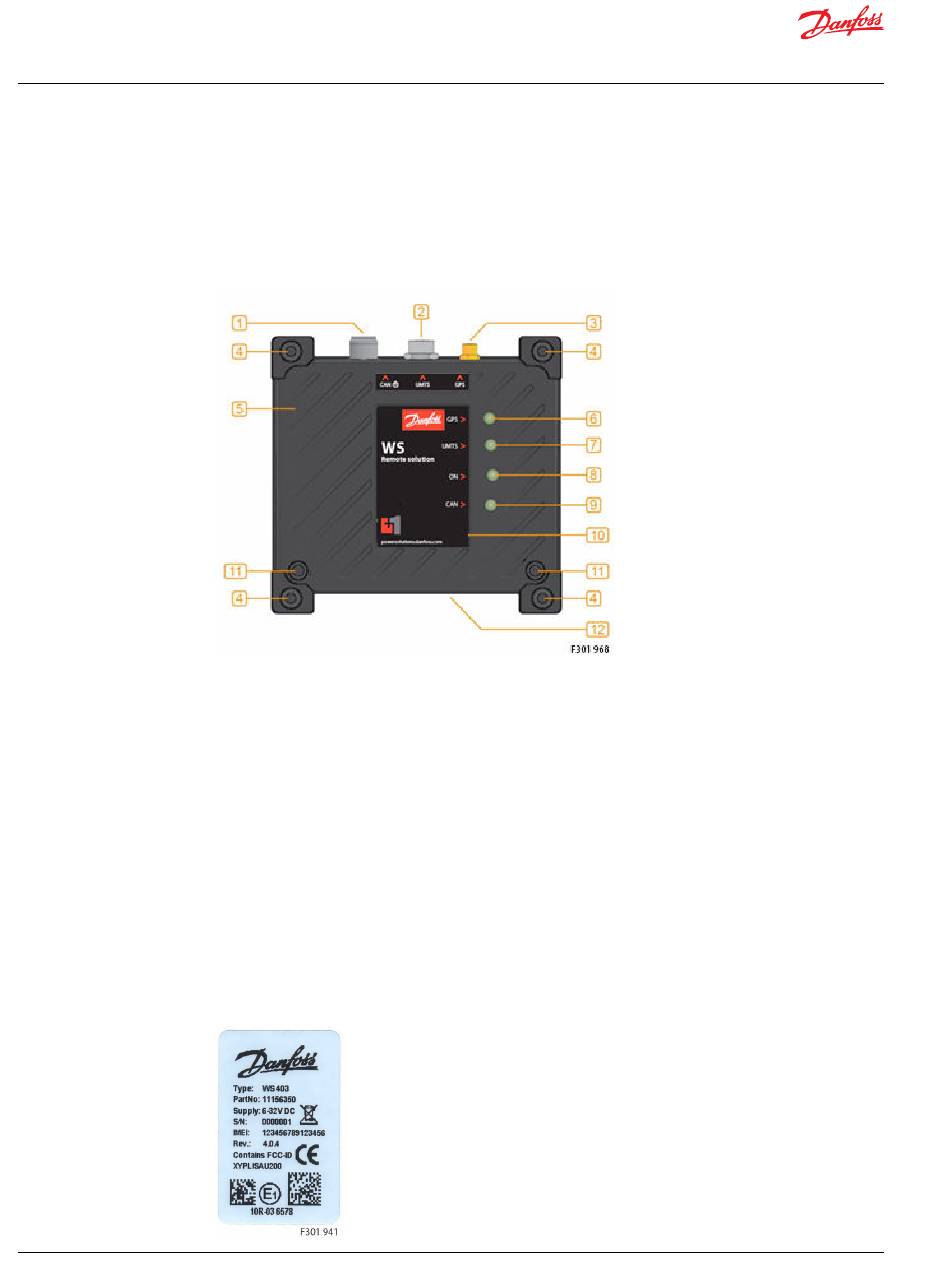

The device elements WS 403 is showed in the figure below:

1. 'Power/CAN connector'

2. GSM/3G connector

3. GPS connector

4. Mounting holes

5. Aluminum enclosure

6. GPS LED

7. GSM/3G LED

8. ON LED

9. CAN LED

10. Front label

11. Enclosure screws

The WS403 type label is located at the bottom of the enclosure and provides the following information:

L1426375 | BC00000241en-US0203
