3.2 Metal connector

ACC/DSUBM-xxx
Open the Metal connector:
1. Unscrew the cable fitting (cable gland)
2. Remove the bend protection
3. Unscrew the lid screws
4. Lift the lid in the DSUB connection area and
unfasten the nose of the slot
Close the Metal connector:
1. Assemble the lid by snapping the nose into the slot (see the following picture)
2. Audible click when the lid snaps in the front of the DSUB pod
3. Insert the bend protection
4. The pressure nut must be screwed back on
5. The lid screws can be tightened
imc CRONOSflex Getting Started Version 1.8 - 08.01.2014

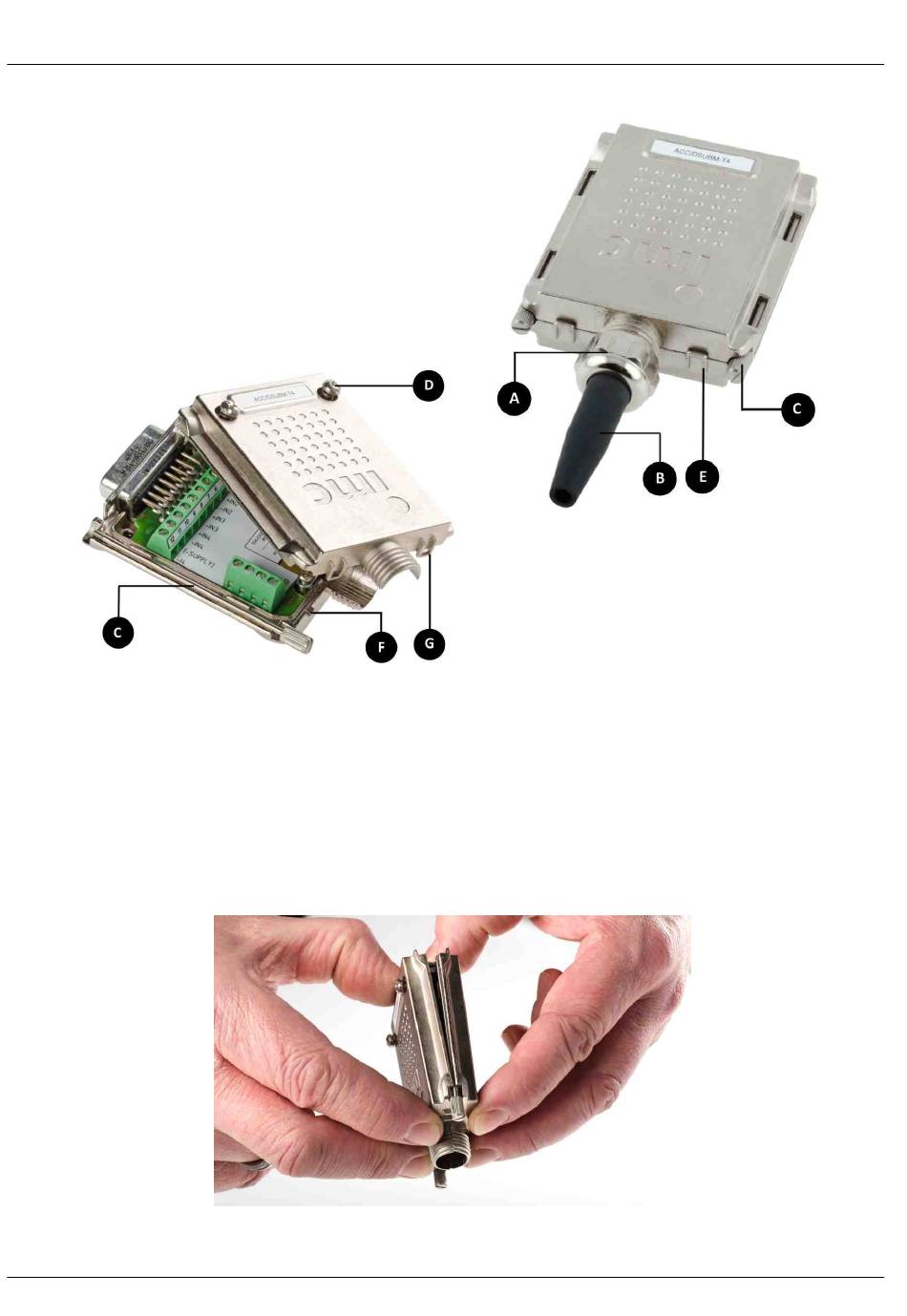

A: Pressure nut
B: Bend protection
C: Fastening screw for the devices' front panel
D: Lid screws
E: Locking key (Nose / Slot)
G: Slot
F: Nose
Metal connector 43
