Colortrac UC56T User Manual

Large format scanner
Hide thumbs Also See for UC56T:
Table of Contents

Advertisement

Quick Links

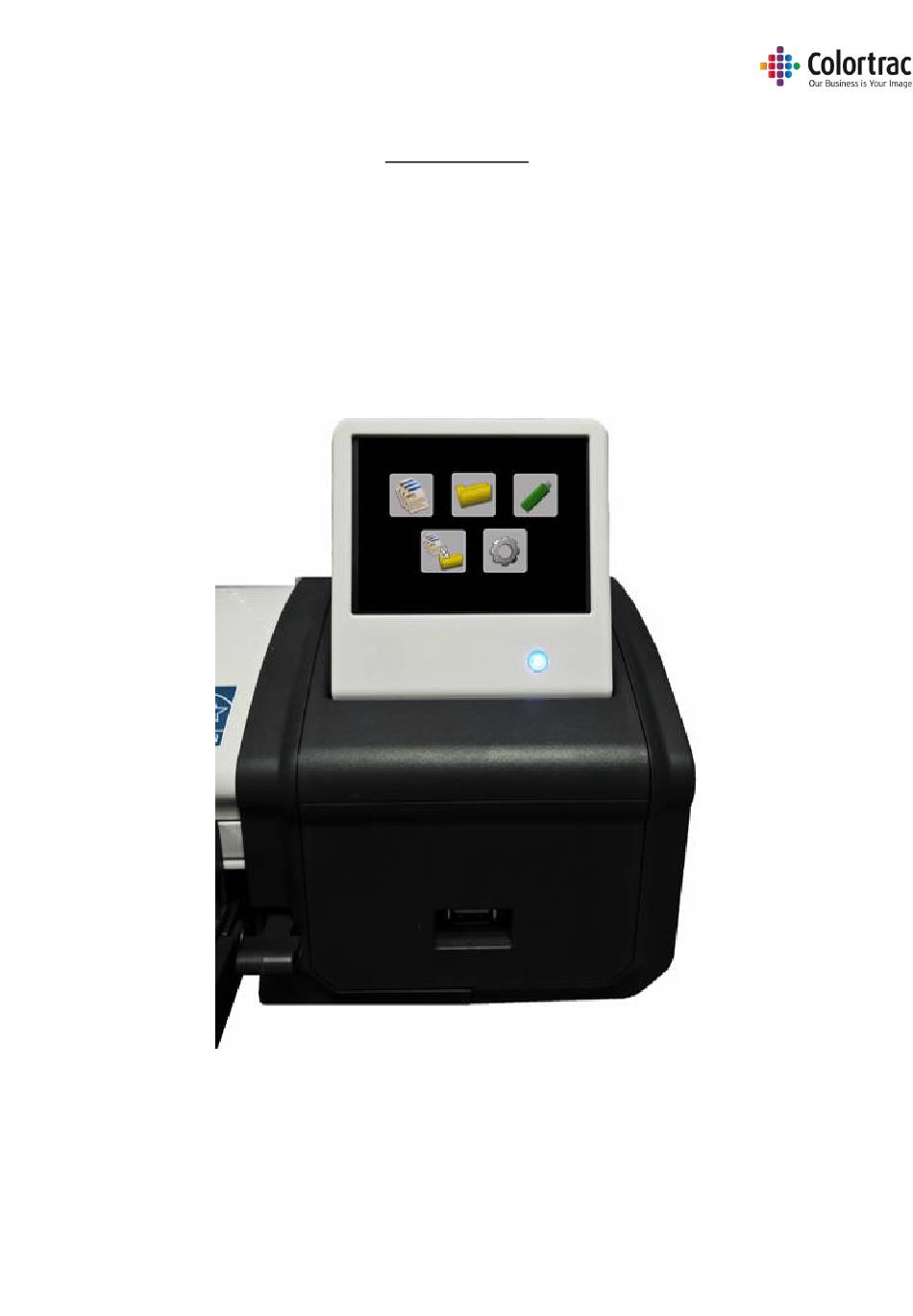

UD56T / UC56T
L24ei / L36ei Large Format Scanner
User Manual
V1.00
Version 1.00
1
Global Scanning UK Ltd © 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC56T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Colortrac UC56T

Summary of Contents for Colortrac UC56T

  • Page 1 UD56T / UC56T L24ei / L36ei Large Format Scanner User Manual V1.00 Version 1.00 Global Scanning UK Ltd © 2018...

  • Page 2: Table Of Contents

    Contents Warnings ..............................5 Declaration of Conformity ........................6 Scanner Overview ........................... 7 Main Features ............................. 7 Scanner - Identification of parts ......................8 Unpacking ............................... 9 Box contents............................. 10 Fitting the scanner to the printer ......................11 Using the scanner on a desktop ......................13 Connecting the scanner ........................
  • Page 3 Copy – ScanApp Mode = Standard ....................49 Copy – ScanApp Mode = Plus ......................52 Copy & Archive ..........................56 Operation: Function Settings ........................ 60 Operation: Saving your preferred Function Settings as power on Defaults ........66 Application notes ..........................67 Tightly curled documents .........................
  • Page 4 Glossary of Terms..........................90 Icon Guide L24ei / L36ei – Function Settings: ..................91 Icon Guide L24ei / L36ei – Scanner Settings: ..................92 Version 1.00 Global Scanning UK Ltd © 2018...

  • Page 5: Warnings

    Warnings Do not drop the scanner. The scanner contains components that could be damaged by severe shock. Beware of trapping fingers when opening or closing the scanner. Beware of exposed electrical connectors if the covers are removed. No user serviceable parts inside.

  • Page 6: Declaration Of Conformity

    Declaration of Conformity Manufacturer Global Scanning Suzhou Co. Ltd #39 Dongjing Industrial Zone, #9 Dongfu Road, Suzhou Industrial Park, Suzhou, Jiangsu, 215123 Model: UD56T, UC56T L24ei, L36ei Product name: Large Format Scanner Function: Rating voltage: 3.42A Rating current: FSP065-REBXX (X=0-9, A-Z or Blank)

  • Page 7: Scanner Overview

    Scanner Overview Main Features  Functions: o Scan to USB memory stick. o Scan to network connected PC. o Copy. o Copy & Archive.  Touch Screen.  Optical resolution: 600dpi.  SingleSensor – patented single in-line image array.  Dual sided LED illumination of original documents reduces the shadow effect occurring at creases and folds of the drawings.

  • Page 8: Scanner - Identification Of Parts

    Scanner - Identification of parts  Document Return Guides, Paper Tray, Document size guide Paper tray catch Paper Guides Paper tray catch  USB stick slot, User Interface (UI) – LCD touch screen. Power switch. Power Ethernet connector.  A pair of Magnetic Document Edge Guides are supplied and can be positioned on the paper tray to help align and position a document.

  • Page 9: Unpacking

    Unpacking  With the scanner box on the floor, or a suitable large table, remove the top of the cardboard box.  Remove the Calibration target and keep it in a safe place for future use. (It is protected inside a cardboard sleeve inside a sealed plastic bag).

  • Page 10: Box Contents

    Box contents.  Unpack & check the remaining contents of the box, so as not to throw away important item with the packaging. Item Description Qty. Item Description Qty. Ethernet Cable Screw Hexagon Socket Button Head M4x10 Mains Cable Thumb screw Power Supply Cable clip 3mm Hex Tool...

  • Page 11: Fitting The Scanner To The Printer

    Fitting the scanner to the printer  Install the scanner mounting brackets on the printer. (Supported printers: iPF 670/671/770/771, TM-200/300/5200/5300). Repeat the following steps for both sides of the printer. o Remove the screw using the 3mm hex tool supplied. Left side: Right side: o Remove the 2 covers.
  • Page 12 o Left and right scanner mount fitment complete.  Fit the scanner to the scanner mounting brackets. Locate the scanner’s feet in the holes on top of the scanner mounts and pull the scanner to the front. IMPORTANT: Secure in place using the 2 thumb screws provided. Failure to do so could result in the scanner falling off the mounts.

  • Page 13: Using The Scanner On A Desktop

    Using the scanner on a desktop  To use the scanner on a desktop, fit the two feet. These include rubber pads to prevent the scanner sliding and allow the scanner to be tilted back for cleaning, without damaging the Document Return Guides or the cables.

  • Page 14: Connecting The Scanner

    Connecting the scanner  Connect the Ethernet cable to the rear of the scanner. o The scanner controller communicates with the printer over the network. (The printer must be installed on the network, on-line and ready for the system to be able to Copy). If the printer is NOT on the network, use a direct Ethernet cable connection from the scanner to the printer, but this is not the preferred connection as the system will not be able to Scan to PC.

  • Page 15: Operation

    Operation Power  The scanner is powered on/off by the power switch on the right-hand end.  When powered on, the amber LED will illuminate and after a few seconds, it turns blue and the LCD displays various icons. (If the LED remains amber, check the paper tray is closed correctly). Power on.
  • Page 16 Function Page (Copy) Eject, Function Settings, Start Function Function (Copy) Settings Power on factory default Function Settings: Colour mode, Standard Quality, Auto-size, Portrait, Brightness=0, Black Point(BP)=1, White Point(WP)=1, Crop off, 100% Copy scale, 1 Copy, File Type, iPFX, PCX. The defaults can be changed to your preferred Function Settings: Functionality –...

  • Page 17: Sleep Mode

    Sleep mode  The scanner complies with the Energy Star standard, so will enter sleep mode after 15 minutes of no use to save electricity. (The time cannot be changed or the feature disabled).  When in sleep mode, the scanner consumes very little power. It will flash the Blue LED every 10 seconds.

  • Page 18: Configuring The Language Of The Scanner

    Configuring the language of the scanner  Turn on the power switch on the side of the scanner.  From the Home Page, select Scanner Settings. Scroll to the left and select Language.  Select Language. English Text (Sets ScanApp Mode = Plus) Japanese Text (Sets ScanApp Mode = Standard) Version 1.00 Global Scanning UK Ltd ©...

  • Page 19: Configuring The Scanapp Mode Of The Scanner

    Configuring the ScanApp Mode of the scanner  From the Home Page, select Scanner Settings. Scroll and select ScanApp Mode.  Select ScanApp Mode. Plus Mode (Default for English language). The ScanApp Lei is used to add functionality & productivity. If there is more than 1 PC running the ScanApp Lei, the preferred Plus PC can be set.
  • Page 20 Standard Mode (Default for Japanese language). No PC is required. (1) Copy – The scanner will transfer data direct to the printer. The scanner has to wait for the printer to finish before the next job can be started. (2) Scan to USB – TIFF ONLY. Scan data is stored internally on the scanner, and then transferred to the USB.

  • Page 21: Configuring The Network Connection Of The Scanner

    Configuring the network connection of the scanner DHCP  From the Home Page, select Scanner Settings.  Scroll and select the scanner Network Icon, then DHCP. o After selecting DHCP, the scanner will request an IP address from the server and then display it automatically.

  • Page 22: Static Ip Address

    Static IP Address  A static IP address and subnet mask should be entered and configured by your network administrator or IT support provider.  From the Home Page, select Scanner Settings.  Scroll and select the scanner Network Icon. ...
  • Page 23 o Select IP or Mask to enter the required values. Use the Delete Key, to remove the current address, and type in the new address including all “0s”. Press the Enter key to save. Cancel - Back up 1 level. Cancel number entry and exit this menu. Home.

  • Page 24: Scanapp Lei Installation

    ScanApp Lei Installation  Identify network connected PCs on which to install the ScanApp Lei. The PC needs to be on and the ScanApp Lei running to allow the scanner to Scan to PC. Insert the CD into the selected PC and the installation will automatically start. Note: You can install the ScanApp Lei on many PCs.
  • Page 25  Select Next. Select Next.  Wait for the program to install, then select Finish.  If your PC does not already include Microsoft’s® Visual C++ Redistributable files, the following install Windows will appear. (If you do not see these Windows, it is not a problem. It means the PC has these components installed already).
  • Page 26  Browse to the Documents folder on the CD. This folder contains the L24ei/L36ei User Manuals and software release notes. Please read and / or print the documents.  The ScanApp Lei will run as a Windows® Tray App and will start automatically every time the PC is started.

  • Page 27: Scanapp Lei Operation

    ScanApp Lei Operation  Start the ScanApp Lei. o The hostname of the PC running the ScanApp Lei is displayed (in this example GS-UK-LT- 0009). The hostname is displayed on the L24ei/L36ei scanner when it searches for the PCs running this software. o The IP address of the PC running the ScanApp Lei is displayed (in this case 192.168.1.173).
  • Page 28 Cloud enabled = scan files sent to Direct Print & Share ready to upload. o The Print Job lists the copies being spooled from the scanner when Copying in Network Mode = Plus. (If the ScanApp Lei is not running, then the scanner will do its own print spooling).
  • Page 29 Scanner Information. Lists all available L24ei / L36ei scanners on the subnet. Select the scanner you wish to review. Select it Version 1.00 Global Scanning UK Ltd © 2018...
  • Page 30 Refresh. If the scanner is not listed, ensure it is powered on and connected to the network, then press the Refresh button to refresh the list of connected scanners. Download a text file with scanner information including all allocated PC numbers and printer numbers.

  • Page 31: Scanapp Lei Error Messages

    ScanApp Lei Error Messages Message User Action Please Connect to a Supported The ScanApp Lei will needs at least one of the supported Printer. printers to be present on the network and checks periodically for the printer. This will not normally affect use of the system, but on occasion you may see this message.

  • Page 32: Configuring The Scanner's Devices

    Configuring the scanner’s devices • The scanner can select a different printer for copying, or PC for scanning, for each individual operation. By default, the scanner will auto search for available devices on a per Copy/Scan basis. The scanner can auto search for up to a maximum of 15 printers or 15 PCs on the subnet.
  • Page 33 • Select “Auto” followed by “tick” to start the search for available printers on the network. • Wait while the scanner searches for available supported iPF printers. It will then list the available printers by model and their Serial Number. The Green Dot indicates it is online.
  • Page 34 • Go back up to the Printer Setup menu to define printer numbers. Select “2”, then from the list, select the printer you wish to be assigned #2. • Go back up to the Printer Setup menu to define printer numbers. Select “3”, then from the list, select the printer you wish to be assigned #3.

  • Page 35: Configuring The Pcs

    Configuring the PCs • To define the PCs, we must first search for available devices on the network and assign them number. The PC can then be selected by this number. • From the Home Page, select Scanner Settings. • Scroll and select PC#.
  • Page 36 • Please wait while the scanner searches for available PC with the ScanApp Lei running. It will then list the available PCs by their PC name. The Green Dot indicates it is online. A red dot indicates it is offline. •...
  • Page 37 • Go back up to the PC Setup menu to define PC numbers. Select “2”, then from the list, select the PC you wish to be assigned #2. In this example, we have 2 available PCs running the ScanApp Lei and we have set as follows: ...

  • Page 38: Operation

    Operation Loading documents into the scanner  Caution: The scanner’s scan glass will be permanently damaged if you try to scan documents that contain staples, paper clips or other similar objects. Avoid scanning documents with sticky tape or Post-It notes as the glue can adhere to the scan glass resulting in image quality issues. ...

  • Page 39: Opening/Closing The Scanner

    The document can be ejected to the rear of the scanner by pressing the eject button, which is available from the Copy, Scan to USB, Scan to PC or Copy & Archive pages. Eject  If a document has jammed, open the scanner and remove the document by hand. The jammed document can be removed from the front or back of the scanner as preferred.

  • Page 40: Scan To Usb: Tiff

    Scan to USB: TIFF  Scan to USB: File type = TIFF. The scan data is stored internally on the scanner, then sent to the USB. No PC is required.  Insert a USB memory stick in to the L24ei / L36ei scanner. The USB stick must have been formatted as FAT32 and have a maximum capacity no greater than 128GB.
  • Page 41  Leave the remaining Scan to USB Settings at default: Colour mode, Standard Resolution, Auto-size. Brightness=0, BP=1, WP=1, Crop off.  Press the Green button to start the function. Cancel: Pressing the Red Stop button will stop the scanner immediately. The document is scanned to internal memory displaying MBs saved and the document will be ejected.

  • Page 42: Scan To Usb (Scanapp Mode = Plus): Pdf, Jpg, M-Pdf

    Scan to USB (ScanApp Mode = Plus): PDF, JPG, M-PDF  Scan to USB: File types = PDF, M-PDF & JPG. The scan data is transferred directly to the PC while scanning. The ScanApp Lei compresses and sends the scan file back to the USB in the scanner. ...
  • Page 43  Select USB Scan Settings and select file type required: PDF, JPG, M-PDF.  Leave the remaining Scan to USB Settings at default: Colour mode, Standard Resolution, Auto-size. Brightness=0, BP=1, WP=1, Crop off.  Press the Green button to start the function. Note: If a Plus PC has not been assigned, the scanner will search for available PCs running the ScanApp Lei during the Scan to USB process.
  • Page 44 When all the pages have been added, press the red stop button to close the file.  The document will be scanned directly to the ScanApp Lei via Ethernet displaying MBs transferred and the document will be ejected. The ScanApp Lei compresses and coverts the file type, then the data is then written back to the USB stick at the scanner displaying the % complete.

  • Page 45: Scan To Pc

    Scan to PC  Ensure the ScanApp Lei is running on the PC to which you wish to send the scan file. Configuring the PCs  Ensure ScanApp Lei is has been configured with the scan folder of your choice. ScanApp Lei Operation ...
  • Page 46 Note: The Hostname of the assigned PC# is displayed at the top of the screen. If the Hostname is displayed in Red, then that PC is not on or the ScanApp Lei is not running. The status of the connection is updated only when you enter the menu. ...
  • Page 47  Leave the remaining Scan to PC Settings at default: Colour mode, Standard Resolution, Auto-size. Brightness=0, BP=1, WP=1, Crop off.  Press the Green button to start the function. Cancel: Pressing the Red Stop button will stop the scanner immediately. ...
  • Page 48  The document will be scanned directly to the ScanApp Lei via Ethernet displaying MBs transferred and the document will be ejected. Wait for the scan data to complete the transfer to the PC and the hour glass to disappear. ...

  • Page 49: Copy - Scanapp Mode = Standard

    Copy – ScanApp Mode = Standard  Standard mode. The scan data is stored internally on the scanner and sent to the printer. No PC is required.  Configuring the ScanApp Mode of the scanner  Ensure the printer is on-line and ready to print. Insert a document into the approximate centre of the scanner, face up.
  • Page 50  To change the iPF# select the Copy Settings. Scroll to iPF#, and press it. Select the iPF# you wish to use and select it. Note: The Serial Number of the assigned PC# is displayed at the top of the screen. If the Serial Number is displayed in Red, then that Printer is not available.
  • Page 51  Press the Green button to start the function. Cancel: Pressing the Red Stop button will stop the scanner immediately.  The document will be scanned to internal memory displaying MBs transferred and the document will be ejected. The scanner will then transfer the scan data to the printer displaying the % complete.

  • Page 52: Copy - Scanapp Mode = Plus

    Copy – ScanApp Mode = Plus  Plus mode. The scan data is transferred directly to the PC while scanning to make the scanner available for the next job sooner. The ScanApp Lei then sends print data to the printer. Configuring the ScanApp Mode of the scanner ...
  • Page 53  To change the iPF# select the Copy Settings. Scroll to iPF#, and press it. Select the iPF# you wish to use and select it. Note: The Serial Number of the assigned PC# is displayed at the top of the screen. If the Serial Number is displayed in Red, then that Printer is not available.
  • Page 54  Press the Green button to start the function. Cancel: Pressing the Red Stop button will stop the scanner immediately.  The document will be scanned directly to the ScanApp Lei via Ethernet displaying MBs transferred and the document will be ejected. Wait for the scan data to complete the transfer to the Plus PC and the hour glass to disappear.
  • Page 55  Collect your copy from the printer. Version 1.00 Global Scanning UK Ltd © 2018...

  • Page 56: Copy & Archive

    Copy & Archive  The scan data is transferred directly to the PC while scanning to make the scanner available for the next job sooner. The ScanApp Lei then sends print data to the printer and saves the scan file. ...
  • Page 57  The printer to be used is shown on the Copy & Archive page. This example shows the current printer selected as iPFX, so the scanner will complete an Auto Printer search and prompt the user to select the Printer before completing each scan. Also, the current PC selected is PCX, so the scanner will complete an Auto PC search and prompt the user to select the PC before completing each scan.
  • Page 58 Note: The Hostname of the assigned PC# is displayed at the top of the screen. If the Hostname is displayed in Red, then that PC is not on or the ScanApp Lei is running. The status of the connection is updated only when you enter the menu. ...
  • Page 59  The document will be scanned and then ejected. The scan data will be sent to the ScanApp Lei via Ethernet displaying MBs transferred. Wait for the scan data to complete the transfer to the Plus PC and the hour glass to disappear. The scanner is now ready for the next job. ...

  • Page 60: Operation: Function Settings

    Operation: Function Settings  On the scanner UI, select the function you wish to use. Copy Scan to PC Scan to USB Copy & Archive (= Copy plus Scan to PC in a single function) o From the function page, select the Setting to be changed. Select the new value you wish to use (Not all the Function Settings are available for all functions).
  • Page 61 M-PDF = Multi-Page PDF: Keep inserting pages to add to the document. When all the pages have been added, press the red stop button to close the file.  Colour mode Default = Colour Colour, Greyscale, Black and White  Quality Mode Default = Standard Standard,...
  • Page 62  Original document size Default = Auto Auto size. This will detect the size of the document as it is loaded. Full width of the scanner (24”/36”) and auto detect the length. Alternatively select to scan a Fixed Size independent of what size paper is loaded. ISO sizes ANSI sizes ARCH sizes...
  • Page 63  Copy scale factor (Copy, Copy & Archive only) Default = 100% Adjust Copy size by percentage Reduction No change Enlargement Adjust Copy size by selecting input and output standard ISO page sizes. Input Size = Output Size = Adjust Copy size by selecting input and output standard ANSI page sizes. Input Size = Output Size = Adjust Copy size by selecting input and output standard ARCH page sizes.
  • Page 64 Example of Copy Scale Factor: Select the Paper size system: ISO, ANSI or ARCH Select the input Paper size, followed by the output paper size. (E.g. From A4 to A3) Go back up to Copy page, that will show the % scale factor that will be used based on your choice of “From –...
  • Page 65  White Point. Increase to clean up a dirty background. Makes the whites whiter. Default = 1 0 to +6  Black Point. Increase to darken the shadow areas of the image. Makes the blacks blacker. Default = 1 0 to +6 ...

  • Page 66: Operation: Saving Your Preferred Function Settings As Power On Defaults

     PC# (Scan to PC, Copy & Archive only) Select the PC you would like the Scan to PC function to communicate with. Default = PCX. Auto search & select the PC for each Scan to PC operation. Operation: Saving your preferred Function Settings as power on Defaults ...

  • Page 67: Application Notes

    Application notes Tightly curled documents  Prior to scanning, flatten the document as best as possible.  During the scan process, guide the document as it feeds through the scanner to prevent the original re-entering the scanner. If the original is allowed to re-enter the scanner, it will result in a paper jam and possible damage the original document.

  • Page 68: Document Carrier Sheets

    Document Carrier Sheets  Delicate documents: Old, fragile documents could be damaged further when feeding through a scanner. To avoid such problems, these delicate documents can be placed inside a document carrier sheet before scanning to provide protection.  Documents Carrier Sheets can also be useful when scanning o Transparent documents to improve light reflection and provide a more even image.

  • Page 69: Eliminating Clipped Copies

    Eliminating clipped copies  If you scan a 594mm original as fixed size A1, then the image is 594mm wide.  The printer has a 3mm margin either side that it cannot print within. That means on a 594mm roll, only 588mm can be printed on. Therefore, copying a 594mm original scan onto the 588mm printable width of the paper will mean the image is shifted 3mm to the side and 6mm (2 x 3mm) is clipped from the far side.

  • Page 70: Scanner Settings

    Scanner Settings  From the Home Page, select Scanner Settings.  Scroll left or right and select the Setting to be changed, then select the new value to be used.  Information. There is nothing to adjust.  Save Current Function Settings as Default. Functionality –...
  • Page 71  Calibration. See Calibration  Stitch adjustment. See Stitch Adjustment  Scan Length. See Scan Length Adjustment  Standard / Plus ScanApp mode. See Configuring the ScanApp Mode of the scanner Plus Mode (Default when in English language) Standard Mode (Default when in Japanese language) ...

  • Page 72: Saving Scanner Settings

     Network Settings. See Configuring the network connection of the scanner o Automatic IP Settings DHCP o Manual IP Settings Static IP Address IP Address, Subnet Mask  Select Language. See Configuring the language of the scanner English Text (Sets ScanApp Mode = Plus) Japanese Text (Sets ScanApp Mode = Standard) ...

  • Page 73: Maintenance

    Maintenance Cleaning  Open the scanner.  Spray 99% isopropyl alcohol onto a lint free cloth.  Using the cloth, clean the following components: o Top drive rollers o Scan glass o Hold up flap o Bottom rollers (Rotate rollers by hand to clean all round). Consumables ...

  • Page 74: Calibration

    Calibration  Remove the document return guides to prevent the calibration target getting stuck during forward/rewind motion required for calibration.  Clean the scanner.  Insert the calibration target (it must be clean and in good condition) into the centre of the scanner face up, black end first.
  • Page 75  Scroll and select Calibration (Normalise).  Select the Tick icon and the calibration target will be scanned back & forth until complete. Please wait until the scanner returns to the Home screen. This process will take a few minutes. Return the calibration target to its protective cover for safe keeping.

  • Page 76: Stitch Adjustment

    Stitch Adjustment  Remove all the document return guides to prevent the calibration target getting stuck during forward/rewind motion required for calibration.  Clean the scanner.  Insert the calibration target (it must be clean and in good condition) into the scanner face up, black end first.
  • Page 77  Scroll and select Auto Stitch.  Select the Tick icon and the calibration target will be scanned back & forth until complete. Please wait until the scanner returns to the Home screen. This process will take a few minutes. Return the calibration target to its protective cover for safe keeping.

  • Page 78: Scan Length Adjustment (Automatic)

    Scan Length Adjustment (Automatic)  The Scan Length is automatically adjusted when completing the Stitch Adjustment. Scan Length Adjustment  To correct the length of scans or copies, Copy a document and measure the length of the drawing on both the original and the copy. The copy should be within 0.2% of the original. So, for a 500mm drawing, the acceptable range is 499mm to 501mm.
  • Page 79 o Measure the length of the drawing on both the original and the copy. Calculate the adjustment figure by dividing the length of the original by the length of the copy. Adjustment figure = Original drawing length = 885mm = 0.9910 Copied drawing length 893mm Original...

  • Page 80: Loading Firmware

    Loading Firmware  Locate the firmware zipped file and a USB stick, which must have been formatted as FAT32 with a maximum capacity no greater than 128GB.  On a PC, use Windows Explorer® to extract the firmware zipped files to the root of a USB memory stick.
  • Page 81 o Scroll and select Load Firmware. o Select the Tick icon and the scanner will start to load firmware and will indicate progress. o DO NOT SWITCH OFF the scanner during the firmware loading process as this can cause permanent damage to the scanner. The UI will display the percentage complete while it loads the firmware into the scanner.

  • Page 82: Troubleshooting

    Troubleshooting Error Codes Error Symbol Message User Actions Code Scanner open Close the scanner No Document loaded Load a document Invalid Model Power cycle. If problem persists, call service. Power cycle. If problem persists, Calibrate. Calibration required If problem persists, Stitch. If problem persists, call service.

  • Page 83: Operation Errors

    Operation errors Document does not feed correctly.  The document is not fed straight into the scanner. Hold the original document with two hands and feed into the scanner until you feel equal resistance on both sides from the feed rollers. If the document is not straight, open the scanner to remove the original, close the scanner and try again.

  • Page 84: Testing Connectivity

    Testing connectivity  If you are still having problems with the Scan to PC or Copy functions, eliminate the scanner and ScanApp Lei as the cause of the issue by testing using a direct Ethernet connection. This is intended as a diagnostic step only and not recommended as the permanent configuration. ...

  • Page 85: Supported Configurations

     If the printer status and communication is still OK, the scanner will setup a print job via the LPR protocol on TCP port 9100. o Any problems with this communication should result in an Error 16 as well. Scan - Ports and protocols: ...

  • Page 86: Image Quality

    Image Quality  The following scanned image shows possible image errors and the actions required to resolve them. Vertical lines = Dirt on Scan Colour variation over approximately 8” glass or poor calibration – (200mm) sections, or vertical streaks within these sections –...

  • Page 87: Incorrect Scan Or Copy Length

     Calibrating the scanner will remove the streaking and clean up the white background. Calibration adjusts the optical sensitivity of each pixel in the sensor to give the correct levels of black and white. Calibration  Auto-stitch the scanner to align broken lines. Auto-stitch adjusts the electronic alignment of each segments of the scan sensor for both front to back and left to right alignment to avoid “stitch errors”...

  • Page 88: Specifications

    Specifications L 24e, L 36e Name L24ei / L36ei MFP scanner is ONLY able to print to iPF670/671/770/771, Models (All regions) TM-200/300/5200/5300 Scan Technology SingleSensor with multiple dual sided LED illumination Illumination L24ei: 64 LEDs, L36ei: 96 LEDs Optical Resolution (dpi) 600dpi.
  • Page 89 COPY 300/300dpi Standard = 1ips colour, 3ips mono 300/600dpi High = 1ips colour, 3ips mono 600/600dpi Best = 0.5ips colour, 1.5ips mono Max scan speed (inches/sec) SCAN 200dpi Standard = 1ips colour, 3ips mono 300dpi High = 0.5ips colour, 1.5ips mono 600dpi Best = 0.33ips colour, 1ips mono Scan to USB USB2, 128GB FAT32.

  • Page 90: Glossary Of Terms

    Glossary of Terms 128GB 128 Giga Bytes. Size of memory. ANSI America National Standards Institute. Standard paper sizes definition. ARCH Architectural paper sizes. Standard paper sizes definition. Adjusts the electronic alignment of each segments of the scan sensor for Auto-stitch both front to back and left to right alignment to avoid “stitch errors”...

  • Page 91: Icon Guide L24Ei / L36Ei – Function Settings

    Copy, Scan to PC, Scan to USB, Copy & Archive Icon Guide L24ei / L36ei – Function Settings:  Colour mode: Colour, Greyscale, Black and White  Quality Mode: Standard, High, Best  Document size: Auto width x length 24”/36” x auto length ISO sizes ANSI sizes ARCH sizes...

  • Page 92: Icon Guide L24Ei / L36Ei – Scanner Settings

    Icon Guide L24ei / L36ei – Scanner Settings:  Scanner information.  Save current Function Settings as default.  Restore factory default Function Settings.  Load Firmware.  Calibration.  Stitch adjustment.  Scan length adjustment.  ScanApp Mode: Standard, Plus.
