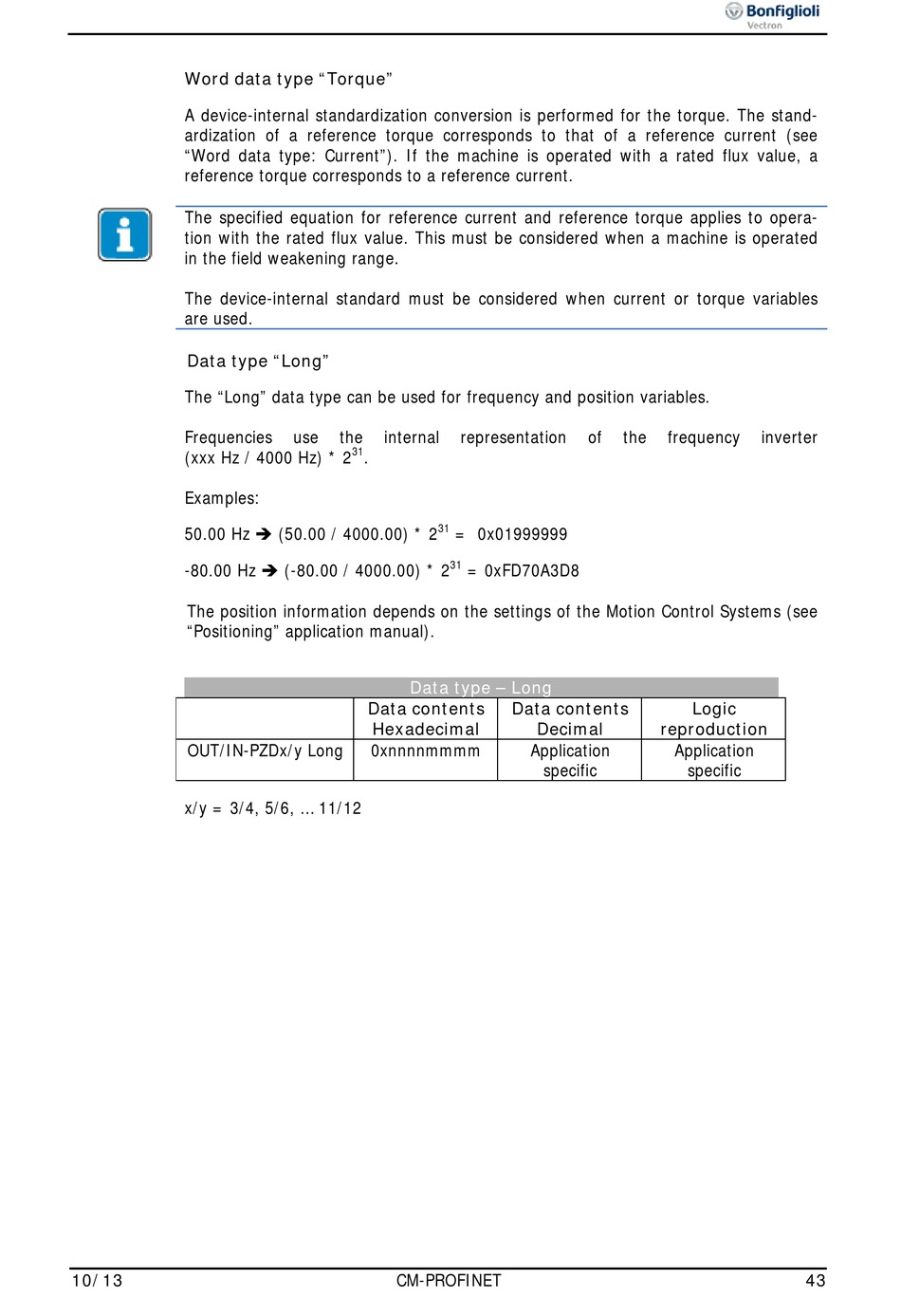

Word data type "Torque"
A device-internal standardization conversion is performed for the torque. The stand-
ardization of a reference torque corresponds to that of a reference current (see
"Word data type: Current"). If the machine is operated with a rated flux value, a
reference torque corresponds to a reference current.
The specified equation for reference current and reference torque applies to opera-
tion with the rated flux value. This must be considered when a machine is operated
in the field weakening range.
The device-internal standard must be considered when current or torque variables
are used.
Data type "Long"
The "Long" data type can be used for frequency and position variables.
Frequencies
(xxx Hz / 4000 Hz) * 2
Examples:
50.00 Hz  (50.00 / 4000.00) * 2
-80.00 Hz  (-80.00 / 4000.00) * 2
The position information depends on the settings of the Motion Control Systems (see
"Positioning" application manual).
OUT/IN-PZDx/y Long
x/y = 3/4, 5/6, ... 11/12
10/13
use the internal representation
31
.
31
= 0x01999999
31
Data type – Long
Data contents
Hexadecimal
0xnnnnmmmm
CM-PROFINET
of the
= 0xFD70A3D8
Data contents
Decimal
Application
specific
frequency inverter
Logic
reproduction
Application
specific
