ADC-09CF
Portable Hydraulic Dental Stool Kit
NSN: 6520-01-652-9171
ADC-09S

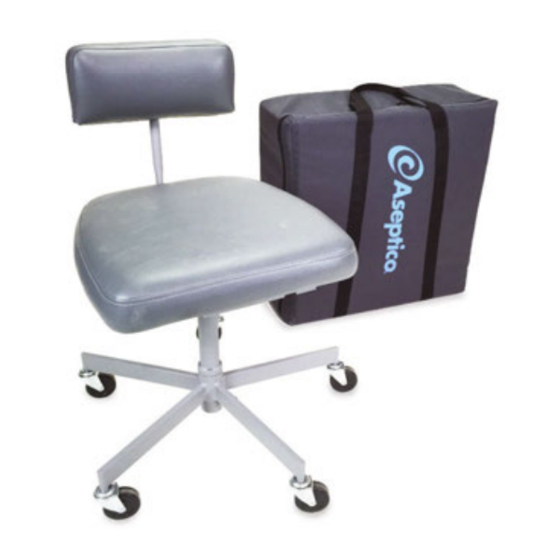

Portable Hydraulic Dental Stool
OPERATION MANUAL
& PARTS LIST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADC-09CF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aseptico ADC-09CF

  • Page 1 ADC-09CF Portable Hydraulic Dental Stool Kit NSN: 6520-01-652-9171 ADC-09S Portable Hydraulic Dental Stool OPERATION MANUAL & PARTS LIST...
  • Page 2: Table Of Contents

    Warranty & Repairs .....11 • Made in the USA ITEMS FURNISHED: The Aseptico portable hydraulic dental stool ADC-09CF provides seating for a doctor or assistant during field dentistry and medical treatments.
  • Page 3: Safety Precautions

    Important additional information and hints. SAFETY PRECAUTIONS: Aseptico accepts no liability for direct or consequential injury or damage resulting from improper use, aris- ing in particular through the non-observance of the operating instructions, or improper preparation and maintenance of this product.
  • Page 4: Setup Instructions

    ADC-09CF / ADC-09S SETTING UP THE STOOL: Fig.3 - Attaching Seat/Cylinder to the Base 1. Remove the stool components from the soft case. Note that the Gas Cylinder is stowed on the bottom of the Seat in a protective vinyl sleeve.
  • Page 5: Operation

    ADC-09CF / ADC-09S OPERATING THE STOOL: 3. LOCKING CASTERS: Rotate the levers on the locking casters to the vertical position to lock the casters (Fig 7a). 1. RAISING THE SEAT: Rotate the levers to the horizontal position to Locate the Height Adjustment Lever under the unlock the casters (Fig.
  • Page 6: Disassembly & Repacking

    ADC-09CF / ADC-09S DISASSEMBLY & REPACKING: Fig.10 1. Lower the Seat all the way down and fold the Backrest down. 2. Pull the ring on Base Latch and lift Gas Cylinder and Seat Assembly from Base (Fig. 8). Fig.8 - Removing Seat/Cylinder Subassembly CYLINDER 5.
  • Page 7 ADC-09CF / ADC-09S 7. Guide the Stud on the bottom of the seat into the 9. Pull soft case closed as required to assist zipper in hole in the middle of the Base (Fig. 13). closing without strain. Soft bag is designed for a snug fit to hold components of Stool firmly.
  • Page 8: Parts Lists

    ADC-09CF / ADC-09S FINAL ASSEMBLY PARTS...
  • Page 9 BASE ASSY ADC-09 STOOL 330643 CASTER 2 1/2" HARD RUBBER 730267 CASTER 2 1/2" HARD RUBBER LOCKING 730747 CASE SOFT ADC-09 STOOL 410213 CASE HARD (ADC-09CF only) 410214 STUD PACKAGE 462422 BRACKET COLUMN STORAGE 462423 SLEEVE COLUMN 462484 C/S BRNSOC STNLS 10-32 X 7/8...
  • Page 10: Troubleshooting Guide

    Cylinder Piston. Replace Cylinder if necessary. Air is leaking from the gas cylinder. Remove and replace Gas Cylinder. Refer to Parts List, page 9 for part number and then contact Aseptico to reorder. SYMBOL DEFINITIONS: Consult Instructions For Use P.O.
  • Page 11: Cleaning

    Aseptico's sole obligation under prod- uct warranty is (at its sole option and discretion) to repair or replace any defective component or prod- uct in part or whole. Aseptico shall be the sole SPECIFICATIONS: arbiter of such action.
  • Page 12 P.O. Box 1548 • Woodinville, WA 98072 8333 216 Street S.E. • Woodinville, WA 98072 (425) 487-3157 • (800) 426-5913 www.aseptico.com • info@aseptico.com P/N: 421073 Rev. G ECO 14684 PRINTED IN THE USA 03/2019...
