- Page 1 OPERATION MAINTENANCE INSTRUCTION MANUAL ADU-03 ST Manual Dental Control System HVE and Saliva Ejector options...
-
Page 2: Table Of Contents
• Figure 1 - Case Contents ... .2 To prevent injury to people and damage to • Figure 2 - ADU-03ST Setup ..2 property, please heed relevant warnings Remote Setup . -
Page 3: Package Contents & Options

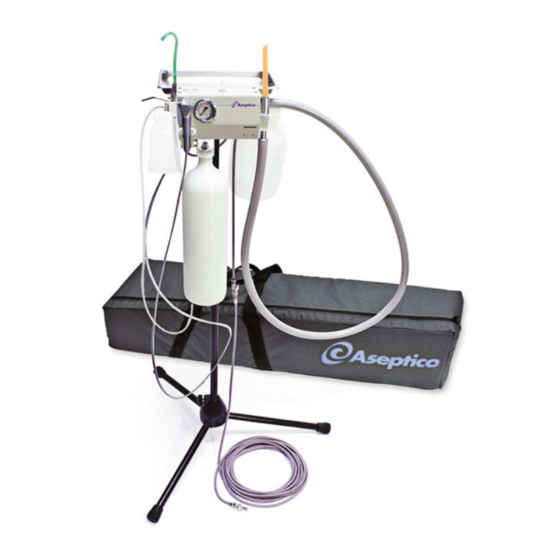

The Aseptico ADU-03ST is one of the finest high volume evacuator systems available to the professional. Offering manual activation and a remote stand, the ADU-03ST provides an economic HVE control system for a dental operatory, hygienist's room, or satellite Congratulations office. -
Page 4: Setting Up The Unit
Collection Container (Optional) AA-21ST HVE* Hose Assembly (Optional) * High Volume Evacuator 1. The ADU-03ST comes factory-mounted on Figure 2 - ADU-03ST Setup a tripod stand. 2. Remove the system from the carrying case (Fig. 1), fully extend tripod legs, and stand AA-21ST HVE (Optional) the system up (Fig. -
Page 5: Remote Setup
The Saliva Ejector System consists of a 6. Slide the accessory tray between the plastic waste container and a single low- ADU-03ST chassis back and the mounting velocity hose. Mount the waste container block. to the quick connect on the mounting block located on the back left-hand side of the chassis (see Fig. -
Page 6: Operation Functions
OPERATION FUNCTIONS - Cont’d Figure 4 Saliva Ejector ON/OFF Toggle (Optional) Pressure Gauge AA-21ST AA-25ST High Volume Evacuator Saliva Ejector (Optional) (Optional) 3-Way Syringe AA-25ST Collection Container (Optional) AA-21ST HVE* AA-61 WATER OUT Collection Container Connector (Optional) Water Supply Bottle * High Volume Evacuator OPERATION FUNCTIONS (Refer to Fig. -
Page 7: Unit Operation
UNIT OPERATION 3-Way Air/Water Syringe - Depress the right Optional Saliva Ejector - Remove the saliva button for air operation, and the left button for ejector valve from its holder and insert a water operation. Depressing both buttons will standard saliva ejector tip. Turn the low create a mist. -
Page 8: Cleaning
Aseptico's sole obligation under product warranty is (at its sole option and discretion) to repair or replace any defective component or product in part or whole. Aseptico shall be the sole arbiter of such action.
