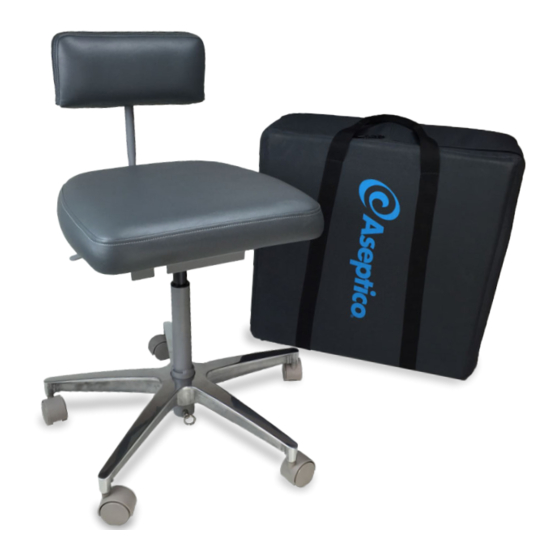

- Page 1 ADC-10 Portable Dental Stool AseptiStool OPERATION MANUAL & PARTS LIST...
-
Page 2: Safety Precautions
! SAFETY PRECAUTIONS Your new Aseptico ADC-10 portable stool is the finest adjustable Aseptico accepts no liability for direct or consequential injury or dam- gas-shock stool available to the dentistry and medical professions. age resulting from improper use, arising in particular through the... -
Page 3: Seat Height Adjustment
ADC-10 Remove the base from the padded carrying case and turn it Lift the stool up from the seat to ensure that the gas over on its wheels, next to the gas-cylinder and seat cylinder is securely latched at both ends. If either end separates, repeat steps 4-5 above to ensure both latches are properly engaged. - Page 4 ADC-10 Turn over the base and place it (wheels up) in the padded DISASSEMBLY case with the latch in any position EXCEPT the position shown with the “X” to prevent the latch from scratching the frame of the stool during transport. Lower the seat all the way down and fold down the backrest.
- Page 5 ADC-10 Hold the gas-cylinder in place with one hand and locate the All the stool components should fit together in the soft case as shown in the bottom view and top view cone-shaped stud with the other hand. While continuing to hold the gas-cylinder in place with one hand, use your other hand to guide the cone-shaped stud on the bottom of the seat into the hole...
- Page 6 ADC-10 PARTS FINAL ASSY ADC-10 STOOL 120401 BACKREST CUSHION ASSY ADC-08 330074 (Gray) 330685 (Blue) 330744 (Red) BACK SUPPORT ASSY PNTD ADC-08 330080 COLUMN STOOL ASSY ADC-09 330644 SEAT FRAME ADC-09 STOOL 330645 LEVER ASSY ADC-09 STOOL 330646 SEAT CUSHION ASSY ADC-09 330664 (Gray) 330687 (Blue) 330745 (Red)
-
Page 7: Troubleshooting
Customer Service will provide instructions, usually directing that Minimum Seat Height: 18’’ (45.7 cm) the product be returned for service. Shipment to Aseptico and the Maximum Seat Height: 25.5’’ (64.8 cm) cost thereof is always the responsibility of the purchaser. - Page 8 8333 216th Street S.E. Woodinville, WA 98072 Phone (425) 487-3157 • Toll Free (800) 426-5913 Web: www.aseptico.com Email: info@aseptico.com P/N 421078 • Rev. D • ECO 14087 • 03/2017 • Printed in the USA...
