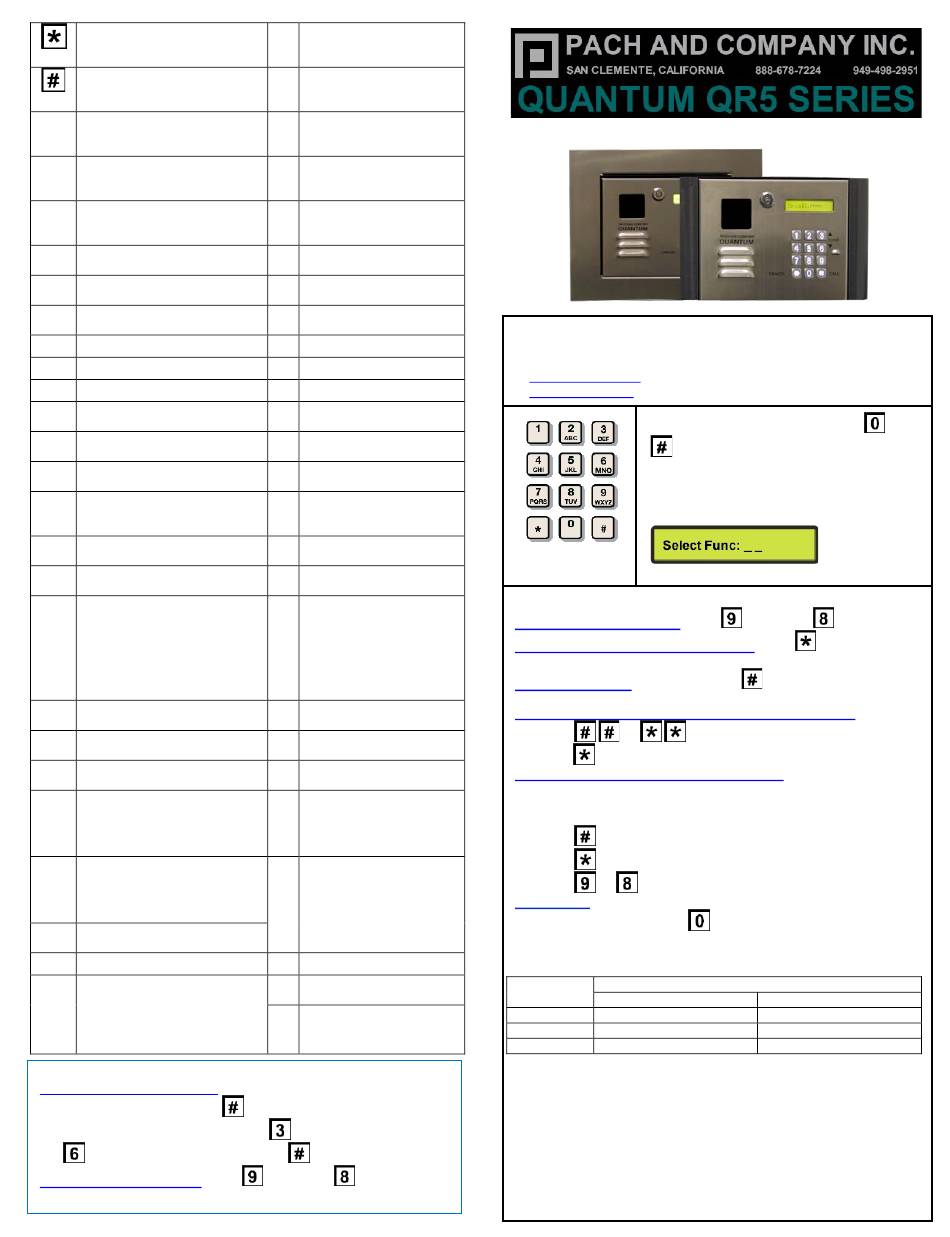

PACH & COMPANY Quantum QR5 Series Quick Manual

Exit program, cancel call
Save program
00 Change master code (0000 is
default)
01 Add new forwarding tenant's
directory
02 Edit existing tenant's directory
03
Delete existing tenant's
directory
04 Clear all forwarding tenant's
directory
05
Call Forwarding
06 New access code
07
Delete access code
08 Clear all access code
09 Access code digit (4-8 digit).
Default is 4-digit
10 Add new card
11 Delete card
12 Clear all card
13 Set time
14 Set date
15 Initializing event recording
16 AUS= auto unlock schedule
(0-9 schedule)
17 TMZ= time zone. 20 TMZ, 00-
20.
18
HLD= holiday zone. 20 HLD,
1-20
20
AUXIN1
0= disable (default)
1= enable control by relay 1 open
interval
2= relay 1 control by AUXIN1
21 AUXIN2
0= disable (default)
1= enable control by relay 2 open
interval
2= relay 2 control by AUXIN2
22 Do not disturb
0= disable (default), 1= enable
23 Lock-out Count
24 Alarm
0= disable
1= local beep for 60 seconds
2= disable system for 60 seconds
with no beep
3= call directory (0-9)
OPERATION
TO CALL FROM THE SYSTEM
1. INTERCOM MODE PRESS
2. CALL FORWARDING MODE, press
to scroll name from Z-A then press
Opening the door remotely press
25 Keypad beep
0= disable (default)
1=enable
26
Door beep
0= disable
1= enable (default)
27 Talk time (060-240
second). Default=60
second
28 Unlock relay1 time
(12-99 second). Default=
12 second
29 Unlock relay2 time
(12-99 second). Default=
12 second
30
Call Forwarding
0= disable 1= enable
31 Call forwarding time
05-60 second
32
Forwarding directory
0-9
33 Temporary code
34
Special code
35 Temporary card
36 Special card
37 Initiate premise call
0=**, 1=## (default)
38 System acknowledge
(0-9). Default= 3
39 Remote access
0= disable
1=enable (default)
40 DTMF relay 1 (1-9).
Default=9
41 DTMF relay 2 (1-9).
Default=8
42 Relay 2 Mode
1= door control (default)
2= relay 2 trigger
simultaneously as relay 1
3= enable if function code 24
is enable
4= turn relay 2 on and off
On=7, Off=6
43 DND: do not disturb time
zone (0-9)
44 Disable Time zone relay
1, 2 or both
45
Relay 1 and 2 unlock
timer
46
Firmware version
48 PBX enable. Default=
disable
49 Edit Access code
50 Erase the memory to
factory default
51 Welcome screen
to scroll name from A-Z or
to call name selected.
(relay 1) or (relay 2)
• Missing Parts, contact Pach and Company 1-888-678-7224
• Defective system under manufacturer warranty,
call 1-888-678-7224 for advance replacement
•
24 Months warranty for complete system
•
6 Months warranty for Printed Circuit Board
Log on to programming: Press
simultaneously then release, the
welcome message will stop scrolling
(repeat if screen still scrolls) enter 4-digit
"MASTER
screen will show:
Select the
OPERATION
Opening the door remotely press
Opening the door with the access code
will stop scrolling) then press a valid 4-digit access code.
Extending talk time tenant must press
time out warning beep.
Calling into the system from premise location (Intercom)
1. Press or depending on function code 37, then
press to communicate with the person
Calling into the system from remote
Enable function code 39
1. Call the system phone number, hear one beep if the system
answering the call.
2. Press then 4-digit master code, hear one short beep
3. Press to establish two way communication
4. Press or to release the door.
Call waiting: function code 38 must be set 1-9 and function code 39
can be set either 1 or 0, press
calls
See Function Code 37
Relay 1
Open cycle ##9/**9
Open hold ##8/**8
Close ##7/**7
QR5IP and QR5IPFF DEFAULT IP
IP: 192.168.1.230
SUBNET: 255.255.255.0
GATEWAY: 192.168.1.1
DNS: 192.168.1.1
USERNAME: Administrator
PASSWORD: 8888
and
CODE" (0000 is default), the
"Function Code" from the table
(relay 1) or (relay 2)
press (display screen
from the phone after the
location:
on your phone to transfer between
Premise
Relay 2
##5/**9
##4/**4
##3/**3
