58 Controls and Indicators
When the Main Menu is displayed, you can have access to the following sections:
 Multicycle
 I/O Status
 Program Version
 Pump Usage (optional)
 Time Adjust (available according to chassis)
Displayed in the lower center of the screen is an indicator that monitors traffic on the network. This
indicator is called Network Load, and it shows values that reflect such traffic.
: The higher the network load value is, the heavier the traffic is on the network.
N
OTE
To exit this page and return to the Main Page, press "Esc". To choose a section from the Main Menu,
highlight the desired section using the up/down arrows and press the "OK" button.
Multicycle
The monitor used in Labrie's multiplexed system is user-friendly. Say you want to change the
multicycle settings of the packer. All you have to do is select
corresponding button at the bottom left corner of the monitor. From the displayed menu, choose the
option
SELECT THE NUMBER OF CYCLES
"OK". The multicycle settings can be changed from two to eight cycles. Choose the desired number
of cycles and press "OK". It could not be easier!

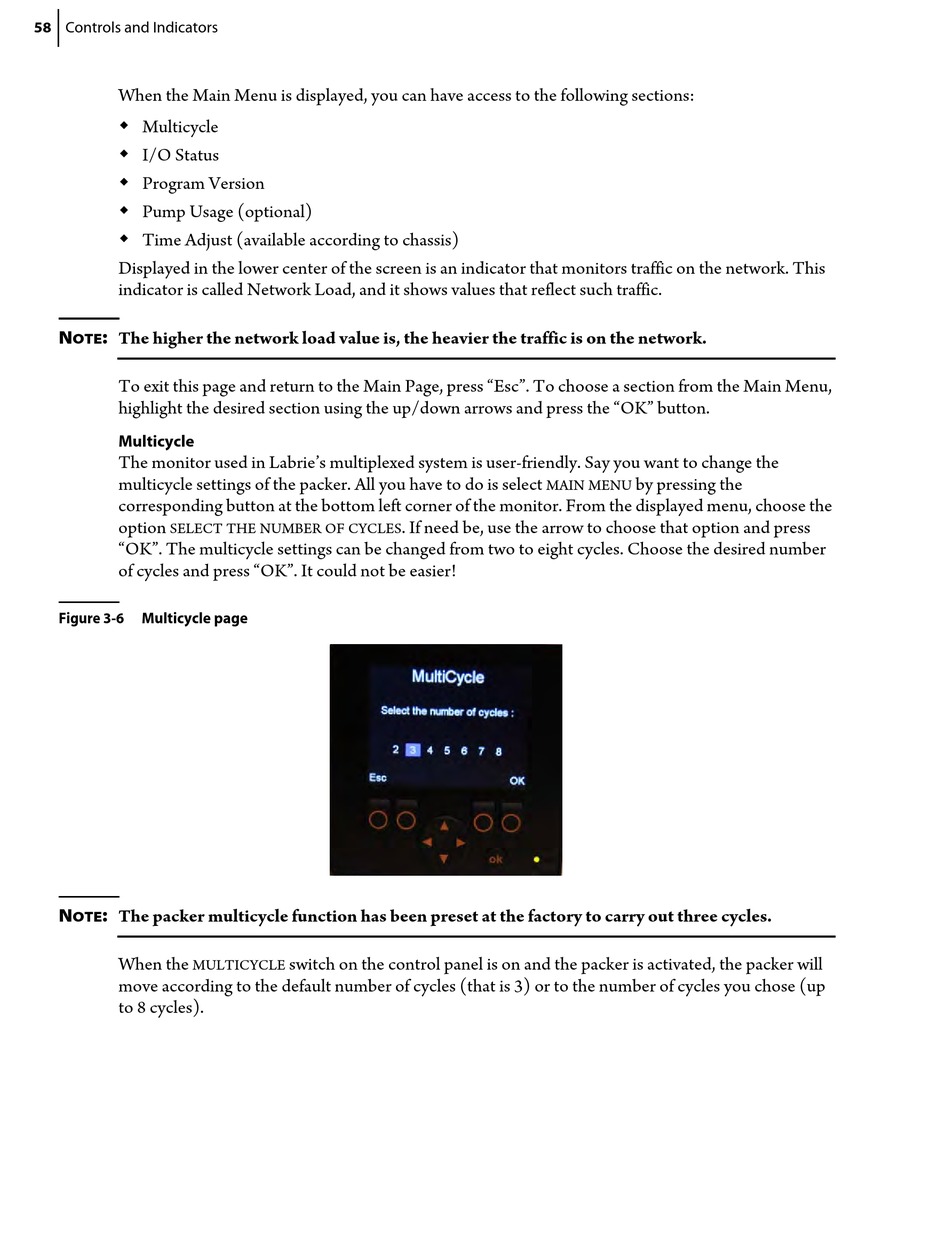

Figure 3-6 Multicycle page
: The packer multicycle function has been preset at the factory to carry out three cycles.
N
OTE
When the
MULTICYCLE
move according to the default number of cycles (that is 3) or to the number of cycles you chose (up
to 8 cycles).
. If need be, use the arrow to choose that option and press
switch on the control panel is on and the packer is activated, the packer will
by pressing the
MAIN MENU
