Table 2 Error messages (cont'd)
Module 50 not Connected
Module 60 is disconnected
Module 60 not Connected
Should the system issue a warning or caution message, it will appear on the Main Page.
For example, if the following caution message "Pump Not Started: Main Air Pressure" is issued by the
system, it will appear on the Main Page of the monitor. An action that could be taken by the operator,
when faced with such a situation, would be to wait until the required main air pressure level is
reached.
For a specific problem or condition that requires special attention, the multiplexed system can alert
the operator to a possible cause, which appears in bold and large print on the monitor screen (active
cause). The operator should check if the problem stems from the highlighted or active cause. One
possible cause is highlighted at a time. What is shown in light and small print in the lower part of the
screen are causes that have already been dealt with (non active causes) [see Figure 3-5].

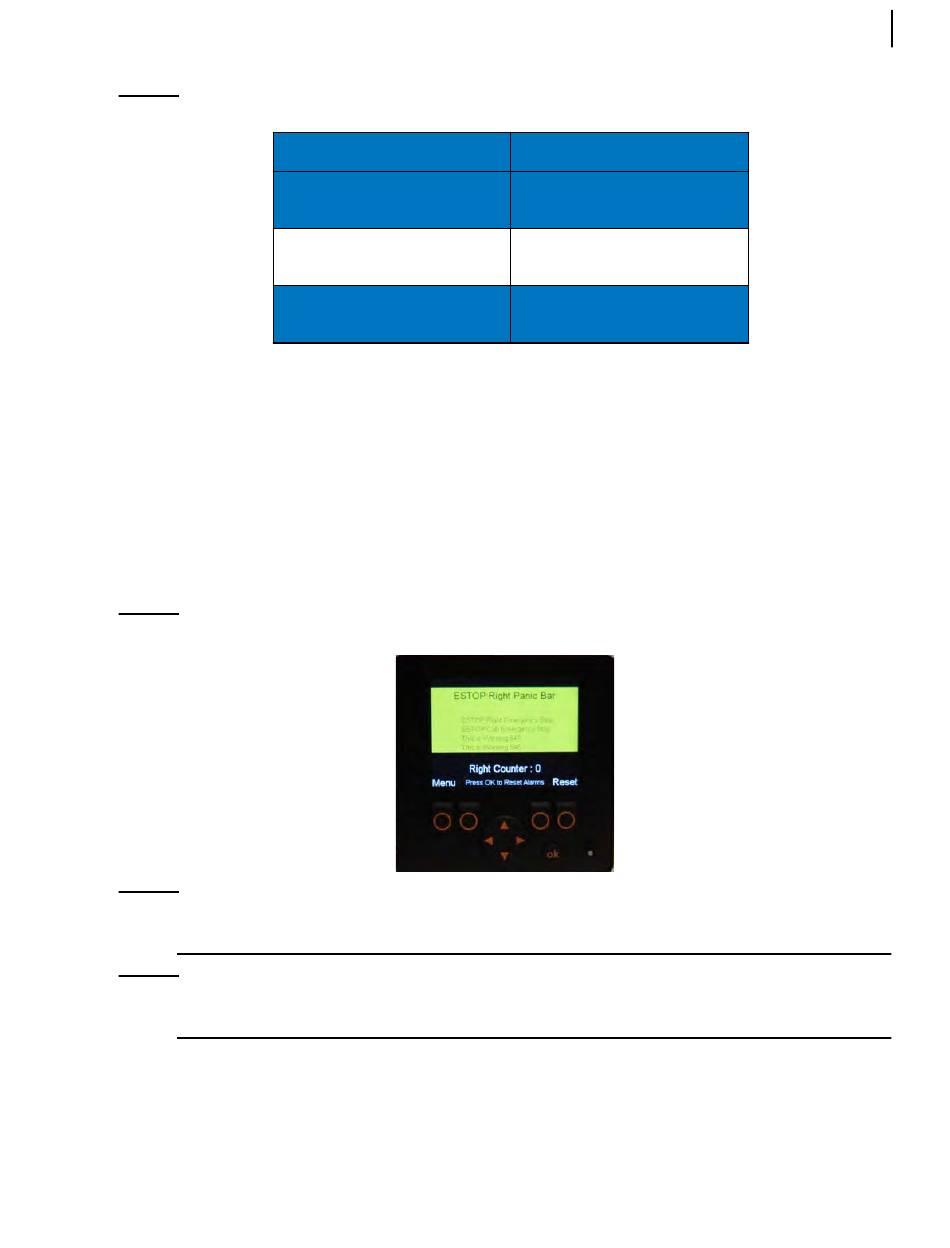

Figure 3-5 Example of a possible cause
: If the system detects a problem, a beep will sound and a message will appear on the monitor
N
OTE
screen.
: To go back to the Main Page or Main Menu, press "Esc" as needed until the desired page is
N
OTE
displayed.

Main Menu

To access the Main Menu, press the far left button when the Main Page is displayed.
Error Messages Solution
Refer to Maintenance
Personnel or LabriePlus
Refer to Maintenance
Personnel or LabriePlus
Refer to Maintenance
Personnel or LabriePlus
Controls and Indicators 57
