Installing your own SIM card and replacing the internal battery

To insert your own SIM card into the FOX3-2G/3G/4G' SIM holder and replace the internal battery by a new
one, follow the steps represented in figure below:

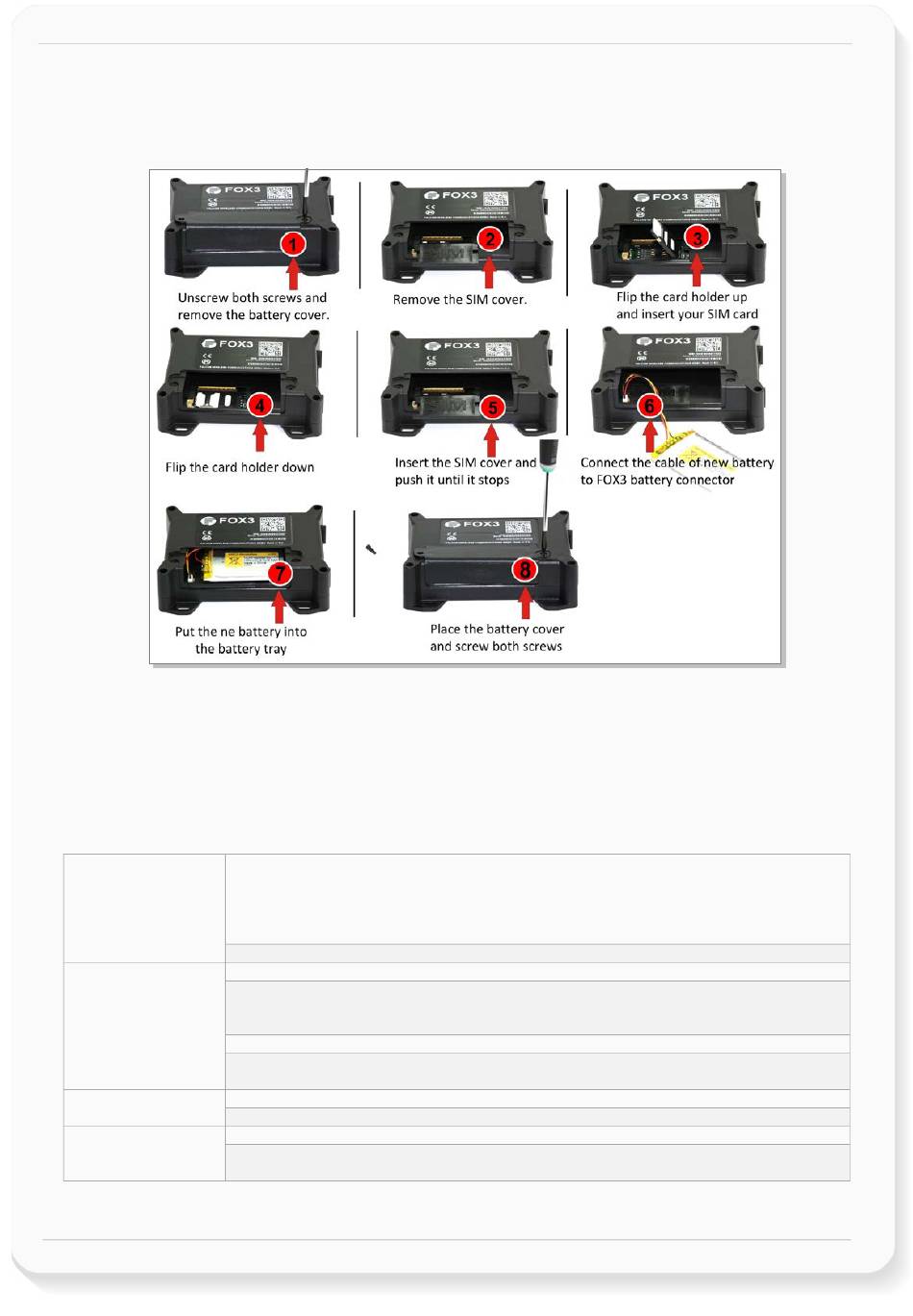

Figure 14:
For more details refer to the Related Documents
When using your own SIM card and another TCP server, the following table shows the basic configuration
settings that should be done in the FOX3 device to register the device in the GSM network and enable
internet connection to your TCP-Server. These configuration settings should be done locally via serial port
connection. After inserting your SIM card and powering up the device, send the following commands
(marked in red) from Workbench
$PFAL,Cnf.Set,GPRS.APN=internet.t-d1.de (enter your provider's APN)
$PFAL,Cnf.Set,GPRS.QOS=3,4,3,0,0
$PFAL,Cnf.Set,GPRS.QOSMIN=0,0,0,0,0
SETUP
$PFAL,Cnf.Set,PPP.USERNAME=t-d1 (if your provider requires)
$PFAL,Cnf.Set,PPP.PASSWORD=gprs (if your provider requires)
$PFAL,Cnf.Set,TCP.CLIENT.CONNECT=1,2222.222.222.222,1111 (enter your IP and Port)
SETUP
$PFAL,CNF.Set,TCP.CLIENT.LOGIN=1
$PFAL,Cnf.Set,GPRS.AUTOSTART=1 (default = 0)
SETUP
Activate GPRS autostart to reconnect automatically when GPRS network connection gets lost.
$PFAL,Cnf.Set,DEVICE.PIN=1111
SETUP
Table 11:
